The DNC-1142 Underwater 3G-SDI and LCS Surface Cable combines live video monitoring and Teradek RT lens-control connectivity in one 100 ft (30 m) underwater-to-surface cable assembly for professional cinema camera systems.

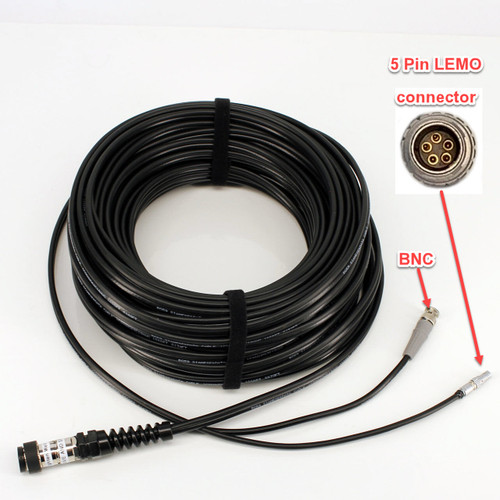

A custom Dive And See waterproof SDI/data connector is installed on the underwater end. At the surface end, the cable separates into a BNC connector for 3G-SDI video and a 5-pin LEMO-compatible connector for a supported Teradek RT controller or receiver. This allows a surface operator to monitor 1080p60 video while controlling compatible focus, iris, and zoom motors on a submerged ARRI ALEXA Mini camera system.
Two functions in one cable
Dedicated 3G-SDI for live 1080p60 video plus a separate LCS control path for compatible Teradek RT lens-control equipment.
Key Features
- Combined SDI and lens control: Carries 3G-SDI video and LCS control signals through one underwater cable assembly.
- 100 ft / 30 m length: Designed for underwater-to-surface cinema and monitoring workflows.
- 1080p60 live video: Supports 3G-SDI video transmission up to 1080p60.
- Teradek RT connectivity: Surface-side 5-pin LEMO-compatible connector for supported Teradek RT control equipment.
- Surface BNC connection: Connects the SDI channel to a compatible monitor, recorder, switcher, converter, or video system.
- Remote lens operation: Supports compatible focus, iris, and zoom control through Teradek RT lens motors and control hardware.
- Waterproof combined connector: Custom Dive And See SDI/data connector on the underwater end.
- Built-in Water Block: Helps protect the housing and maintain vacuum integrity if the external cable is damaged.
- Marine construction: PVC jacket with an 11 mm outer diameter and nickel-plated marine-grade brass waterproof connector components.
- Custom options: Other cable lengths and BNC connector configurations may be available upon request.
How the DNC-1142 Works
- Connect the underwater end to a compatible Dive And See bulkhead connector installed in the camera housing.
- Connect the surface BNC plug to a compatible SDI monitor, recorder, switcher, or converter.
- Connect the surface 5-pin LEMO-compatible plug to the supported Teradek RT control equipment.
- Connect the camera-side control interface and lens motors according to the Teradek and camera-system instructions.
- Verify the SDI image, controller response, motor direction, limits, and waterproof connections before deployment.
Live Video and Lens Control
The DNC-1142 allows the surface operator to monitor the underwater camera image and operate compatible lens motors without opening the housing. The SDI channel delivers the video feed, while the separate control channel carries communication for focus, iris, and zoom operation through the supported Teradek RT system.
Available control functions depend on the camera, controller, receiver, lens motors, motor configuration, camera interface, firmware, and wiring. Confirm the complete equipment chain before ordering.
Teradek RT Controller Integration
The surface-side 5-pin LEMO-compatible connector is intended for a supported Teradek RT lens-control workflow. Teradek RT systems can be used with compatible receivers, controllers, and lens motors to operate focus, iris, and zoom from the surface.
Teradek controllers, receivers, lens motors, camera, lens, underwater housing, monitor, recorder, and power equipment are not included with the standard DNC-1142 cable unless explicitly listed in the selected option.
3G-SDI Video Performance
The SDI channel supports SMPTE 424M 3G-SDI at stated bit rates of 2.970 Gbit/s and 2.970/1.001 Gbit/s, with video formats up to 1080p60. The camera output, bulkhead, cable, BNC interface, monitor, recorder, and all other connected equipment must support the selected SDI format.
Built-In Water Block
The waterproof connector includes a built-in Water Block designed to help maintain vacuum integrity inside a compatible underwater housing. It also helps limit water migration toward the housing if the external cable or connector is damaged.
The Water Block is an additional protective feature and does not replace correct installation, O-ring inspection, connector tightening, strain relief, pressure testing, or routine maintenance.
Technical Specifications
| Model | DNC-1142 |
|---|---|
| Cable type | Underwater 3G-SDI and LCS lens-control combo cable |
| Cable length | 100 ft (30 m) |
| Depth rating | 30 m (100 ft) |
| Underwater end | Dive And See custom waterproof SDI/data connector |
| Surface video connector | BNC for 3G-SDI |
| Surface control connector | 5-pin LEMO-compatible connector for supported Teradek RT equipment |
| Maximum stated video format | 3G-SDI up to 1080p60 |
| SDI standard | SMPTE 424M |
| Supported SDI bit rates | 2.970 Gbit/s and 2.970/1.001 Gbit/s |
| Lens-control functions | Compatible focus, iris, and zoom motor control |
| Cable jacket | PVC |
| Cable outer diameter | 11 mm |
| Waterproof connector material | Nickel-plated marine-grade brass |
| Maximum recommended pulling tension | 400 N |
| Water protection | Built-in Water Block |
| Compatible bulkhead | DNC-2130 |
| Custom options | Custom length and other BNC connector types may be available |
Applications
- Underwater ARRI ALEXA Mini cinema camera systems
- Remote focus, iris, and zoom operation from the surface
- Underwater film, television, and commercial production
- Camera systems deployed from cranes, jibs, gimbals, and stabilizers
- Surface monitoring and recording of submerged 3G-SDI cameras
- Custom underwater housings and professional marine video systems
Compatibility
The DNC-1142 is designed for use with the DNC-2130 underwater Teradek lens-control and 3G-SDI bulkhead connector .
Before ordering, confirm:
- The exact ARRI camera and underwater housing
- The installed bulkhead connector and waterproof connector gender
- The Teradek RT controller or receiver model
- The exact 5-pin connector type, keying, and pinout
- The lens motors and required focus, iris, and zoom functions
- The camera run/stop or auxiliary-control requirements, if applicable
- The SDI output format and connected surface equipment
