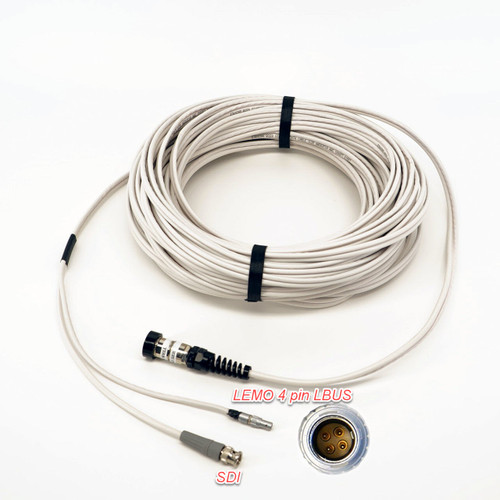

DNC-1147 100ft Underwater SDI-LBUS Surface Cable for ARRI Alexa Mini Lens Control
The DNC-1147 Underwater SDI-LBUS Surface Cable is a solution for combining 3G-SDI video streaming and lens control for the ARRI Alexa Mini camera. With a length of 100 feet, this cable enables seamless communication between underwater housings and surface equipment, making it perfect for setups involving gimbals, cranes, or handheld operation.
Purpose and Use:
This cable allows users to monitor 1080p60 SDI video while remotely controlling the lens functions of the ARRI Alexa Mini, such as focus, iris, and zoom, via the ARRI Hi-5 Hand Unit controller. Its robust build ensures high-performance data transmission and power under demanding conditions, enhancing efficiency in underwater cinematography and production.
Key Features:
- Dual-Function Design: Combines SDI video transmission and LBUS lens control in one cable for streamlined underwater-to-surface setups.
- High-Speed Video Streaming: Supports 3G-SDI SMPTE 424M standards for 1080p60 video at 2.970 Gbit/s.
- Waterproof Build: Equipped with a custom waterproof connector with a built-in water block to maintain vacuum integrity.
- Durable Construction: Features a PVC jacket with a diameter of 11 mm, rated for 400 N pulling tension.
- Connectors: Includes Dive And See SDI/Data custom waterproof connectors, a BNC connector, and a LEMO 4-pin connector for compatibility with ARRI Hi-5 controllers.
- Depth Rating: Operates reliably at depths of up to 30 meters.
Applications:
- Lens Control: Remotely control focus, iris, and zoom of ARRI Alexa Mini cameras using the ARRI Hi-5 Hand Unit or similar controllers.
- SDI Video Monitoring: Stream 1080p60 video from underwater housings to surface monitors for real-time feedback.
- Flexible Cinematic Setups: Ideal for use with cranes, gimbals, and handheld rigs in underwater filming environments.
Specifications:
- Length: 100 ft (30.5 m)
- Depth Rating: 30 meters (98 ft)
- Cable Diameter: 11 mm OD, PVC jacket
- Connectors: Waterproof Dive And See SDI/Data connector, BNC, and LEMO 4-pin
- Pulling Tension: 400 N
- Material: Nickel-plated marine-grade brass waterproof connector
Compatibility:
- Compatible with bulkhead connector DNC-2124 for secure underwater integration.
Options:
- Custom cable lengths and alternative BNC connector types are available upon request.
