DNC-2156

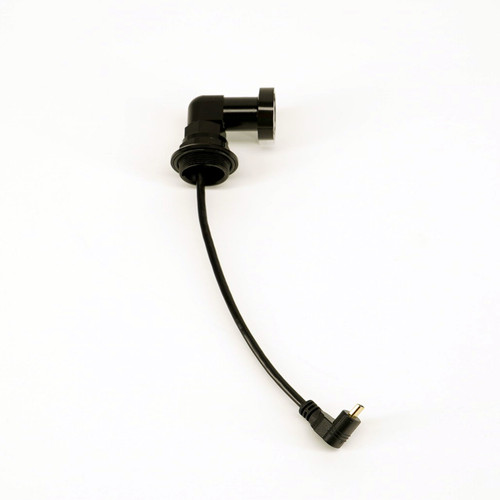

Swivel Bulkhead connector M24 for Nauticam Canon EOS R5 C Underwater Housing NA-R5C, Right Angle Micro HDMI Type D
- DNC-2156 bulkhead connector, compatible with Nauticam NA-R5 C for Canon EOS R5 C Camera
- Type D, Micro HDMI bulkhead connector is designed to transmit 1080p60 signal from the HDMI output of the Canon R5 C
- The connector compatible with all Dive And See HDMI monitors and Live View HDMI cables
- Bulkhead connector have water block, which allows it to keep a vacuum inside of your underwater housing, depth - 240 PSI (160 meters)
- Thread of the connector M24x1
- Contacts: Gold plated, brass
- Protective cap is included
- Custom length and other HDMI connector types are available
Brief Description
We have developed a bulkhead connector Straight style, Angled Type D Micro HDMI connector for Nauticam Underwater Housing Canon EOS R5 C. The Swivel design offers flexibility in installing the bulkhead connector in your housing, allowing you to choose the preferred orientation. Its elbow shape (90 degrees) keeps the external cable horizontal, deviating from the typical vertical connection style. Rotatable portion of the bulkhead connector consists triple o-ring system for reliable sealing
Thread of the connector M24x1.
Custom made, Low profile, Angled Right angle Micro HDMI connector fits tight space of the underwater housing.
Water Block
Underwater Bulkhead connector DNC-2156 comes with the built-in water block.
The water block keeps the vacuum inside of the housing when using the AirLock Vacuum System.
Also protect the housing against penetration of the water, if something happening with external cable or connection between external cable and bulkhead connector.
Options
The custom length of the cable is available.
Outline Drawing
Outline dimensions drawing for Underwater bulkhead connector M24 with Short thread.
