DNC-2134
Bulkhead connector M16 for Ikelite CANON EOS R5 Underwater Housing, Right Angle Micro HDMI Type D
- DNC-2134 bulkhead connector, compatible with Ikelite Underwater Housing for Canon EOS R5 Camera
- Type D, Micro HDMI bulkhead connector is designed to transmit 1080p60 signal from the HDMI output of the Canon R5
- The connector compatible with all Dive And See HDMI monitors and Live View HDMI cables
- Bulkhead connector have water block, which allows it to keep a vacuum inside of your underwater housing, depth - 240 PSI (160 meters)
- Thread of the connector M16x1
- Contacts: Gold plated, brass
- Protective cap and security nut are included
- Custom length and other HDMI connector types are available
- For installation - Micro HDMI connector pass through 16mm opening of your waterproof housing.
Brief Description
We have developed a bulkhead connector Straight style, Type D Micro HDMI connector for Ikelite Underwater Housing Canon EOS R5.
Thread of the connector M16x1.
Custom made, Low profile, Right angle Micro HDMI connector fits tight space of the underwater housing.
Water Block
Underwater Bulkhead connector DNC-2134 comes with the built-in water block.
The water block keeps the vacuum inside of the housing when using the AirLock Vacuum System.
Also protect the housing against penetration of the water, if something happening with external cable or connection between external cable and bulkhead connector.
Options
The custom length of the cable is available.

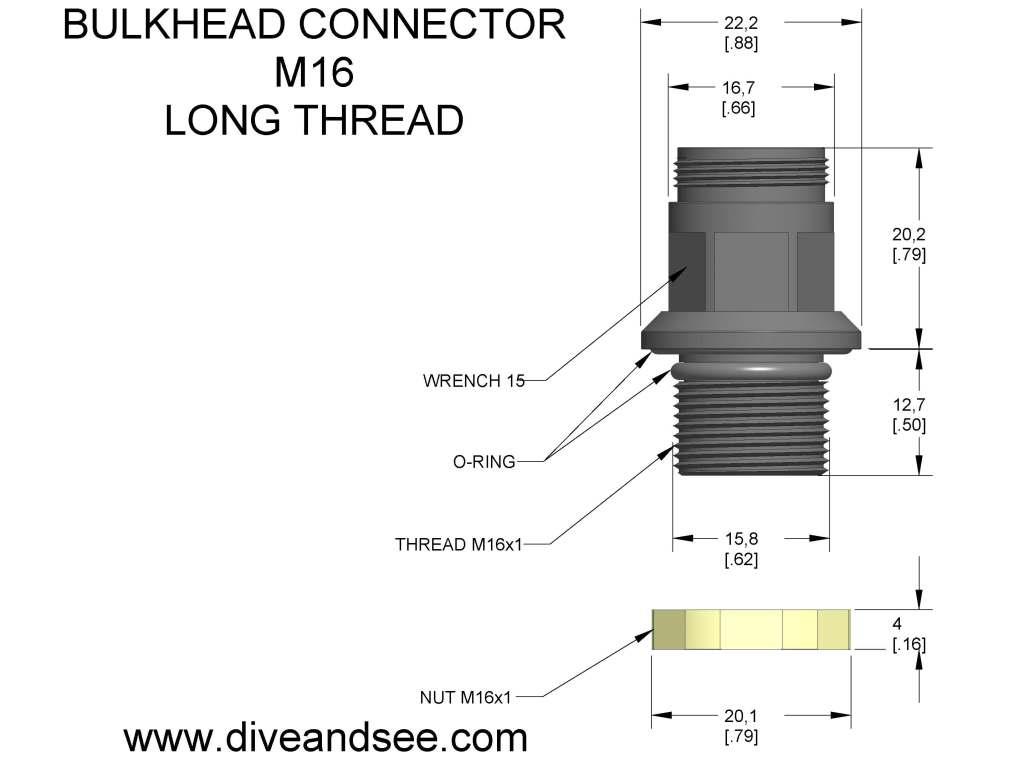

Outline Drawing
Outline dimensions drawing for Underwater bulkhead connector M16 with Long thread.
