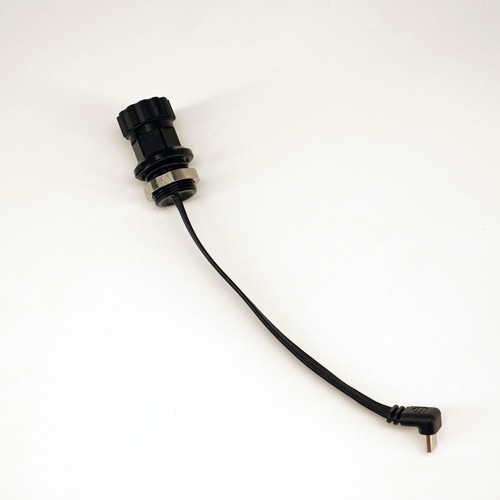

DNC-2199 is a submersible USB-C bulkhead connector with M16x1 long thread, designed for underwater camera housings that require a reliable pass-through connection for high-speed data transfer and power delivery. It is suitable for Ikelite Canon EOS R6 / R6 Mark II housings, as well as selected Aquatica and Aquatech housings with an M16x1 threaded port.
The connector features a low-profile right-angle internal USB-C plug and a 12.7 mm long thread, making it ideal for housings where extra thread length is required. It also includes Water Block protection to help preserve housing vacuum integrity and reduce the risk of water ingress.
What This Product Does
The DNC-2199 underwater USB-C bulkhead connector allows you to pass a USB-C connection through the wall of an underwater housing while keeping the system sealed for underwater use.
This can be used for:
- Camera tethering to a laptop or tablet
- Remote camera triggering
- Image and video file transfer
- Surface-side camera control, depending on the camera and software
- Custom underwater USB-C cable systems
Typical Setup
A common setup looks like this:
- Camera installed inside the underwater housing
- DNC-2199 installed in the housing’s M16x1 port
- Short internal USB-C cable connected from the bulkhead to the camera
- External waterproof USB cable connected outside the housing
- Laptop, tablet, recorder, or control device on the surface side
Example use case: place the camera housing in a river, pool, tank, or shallow marine environment, then control or access the camera remotely from shore or from the surface support position.
Key Features
- USB 3.2 Gen1 Type-C connection
- Supports data transfer speeds up to 5 Gbps
- Reversible USB-C interface for easy connection
- M16x1 long thread design for housings that require extra thread length
- Low-profile right-angle internal USB-C connector for tight housing interiors
- Integrated Water Block for added safety and vacuum system protection
- Marine-grade construction for corrosion resistance and long service life
- Assembled in the USA
Compatibility
DNC-2199 is designed for underwater housings with an M16x1 threaded port, including:
- Ikelite housings for Canon EOS R6
- Ikelite housings for Canon EOS R6 Mark II
- Selected Aquatica housings
- Selected Aquatech housings
- Custom underwater housings with M16x1 threaded openings
The connector can be used with USB-C cameras and devices that support tethering, file transfer, or compatible USB-C communication.
Compatible External Cables
DNC-2199 works with compatible Dive And See underwater USB cables, including DNC-1030, as well as custom waterproof USB-C tether cables made to your required length and connector configuration.
Internal Cable Length
The internal USB-C lead between the bulkhead connector and the camera can be supplied in different lengths depending on the housing layout. Custom internal cable lengths are available on request.
Water Block Protection
The integrated Water Block is designed to help maintain vacuum integrity in housings that use systems such as AirLock or similar vacuum monitoring methods. It adds an extra level of protection if an issue occurs at the external cable connection.
Applications
- Underwater wildlife photography
- Fish and river monitoring
- Aquarium and tank filming
- Scientific and marine research
- Remote camera placement
- Inspection systems
- ROV and custom underwater imaging systems
Specifications
| Product Model | DNC-2199 |
| Connector Type | USB 3.2 Gen1 Type-C |
| Data Transfer Speed | Up to 5 Gbps |
| Bulkhead Thread | M16x1 |
| Thread Length | 12.7 mm (Long Thread) |
| Internal Connector | Right-angle USB-C |
| Protection | Integrated Water Block |
| Material | Marine-grade aluminum and corrosion-resistant components |
| Application | Underwater camera housings |
| Country of Assembly | USA |
Installation
- Install the DNC-2199 bulkhead connector into the housing’s M16x1 port.
- Secure the connector correctly in the housing with the provided nut.
- Connect the internal USB-C lead to the camera inside the housing.
- Connect the external waterproof USB cable on the outside of the housing.
- Test communication and confirm seal integrity before underwater use.
Important Underwater Connection Warning
Before submerging the system underwater, always verify that the external cable coupling nut is fully tightened by hand.
- Do not use pliers or tools
- Make sure the sealing surfaces are clean
- Inspect the connector and O-ring area before every dive
Improper tightening may result in flooding, water intrusion, or equipment damage.
FAQ
What is this connector used for?
It provides a sealed USB-C pass-through connection through an underwater housing.
Can I use it for remote camera control?
Yes, depending on the camera, app, and tethering software being used.
Does it support file transfer?
Yes, it is designed for USB 3.2 Gen1 data transfer up to 5 Gbps.
What housings is it for?
It is intended for housings with an M16x1 port, including Ikelite Canon EOS R6 / R6 Mark II and selected Aquatica and Aquatech housings.
Can I order custom internal cable length?
Yes, custom internal cable lengths and custom cable configurations are available upon request.
Related Products
- DNC-1030 underwater USB cable
- DNC-2059 M16 long thread USB-C bulkhead connector
- Other Dive And See underwater USB, HDMI, and Ethernet bulkhead connectors
Outline Drawing
Outline dimensions drawing for Marine USB-C Bulkhead M16 with long thread.
