DNC-2059: Submersible Bulkhead Connector M16 (Long Thread) for Ikelite, Aquatica, and Aquatech Housings with USB 3.1 Type C
The DNC-2059 bulkhead connector is designed for underwater camera housings, providing a high-speed and robust connection for USB-C devices. This submersible connector ensures seamless data transmission and power delivery, even in demanding underwater environments.
Key Features:
- Reversible USB-C Connector: This connector eliminates concerns about orientation, allowing you to plug it in regardless of which way it is facing.
- High-Speed Data Transfer: USB-C supports data transfer speeds of up to 10Gbps, ensuring fast and reliable data transfer for high-resolution video and large file sizes.
- Power Delivery: Capable of delivering up to 100 watts (3 amps) of power, this connector supports cameras and other devices with substantial power requirements.
- High-Pressure Resistance: Built to withstand underwater conditions, the connector features a water block that keeps the vacuum intact inside your underwater housing.
- Long Thread (12.7mm): Fits M16x1 threaded ports, commonly found in Ikelite, Aquatica, and Aquatech housings.
- Low Profile Design: The right-angle connector ensures it fits snugly within tight spaces of underwater housings.
Water Block Protection:
The DNC-2059 comes with an integrated water block, a crucial feature that maintains a vacuum inside the housing when using the AirLock Vacuum System. This water block also prevents water ingress if issues occur with the external cable or connector.
Compatibility:

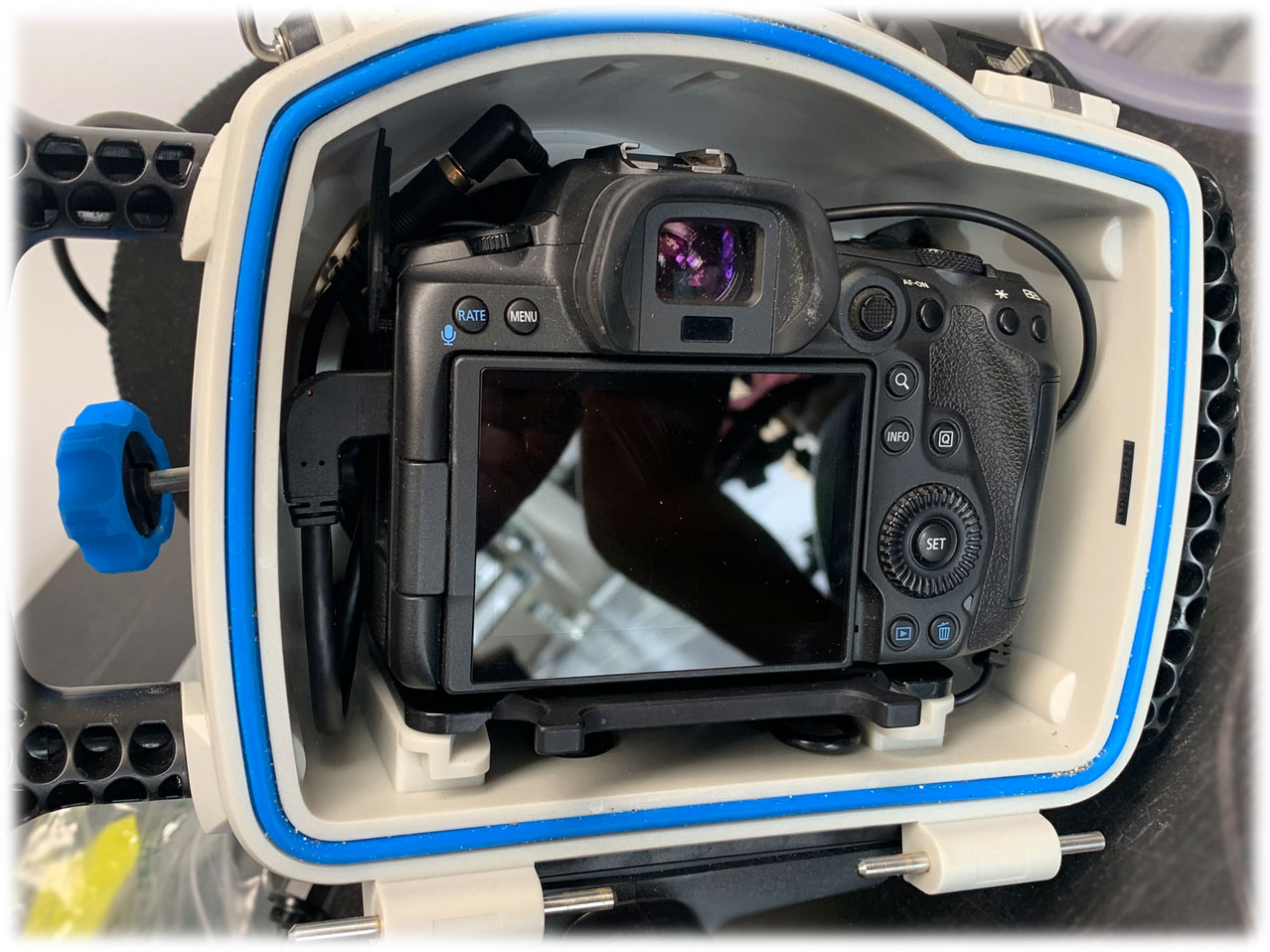

- Universal Compatibility: Compatible with USB-C devices, including popular cameras like the Sony Alpha a7R III, Canon EOS-1D X Mark III, and Canon EOS R5.
- Works with Dive And See Cables: Specifically designed to be compatible with Dive And See USB cables such as the DNC-1030.
Options:
- Custom Lengths: You can request custom cable lengths and connector orientations to suit your specific underwater housing requirements.
Applications:
Ideal for underwater photography, videography, and live video streaming, this USB-C bulkhead connector ensures high-speed data transfer and secure connections in deep-sea environments. It’s perfect for users looking to tether their cameras to surface monitors or recorders for Ultra-HD 4K video resolution.
The DNC-2059 provides professionals with a reliable solution for USB-C connectivity in underwater environments, delivering durability, fast data transfer, and the ability to power connected devices—all while protecting sensitive equipment from water damage.

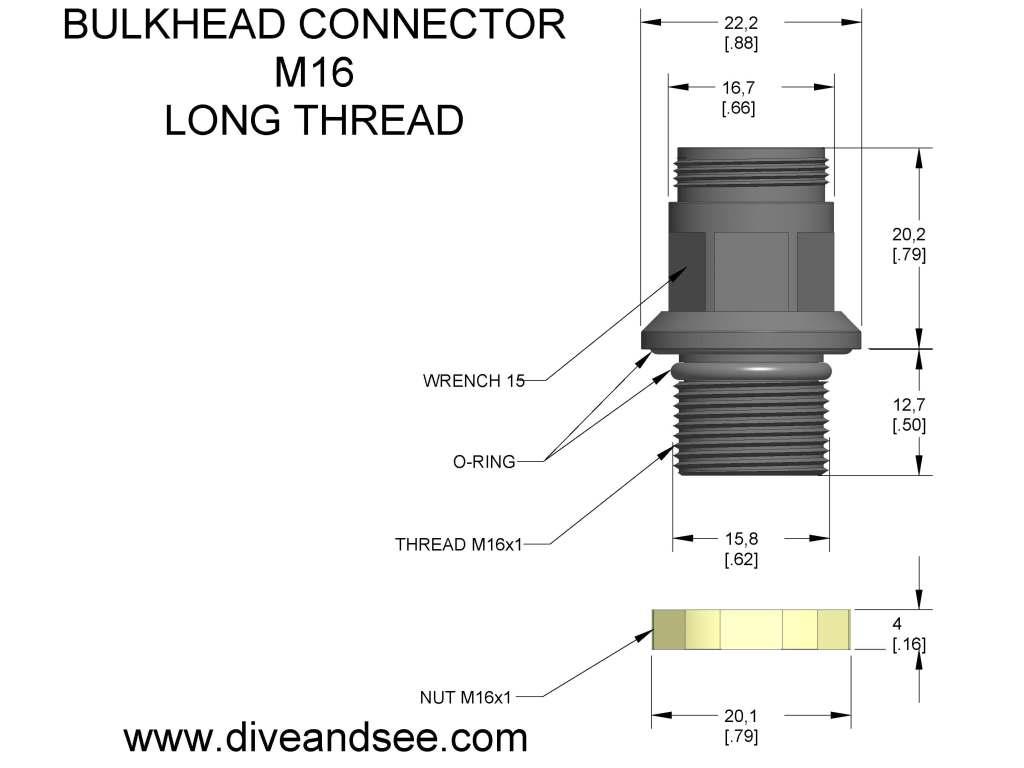

Outline Drawing
Outline dimensions drawing for Marine USB-C Bulkhead M16 with Long thread.
