DNC-2152
HDMI Full size, Elbow style, Swivel Right Angle underwater bulkhead connector M28 for Nauticam Atomos Ninja V Monitor Underwater Housing
- M28 thread, HDMI bulkhead connector
- Underwater full-size Type A (90 degrees), HDMI bulkhead connector is designed to transmit 1080p60 signal and some 4K from the HDMI output of cameras. This DNC-2152 bulkhead connector compatible with Nauticam Atomos Nija V underwater housings
- Bulkhead connector have water block, which is allowing to keep vacuum inside of your underwater housing
- Depth - 240 PSI (160 meters)
- Contacts: Gold plated, brass
- Water Protective cap is included
- Material: Marine Aluminum with Hard Anodizing coating
Brief Description

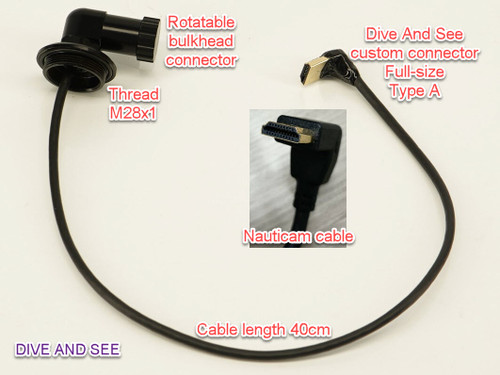

We have developed Elbow style, rotatable bulkhead connector for the Nauticam Atomos Ninja V housing, with full size of HDMI connector.
The new design allows installing the bulkhead connector in available - desirable direction on your housing. Elbow shape (90 degrees) of the connector keeps the external cable horizontally, instead of the standard vertical style of the connection.
Thread of the connector M28x1.
Low profile Right angle HDMI connector fits tight space of the underwater housing.
Rotatable portion of the bulkhead connector consists triple o-ring system for reliable sealing.
Water Block
Uwater Bulkhead connector comes with the built-in water block.
The water block keeps the vacuum inside of the housing when using the AirLock Vacuum System.
Also protect the housing against penetration of the water, if something happening with external cable or connection between external cable and bulkhead connector.
Options
Custom length of the cable and different type of connectors are available.
Compatibility
Cable support XAVC formats:
XAVC 4K
25p 16M 4:2:2 bit
XAVC S HD
25p 16M 4:2:0 bit
XAVC S-I 4K
25p 250M 4:2:2 10 bit
XAVC S-I HD
25p 93M 4:2:2 10 bit
XAVC S-I DCI 4K
24p 240M 4:2:2 10 bit
25p 250M 4:2:2 10 bit
Elbow style bulkhead connector is compatible with any Dive And See waterproof - underwater HDMI cables and HDMI monitors.
Outline Drawing
Outline dimensions drawing for Underwater bulkhead connector M28 with Short thread.
