DNC-2139

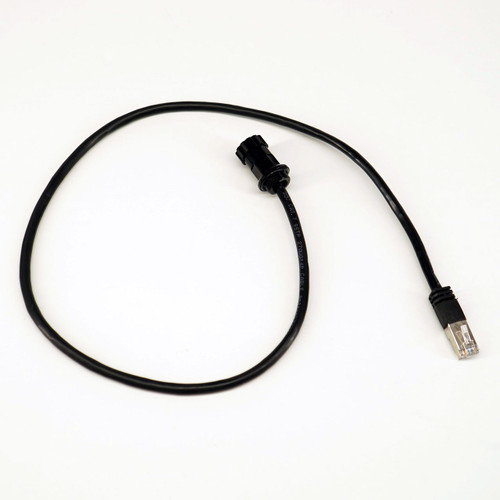

Underwater (UWater) LAN Shielded Ethernet Cat7 bulkhead connector for 16mm port
* This DNC-2140 bulkhead connector is used for facilitating the transmission of LAN Ethernet data at speeds up to 10,000 Mbps (10 Gigabit per second) between underwater systems
* Full remote-control over many settings, when using The FoolControl App
* Material: Marine Aluminum with Hard Anodizing coating
* Bulkhead connector has a water block, which is allowing to keep vacuum inside of your underwater housing
* SHIELDED HIGH SPEED CAT7 CABLE, Stranded T-568B Wiring
* Contacts: Gold plated, brass
* Custom length and other connector types are available
* Depth - 240 PSI (160 meters)
* Compatible with LAN Ethernet Dive And See cables DNC-1044, DNC-1148, DNC-1020, DNC-1101, etc
Brief Description
DNC-2140, is a bulkhead connector, with Ethernet Shielded Cat7 cable and RJ45 connectors ensure universal connectivity, gives you the capability to transmit data at speeds up to10 Gigabit per second from underwater devices and control over Cat7 (Shielded, four twisted pairs Stranded copper) your camera or other electronic devices.
T-568B standard wiring.
Cables made of 100% bare copper wire and 50 micron gold plated shielded RJ45 plug.
Conductor Gauge: 23 AWG
Applications: IP cameras (RS-485), security cameras, when you need send Power Over Ethernet cable; To send LANC commands from your PC to the camera (RS-232 port).
These underwater bulkhead connectors fit into M16x1 threaded port or 0.625" (16mm) hole through.
Bulkhead connector is compatible with any LAN Ethernet Dive And See cables.
Available threads for the bulkhead connector: M16x1 short thread (Nauticam); M16x1 long thread (Aquatica/ Amphibico/Aquatech)
Water Block
Underwater Bulkhead connector comes with the built-in water block.
The water block keeps the vacuum inside of the housing when using the AirLock Vacuum System.
Also protect the housing against penetration of the water, if something happening with external cable or connection between external cable and bulkhead connector.
Options
Custom length of the cable is available.
Compatibility
Bulkhead connector is compatible with LAN Ethernet Dive And See cables DNC-1044, DNC-1148, DNC-1020, DNC-1101, etc
Outline Drawing
Outline dimensions drawing for Underwater bulkhead connector M16 with Short Thread.
