Key Features:

• Live Streaming Capability: Stream live video in real-time from underwater to surface devices for viewing or recording in High Definition 3G-SDI/HDMI at 1080p60.
• Versatile Applications: Perfect for offshore pipeline inspections, construction monitoring, yacht inspections, broadcast applications, and as a fishing camera.
• Single Combo Cable: One waterproof cable provides SDI signal transmission, power, and remote control for up to 100 meters.
• Compatible with Dive Helmets: The DNC-HD8 is compatible with Kirby Morgan dive helmets, making it an ideal solution for deep-sea diving operations.
• Detachable Bulkhead Connector: Designed with a detachable waterproof bulkhead connector for easy setup and transportation.
• Wide Frame Rate Support: Available frame rates include 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98 fps.

High-Quality Imaging & Performance:

• Sony Image Sensor: Built with a 2.5 Megapixel (1/2.86") sensor for 1920x1080@60fps resolution, delivering crisp and clear video, even in low-light conditions.
• Low Light Performance: Exceptional low lux performance (0.005 Lux) ensures high-quality video in dark underwater environments.
• Digital Zoom & Image Stabilization: Featuring 12x digital zoom and image stabilization for capturing detailed footage.

Power & Control:

• Surface Powered: Powered directly from the surface via a 12V to 24V power supply, allowing for continuous operation.
• Remote Control: Full menu control from the surface over the 100m cable, allowing real-time adjustments to settings such as zoom, white balance, exposure, and more.
• HDMI Output via Converter: Easily convert SDI signals to HDMI for viewing on a big screen or recording with the provided SDI to HDMI converter.

• Depth Rating: Designed for 328 ft (100 meters) underwater operation.
• Rugged Construction: The camera housing is made from 304 Stainless steel, ensuring long-lasting durability in harsh marine environments.
• Completely Sealed Housing: The camera is fully sealed to prevent water ingress, making it suitable for both above and below water applications.

Applications:

• Offshore Pipeline & Construction Inspections
• Yacht Hull & Propeller Inspections
• Fishing Camera
• Port Harbor Surveying
• Underwater Security & Monitoring
• Broadcast & Pro AV Production
• Live Streaming (YouTube)

Lens:

• Default Lens: 2.8mm, F2.6 with a 112-degree field of view for a wider perspective.

Power Management & Cable Options:

• Low Power Consumption: With 2.3W power consumption at 12V, this camera is energy efficient, ensuring long-term, stable performance.

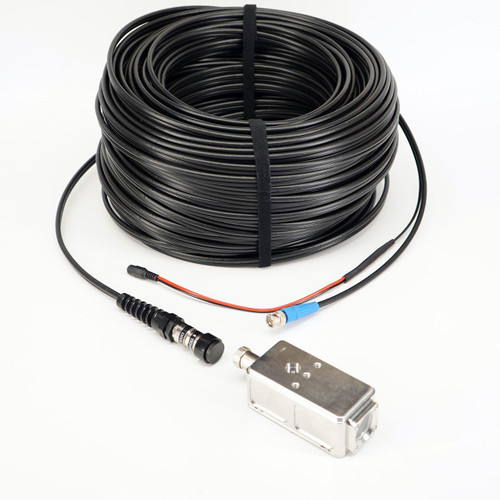

• Cable Options: The DNC-HD8 requires an additional external cable (such as the DNC-1099,) for SDI signal transmission, power, and remote control. Available in custom lengths up to 100 meters.

Warning:

Please ensure that the connector of the external cable is securely tightened to the camera. After tightening, the connection must feel solid as a single unit. When moving the cable, there should be no movement or play in the connector/connection.

Set Includes:

• Sealed housing with 3G-SDI HD camera
• Remote control joystick
• 12V/24V power supply
• SDI to HDMI converter
• HDMI cable
• Mounting screws (1/4-20)
• 1-inch ball mount for flexible positioning

Product Specifications:

• Sensor Type: 1/3" Progressive CMOS
• Resolution: 1920x1080 (Full HD)
• Frame Rates Supported: 50/60fps, 29.97fps, 30fps, and more.
• Weight: 0.65kg
• Dimensions: 156 x 64 x 64 mm
• Depth Rating: 100 meters

The DNC-HD8 offers a comprehensive solution for underwater inspections and live streaming, combining high-definition video, durability, and ease of use in a compact package. Its ability to stream and control from the surface makes it invaluable for underwater professionals, inspectors, and broadcasters.
