The DNC-GP17 Underwater GoPro HDMI Live View System delivers real-time 1080p60 video from an underwater GoPro camera to a surface monitor, recorder, or compatible streaming device.
The system combines a marine-grade aluminum underwater housing, a permanently attached 45 m (147 ft) HDMI cable, a permanently attached 45 m (147 ft) power cable, and a detachable underwater LED video light. Surface power allows extended operation without relying only on the GoPro's internal battery.
GoPro camera and Media Mod are not included.
The iPhone live-streaming adapter, Sony NP-F battery, tray, pole mount, macro lens, and lens filters are optional accessories unless selected separately when ordering.
Key Features
- Live underwater video: Delivers up to 1080p60 HDMI video to the surface for real-time viewing, recording, or streaming.
- 45 m HDMI cable: Permanently attached underwater HDMI cable with a standard full-size HDMI Type A connector at the surface end.
- 45 m surface-power cable: Provides continuous power to the GoPro from a compatible surface power source.
- 100 m housing depth rating: Marine-grade aluminum housing with hard-anodized coating and a dual O-ring seal.
- Underwater LED light: Detachable rechargeable video light with a wide beam and multiple operating modes.
- Reverse-polarity protection: Helps protect the power system against an incorrectly connected DC power source.
- Multiple mounting points: Integrated 1/4"-20 threaded holes on the top and bottom of the housing.
Designed for Real-Time Underwater Monitoring
The DNC-GP17 is designed for applications where operators need to see the underwater image in real time. Connect the surface HDMI Type A connector to a compatible monitor, recorder, video capture device, or streaming system.
Common applications include:
- Boat hull, propeller, and dock inspections
- Commercial and general underwater inspections
- Swimming pool filming and competition monitoring
- Aquarium and aquaculture observation
- Marine research and underwater documentation
- Underwater live streaming and surface recording
- Drop-camera and remote-monitoring applications
GoPro Compatibility
The housing is available for the following GoPro camera models:
- GoPro HERO13 Black
- GoPro HERO12 Black
- GoPro HERO11 Black
- GoPro HERO10 Black
- GoPro HERO9 Black
- GoPro HERO8 Black with the required HERO8 configuration
The standard configuration is supplied for the camera model selected when ordering. Please select or specify your exact GoPro model before completing the order.
HERO8 notice: The HERO8 configuration requires additional components and an additional $26 charge. These components are not sold separately.

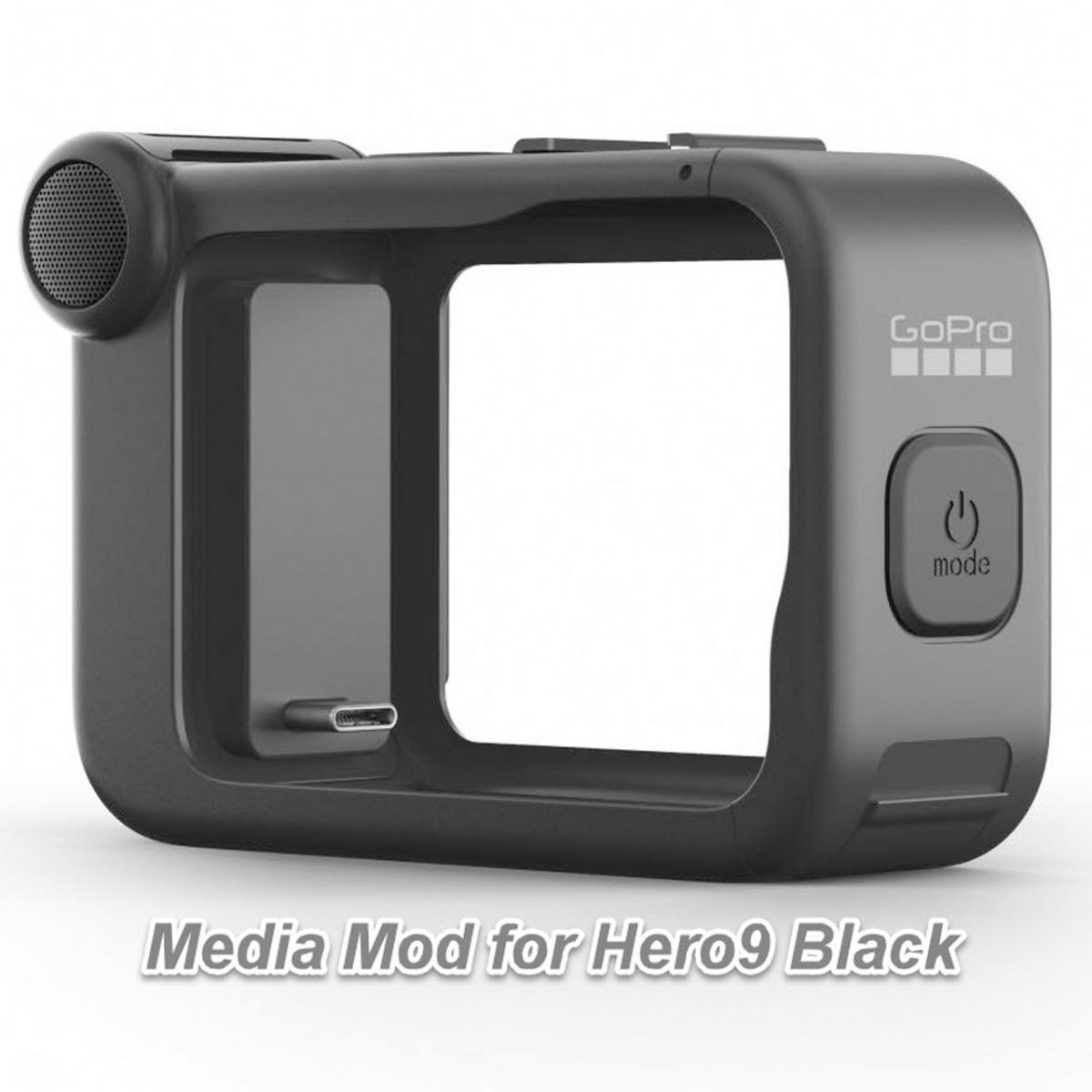

Media Mod Required
A compatible GoPro Media Mod is required to provide the HDMI output used by the DNC-GP17. The GoPro camera and Media Mod are not included with the standard system.
Before ordering, confirm that a compatible Media Mod is available for your selected GoPro model.
HDMI Live View and Internal Recording
The DNC-GP17 provides a live HDMI signal to the surface at up to 1080p60. This live output can be viewed on a compatible HDMI display or sent to a recorder, capture device, or streaming system.
The GoPro can also record video to its internal memory card. Available internal recording resolutions and frame rates depend on the installed GoPro model, camera settings, firmware, and operating conditions. Internal recording resolution should not be confused with the 1080p60 surface HDMI output.
System Connection
- Install the selected GoPro camera and compatible Media Mod in the housing.
- Connect the internal HDMI and power connections.
- Close and seal the housing according to the operating instructions.
- Connect the surface HDMI Type A plug to a monitor, recorder, or capture device.
- Connect the power cable to the included power supply or another compatible DC source.
- Verify the live image and all seals before placing the system underwater.
What Is Included
- DNC-GP17 marine-grade aluminum underwater housing configured for the selected GoPro model
- Permanently attached 45 m (147 ft) underwater HDMI cable with full-size HDMI Type A surface connector
- Permanently attached 45 m (147 ft) external power cable
- Standard female 2.1 mm × 5.5 mm DC barrel connector at the surface end
- Universal 12V AC power supply for 100–240V input
- Battery plate for a Sony L-Series NP-F970-type battery
- Rechargeable underwater LED video light
- USB charging cable for the LED light
Not included:
- GoPro camera
- GoPro Media Mod
- Sony NP-F battery
- iPhone HDMI adapter, unless selected separately
- External monitor, recorder, or capture device
Technical Specifications
| Model | DNC-GP17 |
|---|---|
| Live HDMI output | Up to 1080p60 |
| HDMI cable | 45 m (147 ft), permanently attached |
| Surface HDMI connector | Full-size HDMI Type A |
| Power cable | 45 m (147 ft), permanently attached |
| Power connector | Female 2.1 mm × 5.5 mm DC barrel connector |
| Compatible external power | 7.4–24V DC, minimum 0.8A |
| Included power supply | 12V DC universal power supply, 100–240V AC input |
| Housing depth rating | 100 m (328 ft) |
| Maximum deployment depth with supplied cables | Up to 45 m (147 ft), subject to installation conditions |
| Housing material | Marine-grade aluminum with hard-anodized coating |
| Housing seal | Dual O-ring |
| Mounting points | 1/4"-20 threaded holes on top and bottom |
| Assembly | Custom made and assembled in the USA |
Underwater LED Video Light
- Maximum output: 400 lumens
- Color temperature: 6000K
- Wide-angle beam without a concentrated hot spot
- Two brightness settings and one SOS mode
- Rechargeable built-in battery
- USB charging cable included
- Light depth rating: 45 m (147 ft)
- Quickly detachable from the housing setup
LED runtime depends on the selected brightness mode, battery condition, charging state, and water temperature.
iPhone Monitoring and Live Streaming
An optional compatible HDMI-to-iPhone adapter can turn an iPhone or iPad into a surface monitor, recorder, and streaming device. Depending on the selected adapter and mobile device, the setup may support:
- Real-time monitoring of the GoPro HDMI image
- H.264 recording to a compatible iPhone or iPad
- Streaming through a cellular or Wi-Fi connection
- Connection to supported social and streaming platforms
The iPhone adapter is optional and is not included with the standard DNC-GP17 system. Confirm connector and device compatibility before ordering, particularly for Lightning and USB-C iPhone models.
Optional Accessories
- iPhone HDMI monitoring and live-streaming adapter
- Sony L-Series NP-F970-type battery
- Underwater housing tray
- Pole and tube mount
- 15× macro close-up lens for supported GoPro models
- ND8, ND16, ND32, and CPL filters for supported GoPro models
- External HDMI monitor, recorder, or capture device
Mounting
The DNC-GP17 housing includes 1/4"-20 threaded mounting points on the top and bottom. These mounting points can be used with a compatible tray, support structure, telescopic pole mount, or other application-specific hardware.
Outline Dimensions
Dimensions in the drawing are shown in inches.
Frequently Asked Questions
Does the DNC-GP17 include a GoPro camera?
No. The GoPro camera must be purchased separately.
Is the GoPro Media Mod included?
No. A compatible GoPro Media Mod is required for HDMI output but is not included with the standard DNC-GP17 system.
Does the system output 5K video through HDMI?
No. The live surface HDMI output is up to 1080p60. Higher-resolution recording may be available internally on the GoPro memory card depending on the installed camera model and settings.
Can the GoPro operate continuously?
The included 45 m power cable supplies power from the surface, allowing extended operation without relying only on the GoPro's internal battery. Actual operating time depends on the camera, power source, settings, temperature, and recording conditions.
Can I connect the system directly to a television or monitor?
Yes. The surface end of the HDMI cable uses a standard full-size HDMI Type A connector. The connected display or recorder must support the GoPro's HDMI output format.
Can I stream directly to an iPhone?
An additional compatible HDMI capture or iPhone monitoring adapter is required. The adapter is optional and is not included with the standard system.
Can the system be used at a depth of 100 meters?
The housing is rated to 100 m (328 ft), but the supplied HDMI and power cables are 45 m (147 ft) long and the included LED light is rated to 45 m. Therefore, the standard complete configuration is intended for deployments up to 45 m.
Important Before Underwater Use
- Select the correct housing configuration for your GoPro model.
- Confirm that the GoPro and Media Mod operate correctly before installation.
- Inspect and clean both O-rings before every deployment.
- Confirm that the housing is fully closed and correctly sealed.
- Test the live HDMI image and surface power before entering the water.
- Secure both surface cables to prevent excessive pulling on the housing.
- Do not exceed the rating of the lowest-rated component in the complete setup.
Ordering notice: Please specify the exact GoPro model you intend to use. The housing is configured for the selected camera before shipment.
