DNC-1033: Waterproof SDI Coaxial Cable – up to 10m with Underwater Male Connectors
Key Features:
- Supports HD-SDI 4.5 GHz Signal: The DNC-1033 is designed to ensure the perfect transfer of HD-SDI 4.5 GHz signals, supporting 3G-SDI for high-definition video applications.
- Impedance: 75 ohm with a frequency rating of 4.5 MHz and an attenuation of 24.8 dB per 100 feet, ensuring minimal signal loss over long distances.
- Pull Strength: The cable is rated for a maximum recommended pulling tension of 400 N, ensuring durability during installation and use.
- Durable Construction: Built with a robust PVC jacket (6.5mm OD) for flexibility and protection in underwater environments. The connectors are made from nickel-plated marine-grade brass to resist corrosion in marine applications.
- Depth Rating: The cable is designed to perform at depths of up to 100 meters, making it ideal for underwater broadcast, security, and professional AV setups.
- Strain Relief: The strain relief design prevents cable cracking or breaking, allowing for longer life in demanding conditions.
Overview:

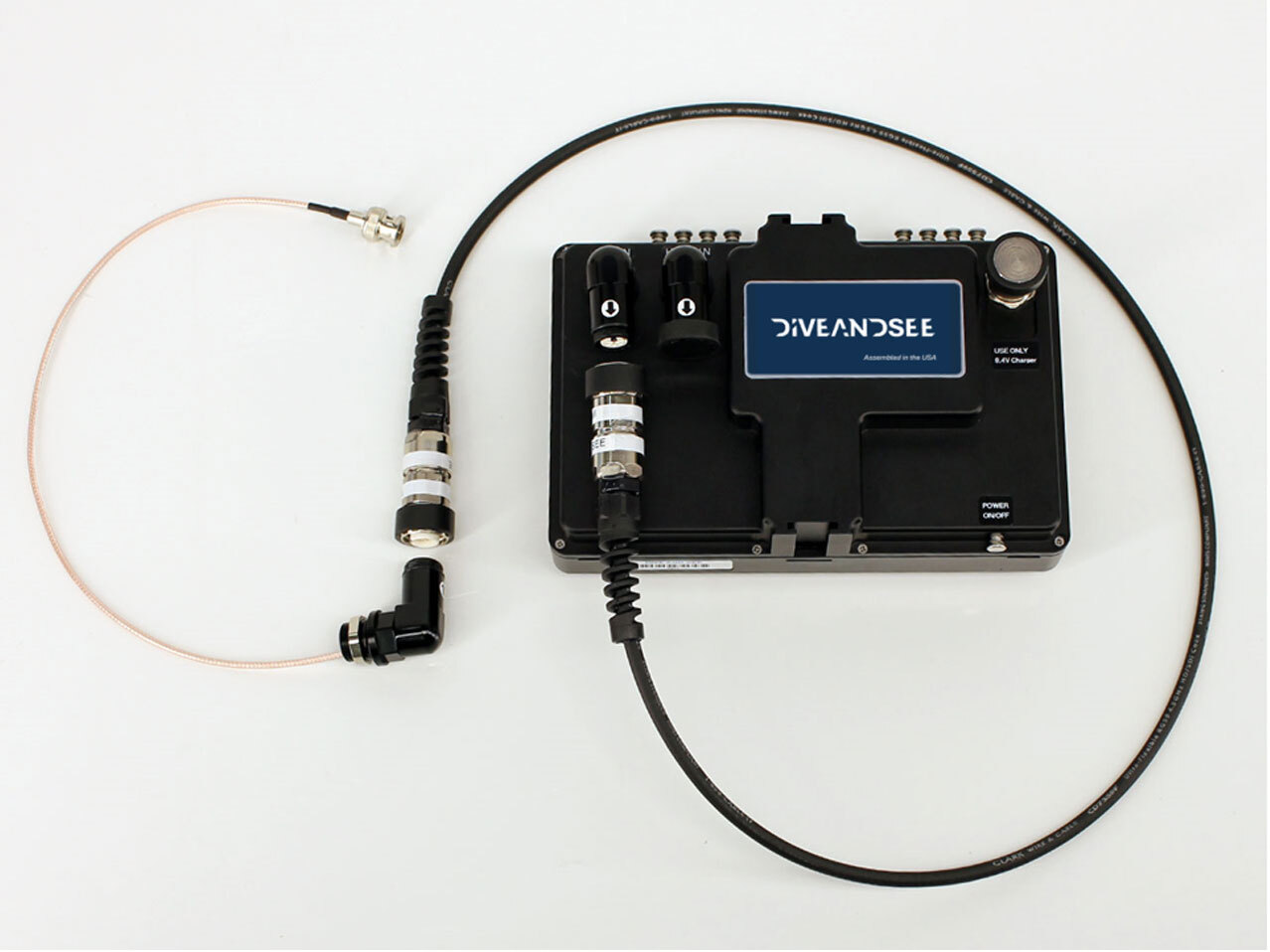

The DNC-1033 Waterproof SDI Coaxial Cable is a premium solution for underwater HD video transmission, suitable for broadcasting, security, and professional audio-video applications. Equipped with Dive And See waterproof connectors on both ends, the cable ensures a reliable and robust connection in harsh underwater environments.
This RG6 coaxial cable supports 3G-SDI for seamless transmission of high-definition video, making it perfect for standard SDI or high-resolution video applications. The dual braid shields offer additional protection against signal interference, ensuring clear and uninterrupted video transmission.
Cable Specifications:
- Length: 10 meters (custom lengths available)
- Signal Support: HD-SDI, 4.5 GHz, 3G-SDI
- Impedance: 75 ohms
- Attenuation: 24.8 dB per 100 feet
- Outer Diameter: 6.5mm PVC jacket for flexibility and durability
- Connector Material: Nickel-plated marine-grade brass
- Maximum Pulling Strength: 400 N
- Depth Rating: 100 meters
Applications:
- Underwater HD Video Transmission: Perfect for broadcasting high-definition SDI signals for underwater filming projects.
- Security Systems: Ideal for use with waterproof CCTV security cameras in underwater surveillance systems.
- CCTV and HD-SDI Cameras: Compatible with high-resolution video setups in security and monitoring systems.
- Professional Audio-Visual Use: Suited for transmitting SDI video in professional AV environments, both above and below water.
Compatibility:

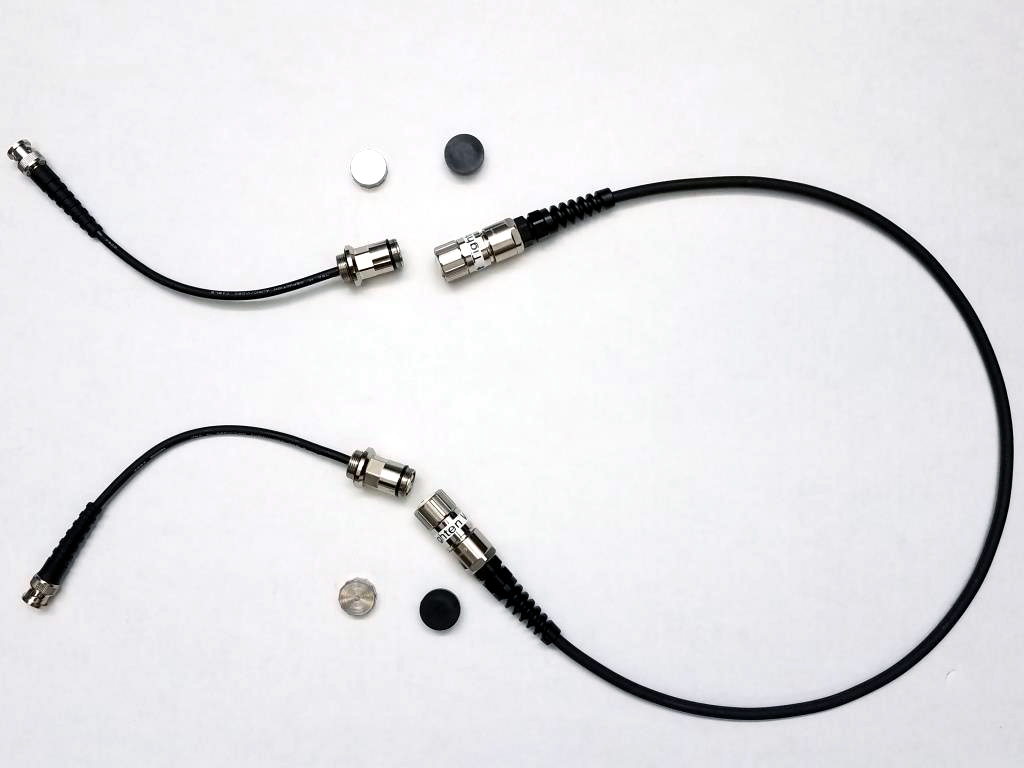

- The DNC-1033 works seamlessly with Dive And See bulkhead connectors, including models DNC-2076, DNC-2155, DNC-2085, DNC-2125, DNC-2030, DNC-2036 (bulkhead connectors sold separately).
Customization Options:
- Custom Lengths Available: The cable can be ordered in custom lengths to meet specific underwater video production needs.
