DNC-2076 Underwater 3G-SDI Bulkhead Connector
Professional Waterproof M16 Long Thread 3G-SDI Bulkhead Connector for Underwater HD Video Transmission Systems
The DNC-2076 is a professional underwater 3G-SDI bulkhead connector designed for transmitting stable 1080p60 HD video signals through underwater housings and professional marine video systems.
Built for underwater broadcast, cinematography, telemetry, inspection, and scientific applications, the DNC-2076 provides reliable long-distance SDI signal transmission using a professional waterproof bulkhead design with locking SDI connectivity.
The connector features an M16x1 long thread configuration compatible with underwater housings from manufacturers such as Salty, Aquatica, and Aquatech.
Why Choose 3G-SDI Underwater?
Unlike HDMI systems, 3G-SDI technology is designed for professional long-distance video transmission with improved signal stability, secure locking BNC connectors, lower signal loss, and higher reliability in demanding underwater environments.

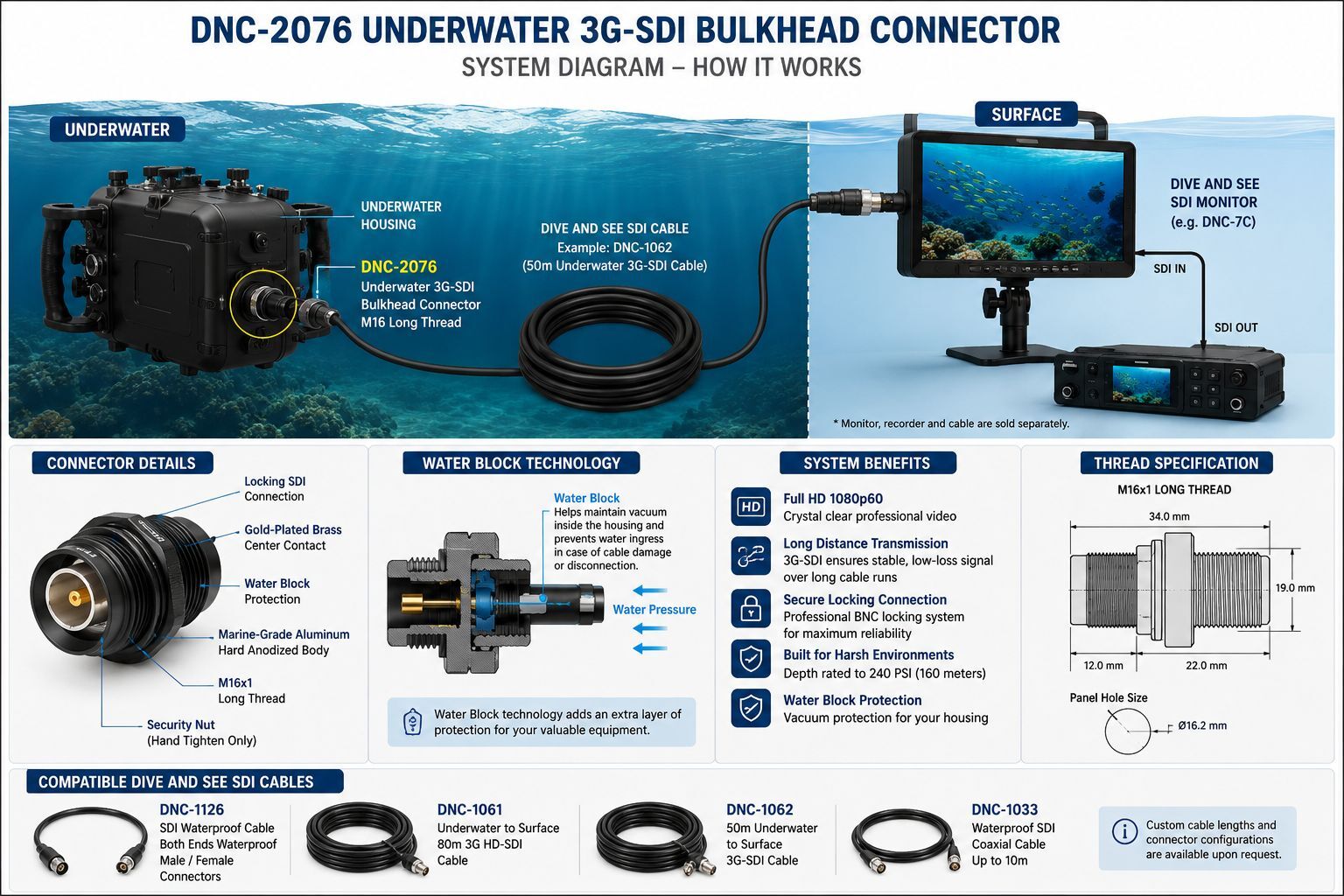

Diagram A — How It Works
The DNC-2076 bulkhead connector creates a waterproof SDI pass-through from an underwater camera housing to a Dive And See SDI cable such as DNC-1062, allowing 1080p60 HD video to reach surface monitors, recorders, and broadcast equipment.
Key Features
- Professional underwater 3G-SDI bulkhead connector
- Supports 1080p60 Full HD video transmission
- M16x1 long thread design for secure installation
- Professional locking SDI connection for stable signal transmission
- Built-in Water Block technology for vacuum protection
- Marine-grade aluminum body with hard anodized coating
- Gold-plated brass contacts for reliable conductivity
- Designed for underwater broadcast, cinematography, inspection, and ROV systems
- Compatible with Dive And See SDI cables and monitors
Technical Specifications
| Product Type | Underwater 3G-SDI Bulkhead Connector |
| Video Standard | 3G-SDI |
| Supported Resolution | 1080p60 Full HD |
| Thread Type | M16x1 Long Thread |
| Depth Rating | 240 PSI (160 meters) |
| Body Material | Marine-grade aluminum with hard anodized coating |
| Contacts | Gold-plated brass |
| Water Block | Built-in Water Block vacuum protection system |
| Connector Type | Professional locking SDI connection |
Compatible Dive And See SDI Cables
The DNC-2076 bulkhead connector is compatible with multiple Dive And See underwater SDI cables designed for professional underwater video transmission systems.
- DNC-1126 — Waterproof SDI coaxial extension cable with underwater male/female waterproof connectors
- DNC-1061 — Underwater to Surface 80m 3G HD-SDI cable
- DNC-1062 — 50m Underwater to Surface 3G-SDI cable
- DNC-1033 — Waterproof SDI coaxial cable with underwater male connectors
Water Block Technology
The DNC-2076 includes Dive And See Water Block technology designed to help maintain vacuum integrity inside underwater housings. This additional protection helps reduce the risk of water ingress in the event of external cable damage or accidental disconnection.

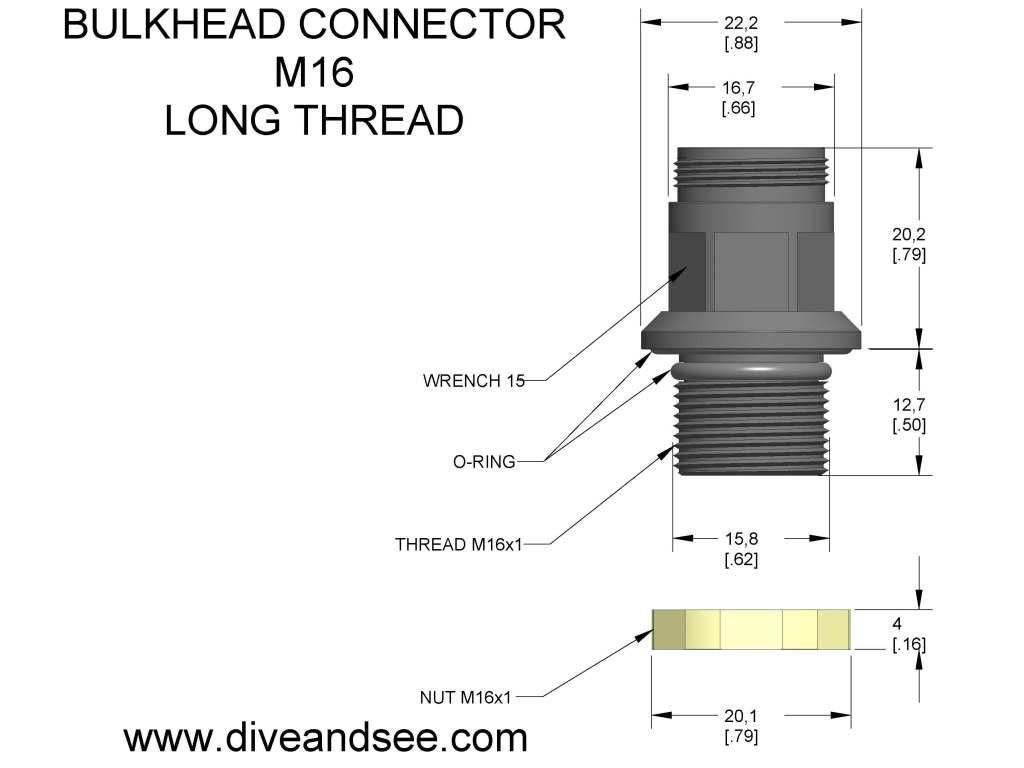

Outline Drawing
Outline dimensions drawing for the DNC-2076 underwater 3G-SDI bulkhead connector with M16 long thread.
Custom Options
Custom connector configurations, cable assemblies, and underwater SDI system integrations are available upon request for underwater broadcast systems, marine inspection systems, ROV platforms, and underwater cinematography applications.
Important Tightening Warning
Before underwater use, verify that the waterproof connector coupling nut is fully tightened by hand. Do not use pliers or excessive force. Improper tightening may result in flooding or damage to connected equipment.
Applications
- Professional underwater HD video transmission
- Underwater broadcast and cinematography systems
- ROV and telemetry systems
- Marine inspection and offshore operations
- Scientific underwater research systems
- Underwater monitoring and recording systems
- Commercial diving operations
- Surface monitoring systems using SDI infrastructure
Compatible Equipment
- Underwater SDI camera systems
- Dive And See SDI monitors
- SDI recorders and converters
- Professional underwater housings with M16 ports
- Broadcast video transmission systems
- Underwater inspection and telemetry systems
Frequently Asked Questions
Why use 3G-SDI instead of HDMI underwater?
3G-SDI technology is designed for professional long-distance video transmission and offers better signal stability, secure locking connectors, and improved reliability compared to HDMI systems in underwater environments.
Does the DNC-2076 support 1080p60 video?
Yes. The DNC-2076 supports stable 1080p60 Full HD video transmission using the 3G-SDI standard.
What housings are compatible with the DNC-2076?
The connector is compatible with many underwater housings using M16 ports, including selected models from Salty, Aquatica, and Aquatech.
What cables work with the DNC-2076?
The DNC-2076 is compatible with Dive And See SDI cables including DNC-1126, DNC-1061, DNC-1062, and DNC-1033.
What is Water Block technology?
Water Block technology helps maintain vacuum integrity inside the housing and provides additional protection against water intrusion if the external cable becomes damaged or disconnected.
Can custom SDI system configurations be built?
Yes. Dive And See can build custom underwater SDI cable systems, connectors, and monitoring configurations for professional underwater applications.
