underwater M16 SDI bulkhead connector, 90 degree, swivel,  Nauticam RAPTOR V-RAPTOR 8K VV

SDI, Swivel, 90 degrees underwater bulkhead connector M16, Red V-Raptor Nauticam

$395.00
SKU:
DNC-2085
Availability:
For international shipping please contact us. Lead time 6-8 days after payment

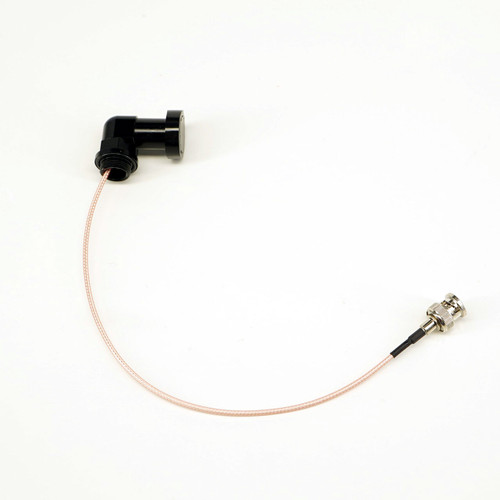

DNC-2085: SDI Elbow Style, Swivel Right Angle Underwater Bulkhead Connector (M16) Red V-Raptor Nauticam

Key Features:

  • 3G-SDI Signal Transmission: The DNC-2085 bulkhead connector is engineered for transmitting high-definition 3G-SDI video signals (1080p60), making it ideal for broadcast-quality underwater video production.
  • Elbow Style Design: This right-angle, rotatable connector features an elbow design that maintains a horizontal cable alignment, saving space outside underwater housings compared to traditional vertical connectors.
  • M16x1 Thread Compatibility: Fits into M16x1 threaded ports (16mm diameter), providing a secure and reliable connection for underwater systems.
  • Gold-Plated Contacts: Equipped with gold-plated brass contacts, the DNC-2085 ensures consistent signal quality and superior conductivity, even in demanding environments.
  • Marine-Grade Durability: Constructed from marine-grade aluminum with a hard coat anodization, this bulkhead connector offers excellent resistance to corrosion in underwater environments.
  • Water Block System: Includes a built-in water block that maintains the vacuum inside the housing, offering additional protection against water ingress during underwater shoots.
  • Depth Rating: Rated for depths of up to 160 meters (240 PSI), this connector is suitable for deep-sea filming applications.

Overview:

The DNC-2085 SDI Bulkhead Connector is a professional-grade underwater connector designed to transmit high-definition SDI signals (3G-SDI 1080p60). With its elbow-style and swivel right-angle design, this connector helps save space outside Nauticam underwater housings while ensuring a reliable and secure connection for video equipment such as broadcast cameras, telemetry systems, and high-speed cameras.

The connector's M16x1 thread ensures it can be installed in a variety of housings, while the triple O-ring sealing system guarantees that the connection remains waterproof and secure. The built-in water block helps maintain the vacuum inside your housing, protecting your equipment from potential water ingress.

Applications:

  • Underwater Cinematography: Ideal for professional underwater filmmakers using cameras that require 3G-SDI signal transmission, such as the RED V-RAPTOR 8K VV.
  • Broadcast Quality Video: Perfect for high-definition underwater video production, allowing seamless transmission of 1080p60 video signals.
  • Remote Monitoring Systems: Supports use in underwater telemetry systems and high-speed cameras where reliable video transmission is crucial.

Specifications:

  • Connector Type: Full-size BNC connector
  • Signal Support: 3G-SDI 1080p60
  • Thread Size: M16x1
  • Depth Rating: Operates at depths of up to 160 meters (240 PSI)
  • Connector Material: Marine-grade aluminum with hard anodization
  • Contacts Material: Gold-plated brass for superior signal quality

Water Block System:

The DNC-2085 features a built-in water block that keeps the vacuum inside underwater housings intact, ensuring safe operation even in deep-sea environments.

Compatibility:

  • Dive And See SDI Cables and Monitors: Compatible with Dive And See waterproof SDI cables and SDI monitors, making it a versatile solution for underwater video systems.
  • Nauticam Housings: Suitable for use with Nauticam RAPTOR V-RAPTOR 8K VV and other housings requiring M16x1 thread connectors.
  • Customizable Options: Custom cable lengths and additional connector types are available upon request to suit different setup requirements.

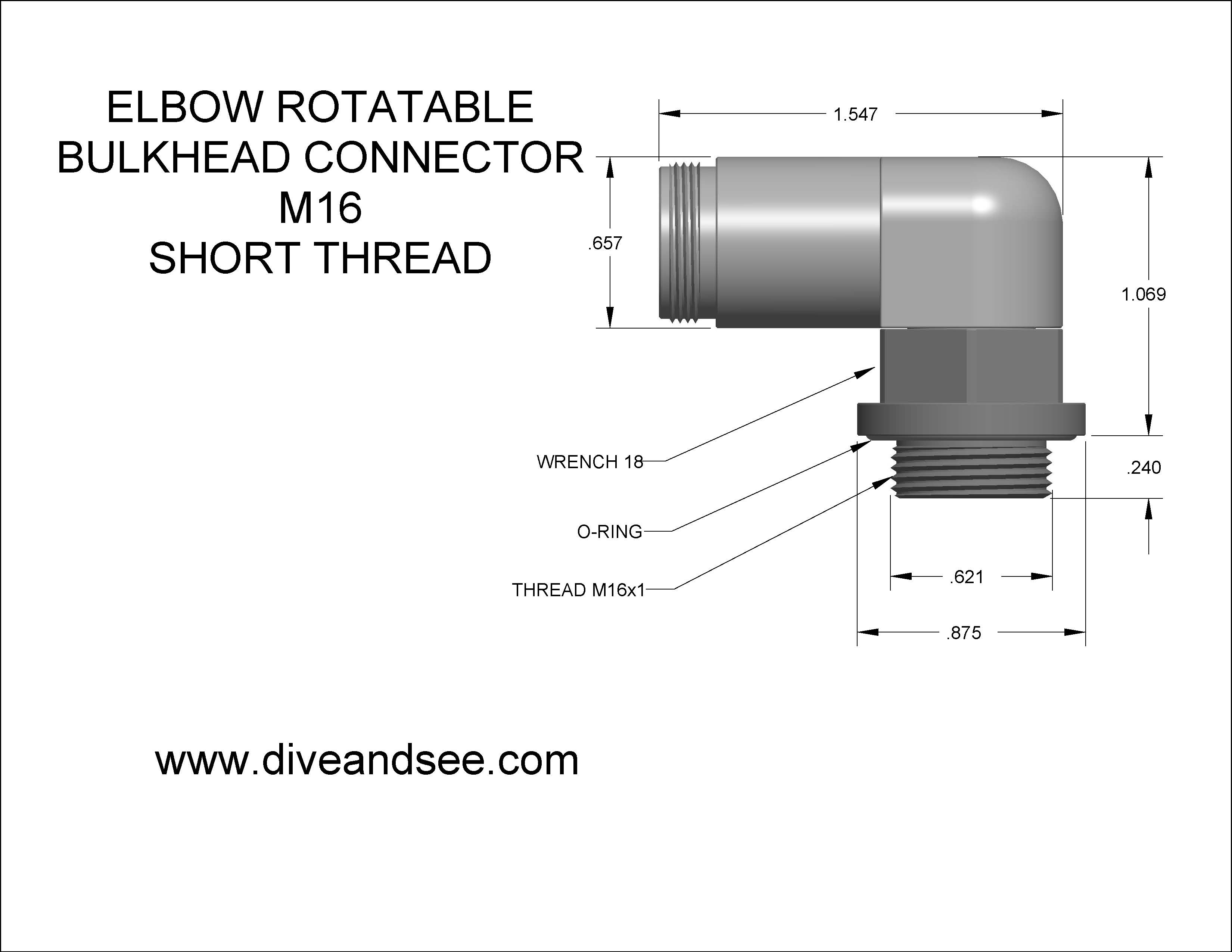

Outline Drawing

Available threads for this bulkhead connector:
For Nauticam housings - M16x1 short thread.
For Salty, Aquatica/Amphibico housings - M16x1 long thread with security nut.

drawing for elbow right angle Ethernet waterproof connector
