DNC-HD5 Underwater 3G-SDI Camera System with Permanently Attached Cable
The DNC-HD5 is a professional underwater 3G-SDI live video camera system designed for reliable underwater inspections, monitoring, research, and long-duration field operation. The system delivers stable 1080p60 SDI video, surface power, and remote control through one sealed combo cable.
The key advantage of the DNC-HD5 is its permanently attached cable. Unlike detachable underwater camera systems, the cable is sealed directly to the camera housing and is not designed to be removed by the user. There is no underwater connector to attach, tighten, or disconnect before deployment.
Key Advantage: Permanently Attached Cable
The DNC-HD5 is built for customers who want a simple, reliable, low-maintenance underwater camera system. The cable is permanently fixed to the housing, which removes the most common user-side setup step found in detachable cable systems.
- No detachable underwater cable connection
- No coupling nut to tighten before use
- No external underwater connector to attach or remove
- Reduced risk of user error during setup
- Fast deployment for inspection, monitoring, and live video work
This design is especially useful for applications where the camera is repeatedly deployed, handled by different operators, or used in environments where simplicity and reliability are more important than detachable cable flexibility.
How DNC-HD5 Is Different from Detachable Cable Systems
Detachable systems such as cameras with underwater bulkhead connectors can be useful when a removable cable is required. However, they also require the user to connect the cable correctly, inspect the sealing surfaces, and make sure the coupling nut is fully tightened before submerging the system.
The DNC-HD5 uses a different approach. The cable is permanently attached to the housing, so the underwater cable connection is already sealed as part of the camera system. Nothing needs to be tightened at the camera side before deployment.
- Choose DNC-HD5 when you want a sealed, ready-to-use camera system with a permanent cable.
- Choose a detachable system when you need replaceable external cables or multiple cable configurations.
One Cable for SDI Video, Power, and Remote Control
The permanently attached combo cable carries all required connections between the underwater camera and the surface equipment.
- 3G-SDI video signal up to 1080p60
- Power supplied from the surface
- Remote camera control through the same cable assembly
This one-cable design helps simplify the setup and keeps the system practical for underwater inspections, live monitoring, and professional video applications.
Stable 3G-SDI Live Video for Professional Underwater Work
SDI is widely used in professional video, broadcast, and inspection environments because it is stable, robust, and well suited for long cable runs. The DNC-HD5 sends live 3G-SDI video to the surface for monitoring, recording, or streaming workflows.
- Live Full HD video up to 1080p60
- Reliable signal transmission through the 30m cable
- Compatible with SDI monitors, SDI recorders, and broadcast equipment
- Can be converted to HDMI at the surface when HDMI monitoring is required
Surface Power for Long-Duration Operation
The DNC-HD5 is powered from the surface through the permanently attached cable. This allows the camera to operate without relying on internal batteries, making it suitable for extended underwater monitoring and inspection jobs.
- No underwater battery changes
- Designed for continuous operation
- Ideal for long inspections and monitoring projects
- Practical for field use where reliability is critical
Cable Length Configuration
The DNC-HD5 comes with a permanently attached cable up to 30 meters long. Custom shorter cable lengths may be available upon request. Cable lengths longer than 30 meters are not supported for the DNC-HD5 model.
If your project requires a longer cable or a detachable cable configuration, Dive And See can recommend a different underwater camera system better suited for that application.
Applications
- Underwater inspection camera systems
- Boat, yacht, hull, and marina inspections
- Marine and scientific research
- Aquarium monitoring and documentation
- Swimming pool filming and competitions
- Industrial and offshore monitoring
- Live underwater video streaming
- Remote surface viewing and recording
Key Features
- Professional underwater 3G-SDI camera system
- Live video output up to 1080p60
- Permanently attached sealed combo cable
- Maximum cable length: 30 meters
- Custom shorter cable lengths available upon request
- Video, power, and remote control through one cable
- Surface-powered design for long-duration operation
- Designed for underwater inspection, monitoring, and live video applications
Compatibility
- SDI monitors
- SDI recorders
- Broadcast video systems
- Live streaming encoders
- SDI-to-HDMI converters for HDMI monitoring at the surface

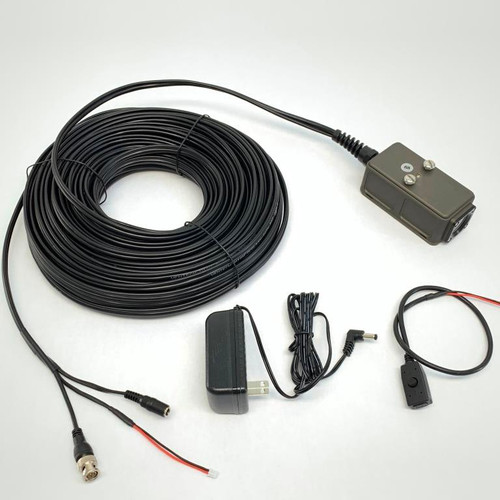

What Is Included
- DNC-HD5 underwater 3G-SDI camera
- Permanently attached combo cable up to 30 meters
- Surface-side BNC video, power plug, and CCU interface
- Remote Control Joystick for menu access and real-time adjustments
- 12V Universal Power Supply (100/240V), 2.1mm x 5.5mm Barrel plug
Custom Project Support
Dive And See builds underwater camera systems for professional and industrial applications. If you need a shorter cable length, surface monitoring package, recorder setup, live streaming integration, or a different underwater camera configuration, contact us with your project requirements.
Frequently Asked Questions
What makes the DNC-HD5 different from other underwater camera systems?
The main difference is the permanently attached cable. The DNC-HD5 does not use a detachable underwater cable connection. The cable is sealed directly to the housing, so there is no underwater connector to attach, tighten, or remove before deployment.
Does the DNC-HD5 cable need to be connected or tightened before use?
No. The cable is permanently attached to the camera housing. Nothing needs to be tightened or connected at the underwater camera side before use.
Can the cable be removed from the DNC-HD5?
No. The DNC-HD5 is designed as a sealed underwater camera system with a permanently attached cable. If you need a detachable cable system, another Dive And See camera model may be a better choice.
What is the maximum cable length for the DNC-HD5?
The maximum cable length for the DNC-HD5 is 30 meters. Shorter custom cable lengths may be available upon request. Longer cable lengths are not supported for this model.
What signals does the DNC-HD5 cable carry?
The permanently attached combo cable carries 3G-SDI video, surface power, and remote control signals through one cable assembly.
Does the DNC-HD5 support live video to the surface?
Yes. The DNC-HD5 sends live 3G-SDI video up to 1080p60 to the surface for monitoring, recording, inspection, and live streaming applications.
Does the DNC-HD5 require internal batteries?
No. The camera is powered from the surface through the permanently attached cable, making it suitable for long-duration operation.
Can the DNC-HD5 be used with HDMI monitors?
Yes. The camera outputs SDI video. If an HDMI monitor or HDMI recorder is required, an SDI-to-HDMI converter can be used at the surface.
What applications is the DNC-HD5 designed for?
The DNC-HD5 is designed for underwater inspections, boat and yacht inspections, offshore monitoring, aquarium observation, pool filming, marine research, and live underwater video applications.
