DNC-HD8 Stainless-Steel Underwater 3G-SDI Camera System for Long-Term Monitoring
The DNC-HD8 is a professional stainless-steel underwater camera system for live inspection, continuous monitoring, offshore operations, aquaculture, marine research, pool production, and other demanding saltwater environments.
It transmits live 3G-SDI video, receives continuous power from the surface, and provides remote camera control through one detachable waterproof combo cable. Complete system configurations are available with 30m, 50m, or 100m external cables.
Why choose DNC-HD8? Choose this model when stainless-steel construction, a replaceable external cable, continuous surface power, and serviceability are important for prolonged or repeated use in harsh marine environments.
System Configuration
- Base system without external cable: Suitable when you already own a confirmed compatible cable or require a custom cable configuration.
- Complete 30m system: Camera system with detachable 30m SDI / power / control combo cable.
- Complete 50m system: Camera system with detachable 50m SDI / power / control combo cable.
- Complete 100m system: Camera system with detachable 100m SDI / power / control combo cable.
For replacement or custom cable requirements, see the DNC-1099 underwater power, 3G-SDI, and remote-control combo cable.
Professional Alternative to Battery and Wireless Camera Setups
Wi-Fi and Bluetooth signals do not provide a dependable direct connection through water, and battery-powered action cameras require retrieval for charging or service. DNC-HD8 uses a physical cable connection for video, power, and control between the underwater camera and the surface station.
- Continuous power supplied from the surface
- Wired 3G-SDI video transmission
- Remote access to supported camera settings
- No reliance on an underwater Wi-Fi connection
- No routine underwater battery changes
Video Formats and Cable-Length Performance
Important signal-format notice: The supported video format depends on cable length and the complete signal chain. The listed configuration supports 1080p60 at cable lengths up to 50m and 1080i at lengths beyond 50m. Confirm the required resolution, frame rate, cable length, monitor, recorder, converter, and streaming equipment before ordering.
Detachable Cable for Field Serviceability
The external underwater cable can be disconnected and replaced independently from the stainless-steel camera housing. This modular design simplifies transportation, supports multiple cable lengths, and may reduce downtime and repair cost if an external cable is damaged.
- Replaceable external underwater cable
- 30m, 50m, and 100m system options
- Custom cable configurations available
- Protective connector handling for transportation and storage
- Camera housing does not need to be replaced when only the cable requires service

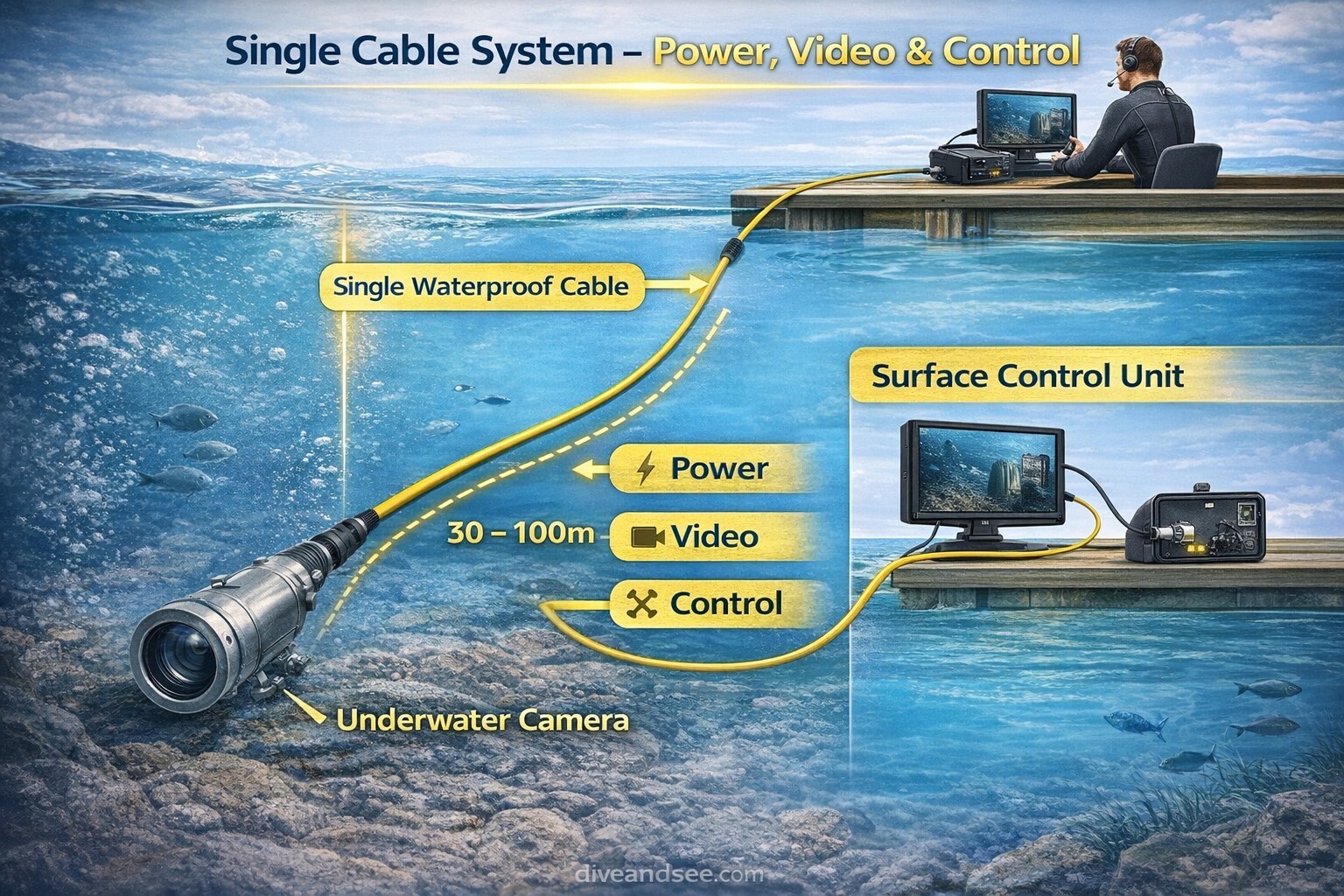

How the DNC-HD8 Works
- The stainless-steel underwater camera captures live video.
- One waterproof combo cable carries SDI video, surface power, and remote-control signals.
- The surface controller provides power and access to supported camera settings.
- The SDI output connects to a compatible monitor, recorder, switcher, converter, or streaming encoder.
Technical Specifications
| Product Type | Stainless-steel underwater inspection and live-monitoring camera system |
|---|---|
| Video Signal | 3G-SDI |
| Video up to 50m | Up to 1080p60 |
| Video beyond 50m | 1080i |
| Cable Options | 30m, 50m, and 100m |
| Signals Through Cable | SDI video, surface power, and remote control |
| Cable Design | Detachable waterproof combo cable |
| Housing Material | Stainless steel |
| Depth Rating | 100m |
| Image Sensor | Sony CMOS |
| Power | Continuous surface-powered operation |
Applications
- Pipeline, hull, mooring, and underwater infrastructure inspection
- Offshore and commercial diving operations
- Aquaculture, fish-farm, aquarium, and environmental monitoring
- Marine research and long-duration observation
- Swimming pools, competitions, training, and aquatic production
- Underwater live video, recording, broadcast, and streaming workflows
Choose the Right Dive And See SDI Camera System
| Model | Cable System | Housing | Best For |
|---|---|---|---|
| DNC-HD5 | Permanently attached, up to 30m | Aluminum | Simple, ready-to-deploy inspections |
| DNC-HD6 | Detachable, up to 100m | Marine-grade aluminum | Portable, field-serviceable inspection work |
| DNC-HD8 | Detachable, up to 100m | Stainless steel | Prolonged and repeated use in harsh marine environments |
| DNC-HD9 | Permanently attached, up to 30m | Stainless steel | Simplified stainless-steel inspection setup |
What Is Included
Package contents depend on the selected option. The base “Underwater camera without External cable” configuration does not include the external 30m, 50m, or 100m combo cable.
Base System
- DNC-HD8 underwater camera in stainless-steel housing
- Surface control unit
- Power supply
- Internal system connections
- SDI-to-HDMI converter when specified in the selected package
Complete Cable Configuration
Includes the base system plus the selected detachable 30m, 50m, or 100m underwater SDI / power / control combo cable. Confirm the exact contents shown in the selected product option before ordering.
Installation and Handling
- Before every deployment, inspect and clean connector contacts and sealing surfaces.
- Fully tighten waterproof coupling nuts by hand. Do not use pliers or excessive force.
- Install protective caps whenever a connector is disconnected.
- Provide strain relief and do not lift the camera or other equipment by the cable.
- Test the complete signal chain at the required video format before submerging the system.
Frequently Asked Questions
Does the DNC-HD8 require an underwater battery?
No. In a complete powered configuration, the camera receives continuous power from the surface through the combo cable.
What signal does the cable carry?
One cable carries SDI video, camera power, and remote-control signals between the camera and surface equipment.
Does the 100m configuration support 1080p60?
No. The listed specification is up to 1080p60 at cable lengths through 50m and 1080i beyond 50m. Confirm the complete configuration before ordering.
Can the cable be replaced?
Yes. DNC-HD8 uses a detachable external cable that can be serviced or replaced separately from the camera housing.
Can it connect to an HDMI monitor or internet streaming service?
The native video output is SDI. An appropriate SDI-to-HDMI converter can feed an HDMI display, while a compatible surface encoder or capture device is required for internet streaming.
How does HD8 differ from HD6?
DNC-HD8 combines a detachable cable with a stainless-steel housing for prolonged or repeated harsh-environment use. DNC-HD6 uses a marine-grade aluminum housing and is positioned as a portable, field-serviceable inspection system.
