DNC-1107

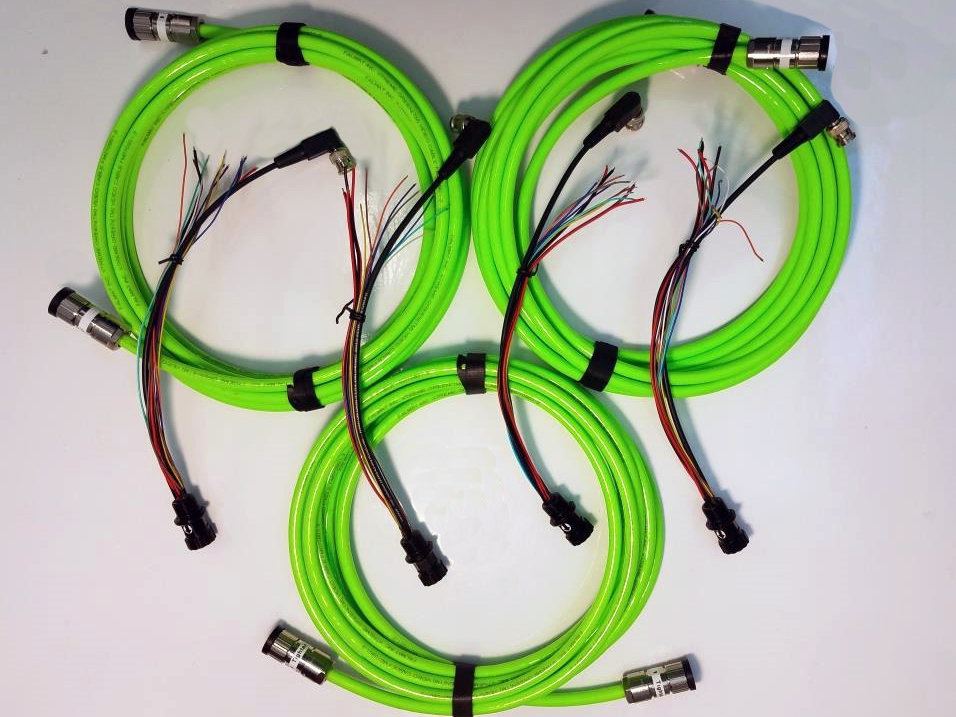

10m Underwater (Uwater) Video cable HD-SDI with Power and spare conductors
- Extremely strong outer jacket to any mechanical stress and damage.
- The DNC-1107 is a specially formulated, flexible, low friction polyurethane with extremely high tear strength and abrasion resistance.
- Custom designed 75 ohms, video coax core with stranded 22 AWG conductor, plus 12 stranded 22 AWG conductor for extended bend fatigue life.
- The cable is a perfect solution for 3G/HD/SDI, standard SDI or high-resolution video applications.
- Overall Diameter of the cable - 0.350 in (8.9 mm).
- The waterproof connector consists: 3-pin male for Video signal and 12–pin male for power and data.
- Cable consists of waterproof connectors from both sides with built-in water block for high-pressure application (tested at the pressure of 160 meters).
- Bulkhead connector DNC-2023 sold separately.
Brief Description
Strongest available on underwater market Video Data Power cable.
This underwater 10 meters 3G-SDI cable, designed to transmit Video 1080p60, power and some data signals through one cable.
Recommended length of the cable for a reliable 3G-SDI (1080p60) signal up to 50 meters.
DNC-1107 supports 3G-SDI SMPTE 424M standard, with 2.970 Gbit/s, and 2.970/1.001 Gbit/s bit-rates of 1080p60 video format.
For signal 1080p30,25,24 fps; 1080i60,50 fps; 720p50; 576i50 up to 100 meters or longer, depends from the frequencies of the signal.
Cable Specification
* The DNC-1107 is a specially formulated, flexible, low friction polyurethane with extremely high tear strength and abrasion resistance

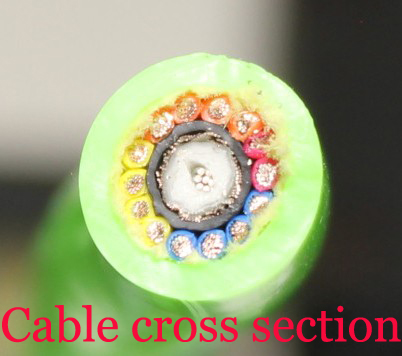

* Custom designed 75 ohms, video coax core with stranded 22 AWG conductor, plus 12 stranded 22 AWG conductor for extended bend fatigue life
* Cable allows for tighter bend radius and smaller portable handling systems use
* Bandwidth 4.5 GHz - meets SMPTE 292M and 424M standards for HD/SDI (up to 50 meters)
* Overall Diameter of the cable - .350 in (8.9 mm)
* Breaking Strength – 1200 lbs
* Extremely strong outer jacket to any mechanical stress and damage
* The thickness of the jacket is 1.2mm
* Cable consist of a waterproof connector with built-in water block for a high-pressure application (tested at the pressure of 160 meters)
* The waterproof connector consists of 3-pin male for Video signal and 12–pin male for power and data
The material of waterproof connector: Nickel plated Marine grade brass.
Custom made Dive And See waterproof connector very compact size:
Length - 45mm
Outside Diameter - 20mm
Applications
* The cable is a perfect solution for 3G/HD/SDI, standard SDI or high-resolution video applications
* Underwater ROV Tethers
* Remote cable for Video Security cameras
* Video Inspection Cables
* Robot Inspection
* Live feed from Video source
* Fisheries & Environmental Monitoring
Compatibility
Cable DNC-1107 is compatible with Dive And See waterproof Bulkhead connector DNC-2023.
Options
Custom length and other BNC connector types are available.
