DNC-2104
HDMI Full size, Elbow style, Rotatable Right Angle underwater bulkhead connector M16 for Salty BLACKMAGIC Pocket 4K 6K housing, Sony FX3
- Underwater full-size Type A (90 degrees), HDMI bulkhead connector is designed to transmit 1080p60 signal and some 4K from the HDMI output of the camera Blackmagic Pocket 4K 6K
- DNC-2104 bulkhead connector compatible with Salty Blackmagic Pocket 4K 6K underwater housing (M16 thread)
- The custom full-size HDMI right-angle connector is designed to pass through either threaded or non-threaded M16 ports.
- Bulkhead connector have water block, which is allowing to keep vacuum inside of your underwater housing
- Depth - 240 PSI (160 meters)
- Contacts Gold plated, brass
- Water Protective cap is included
- Material Marine Aluminum with Hard Anodizing coating
Brief Description
We have developed Elbow style, rotatable bulkhead connector for the Salty Blackmagic Pocket 4K 6K underwater housing, with full size of HDMI connector.
The updated design offers flexibility in installing the bulkhead connector in your housing, allowing you to choose the preferred orientation. Its elbow shape (90 degrees) keeps the external cable horizontal, deviating from the typical vertical connection style.
Thread of the connector M16x1.
Low profile Right angle HDMI connector fits tight space of the underwater housing.
Rotatable portion of the bulkhead connector consists triple o-ring system for reliable sealing.
Water Block
Submersible HDMI Connector includes a built-in water block that serves two essential purposes. Firstly, it maintains a vacuum within the housing when utilizing the AirLock Vacuum System. Secondly, it acts as a protective barrier for the housing, preventing water penetration in case of any issues with the external cable or its connection to the bulkhead connector.
Options
Custom length of the cable and different type of connectors are available.
Compatibility
- Elbow style bulkhead connector is compatible with any Dive And See waterproof - underwater HDMI cables and HDMI monitors.
- The full-size Type A HDMI connector at the end of the bulkhead is compatible with various cameras, including the Sony FX3, Sony Alpha A7S II, Canon EOS 5D Mark IV, Nikon D850, Panasonic Lumix GH5, Nikon Z9, Sony A1, A7S III, and more.
- The custom full-size HDMI right-angle connector is designed to pass through either threaded or non-threaded M16 ports.

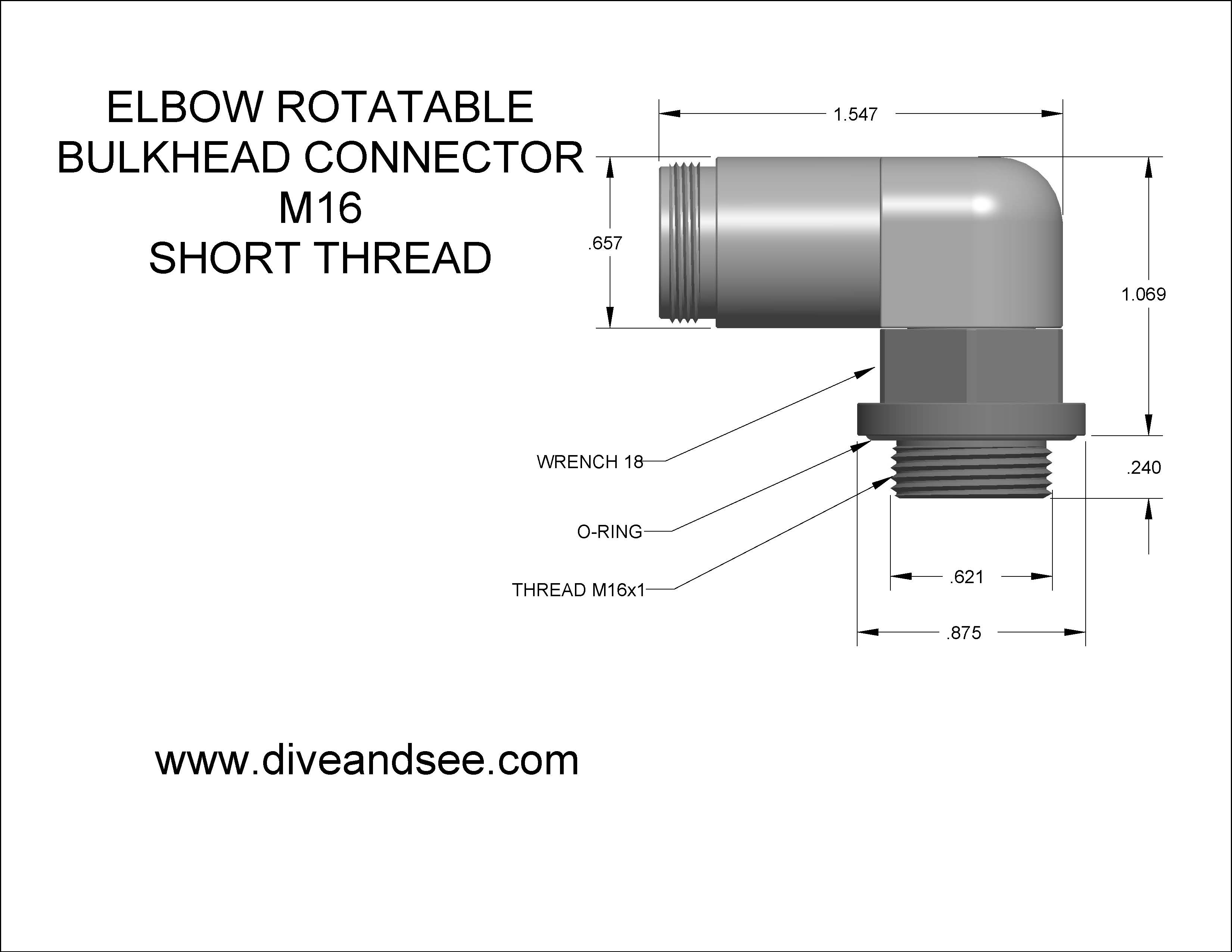

Outline Drawing
Illustrated dimensions diagram for swivel M16 Underwater Bulkhead Connector with a Short Thread
