Micro HDMI connector for Aquatica AGH4 housing, Sony A7R II

Micro HDMI connector for Aquatica AGH4 housing, Sony A7R II

$349.00
SKU:
DNC-2020
Availability:
For international shipping please contact us. Lead time 6-8 days after payment

DNC-2020

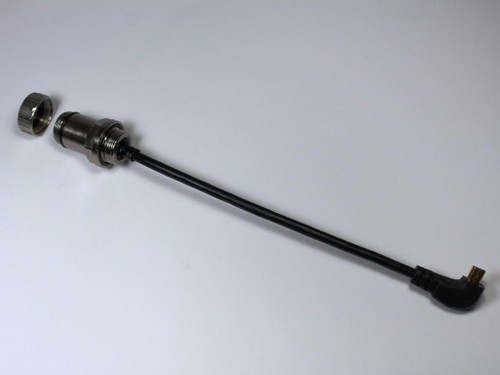

Micro HDMI underwater bulkhead connector for Aquatica AGH4 housing, Sony A7R II

Underwater Micro HDMI bulkhead connector (right angle Type D) is designed to transmit the signal from the HDMI output of the camera Panasonic GH4, Sony A7R II. This fitting with M16x1 thread is compatible with DSLR underwater housing Aquatica AGH4.
Bulkhead connector has a water block which allows it to keep a vacuum inside of your underwater housing, depth - 240 PSI (160 meter)
Contacts: Gold plated, brass
* Protective cap and security nut is included
Custom length and other HDMI connector types are available

Brief Description

We have developed a bulkhead connector for the Aquatica GH4 housing, with a Micro HDMI Type D HDMI connector.
Thread of the connector is M16x1, thread length is 0.5 inch.
Custom made, Low profile, Right angle connector fits tight spaces of underwater housings.

Water Block

Uwater Bulkhead connector DNC-2020 comes with built-in water block.
The water block keeps the vacuum inside of the housing when using the AirLock Vacuum System.
It also protects the housing against penetration by water if something happens with the external cable or connection between external cable and bulkhead connector.

Options

Custom length of cable is available.

Compatibility

Bulkhead connector DNC-2020 is compatible with all Dive And See HDMI monitors and cables.


Outline Drawing

Outline dimensions drawing for Underwater HDMI bulkhead connector M16 with Long thread.

outline dimensions underwater hdmi bulkhead connector M16
