DNC-2058 Underwater Power Bulkhead Connector M16, 5.5x2.1mm DC Plug
Product Description:
The DNC-2058 Underwater Power Bulkhead Connector is designed to provide reliable power transmission for underwater systems, such as camera setups and strobes. This durable connector, equipped with an M16x1 thread and a 5.5x2.1mm DC male plug, allows you to safely power devices within underwater housings without relying on batteries.
Purpose and Use:
With a 6.5mm long M16 thread, this bulkhead connector is perfect for professional underwater photographers and videographers who need continuous power for their equipment in challenging environments. The built-in water block preserves vacuum integrity inside the housing, preventing water ingress even if an external cable is disconnected, making it an essential component for secure, reliable power transmission at depth.
Key Features:
- Underwater Power Transmission: Facilitates power supply for underwater cameras, strobes, and other equipment, rated for circuits up to 24V and 5.0A at 12V.
- Secure M16x1 Thread: Available with a short or long thread for compatibility with Nauticam (short thread) and Aquatica, Amphibico, and Aquatech (long thread) housings.
- Durable Build: Constructed from marine-grade aluminum with a hard-anodized coating for corrosion resistance.
- Water Block Technology: Maintains the vacuum inside the housing to prevent water entry, essential for underwater operations.
- Complete Kit: Includes a protective cap and security nut for secure installation when the connector is not in use.
Applications:
- Underwater Strobe Power: Eliminates the need for battery power in strobes, allowing continuous power for extended underwater shooting sessions.
- CCTV and Surveillance: Ideal for underwater CCTV setups, powering cameras without battery dependency.
- Flexible Integration: Compatible with Dive And See DNC-1113 cable for a fully secure underwater connection.
Specifications:
- Connector Type: 5.5x2.1mm DC male plug
- Thread Options: M16x1 (6.5mm length) in both short and long options
- Depth Rating: Rated to maintain housing vacuum with water block feature
- Voltage and Current: Supports up to 24V, rated 5.0A at 12V
- Compatibility: Compatible with Nauticam (short thread) and Aquatica/Amphibico/Aquatech housings (long thread)

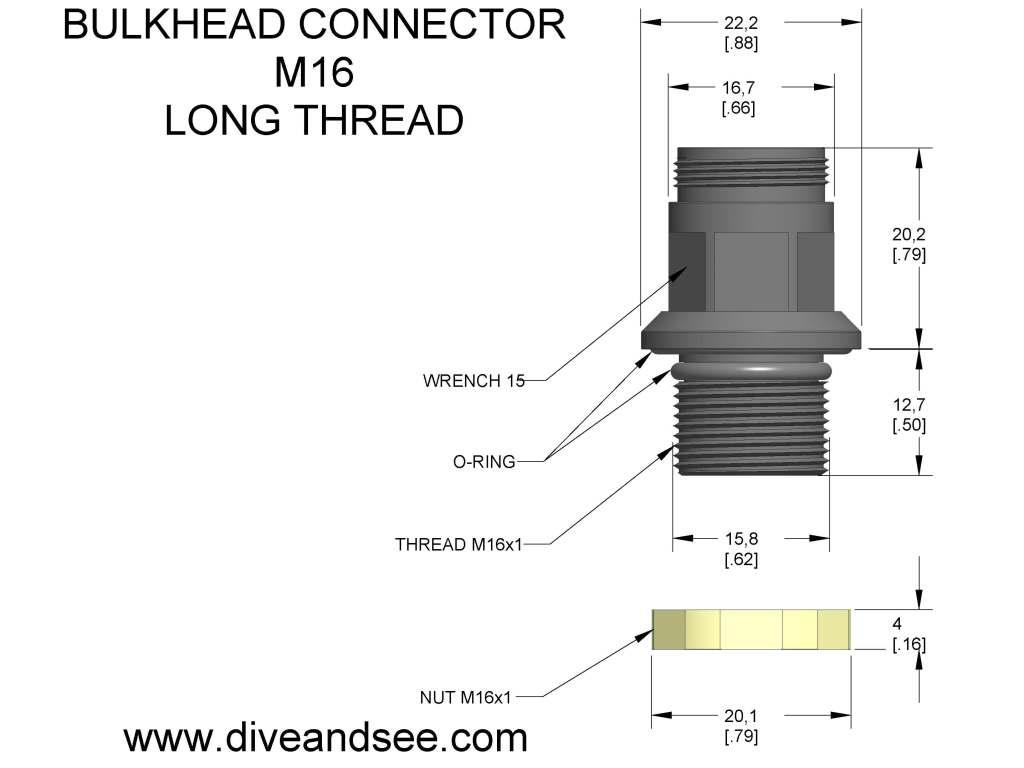

Outline Drawing:
Available threads for this bulkhead connector:
For Nauticam housings - M16x1 short thread.
For Aquatica/Amphibico housings - M16x1 long thread with security nut.
