DNC-2135 M16 bulkhead connector long thread security nut with RG316 Male SMA

M16 Waterproof Bulkhead connector Drone, GPS, WLAN, Wi-Fi antenna, Male SMA

For international shipping please contact us. Lead time 6-8 days after payment

Waterproof Bulkhead connector Drone, GPS, WLAN, WiFi antenna, with Male SMA


  • Underwater bulkhead connector is designed for High-Frequency applications
  • Waterproof bulkhead connector is compatible with cable DNC-1144, DNC-1040
  • Submerged connector have water block, which alows you to keep the vacuum inside of your underwater housing
  • Depth - 240 PSI (160 meters)
  • Contacts: Gold plated, brass
  • Protective cap and security nut are included
  • Material: Marine Aluminum with Hard Anodizing coating
  • Applications: Underwater Drones, Mobile Antennas, GPS, LMR, WLAN, WISP, WiMax, High-Frequency devices

Brief Description

Submersible connector comes with custom Dive And See underwater connector, RG316 coaxial cable with SMA Male connector on the end. RG316 female SMA terminated

Thread of the connector M16x1.


Custom length and other connector types are available.

Water Block

Water-Resistant connector DNC-2135 comes with the built-in water block.
The water block keeps the vacuum inside of the housing when using the AirLock Vacuum System.
Also protect the housing against penetration of the water, if something happening with external cable or connection between external Power cable and bulkhead connector.

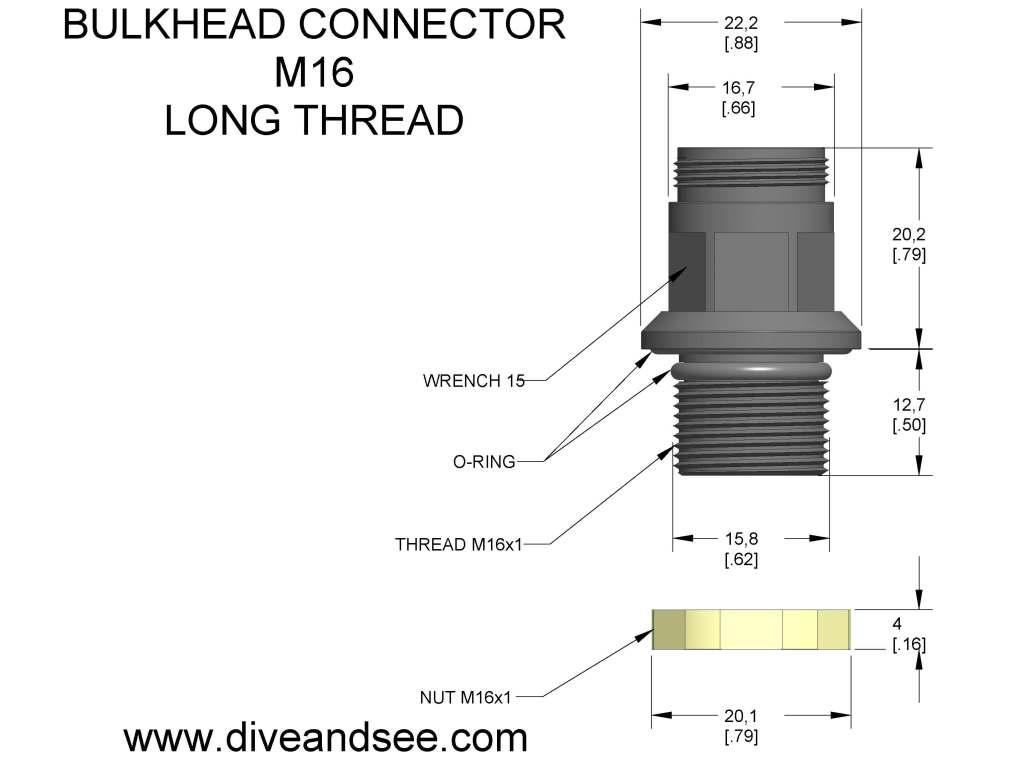

Outline Drawing

Other M16 thread sizes are available.

Outline dimensions drawing
