DNC-HD2
Underwater High Definition 1080p60 camera system with 3G-SDI Live Stream and additional HDMI Output
- Professional, SDI broadcast quality camera for underwater (UWater) application
- Additional HDMI bulkhead connector
- 3G-SDI output 1080p60 resolution with 1000 TVL
- SDI and power going through the one cable
- Image stabilizer. Remarkable low Lux performance of 0.005 Lux
- All menu functions of the camera are accessible through the body of the housing
- Bulkhead connector for a different length of external Waterproof cables
- Housing required additional external cable DNC-1099,
DESCRIPTION
* DNC-HD2 underwater system developed based on professional broadcast camera with SONY Image Sensor 1/3” Progressive CMOS, approximately 2.1 megapixels and Horizontal Resolution 1000TVL
* The housing is specially designed for underwater monitoring application
* Housing made from marine aluminum with hard anodized coating
* Camera reproduces Bright Crisp color Images, even in the low light environment
* The DNC-HD2 setup is surface powered allowing unlimited operation time with wide voltage ranging from 12V to 24V (depends from cable length)

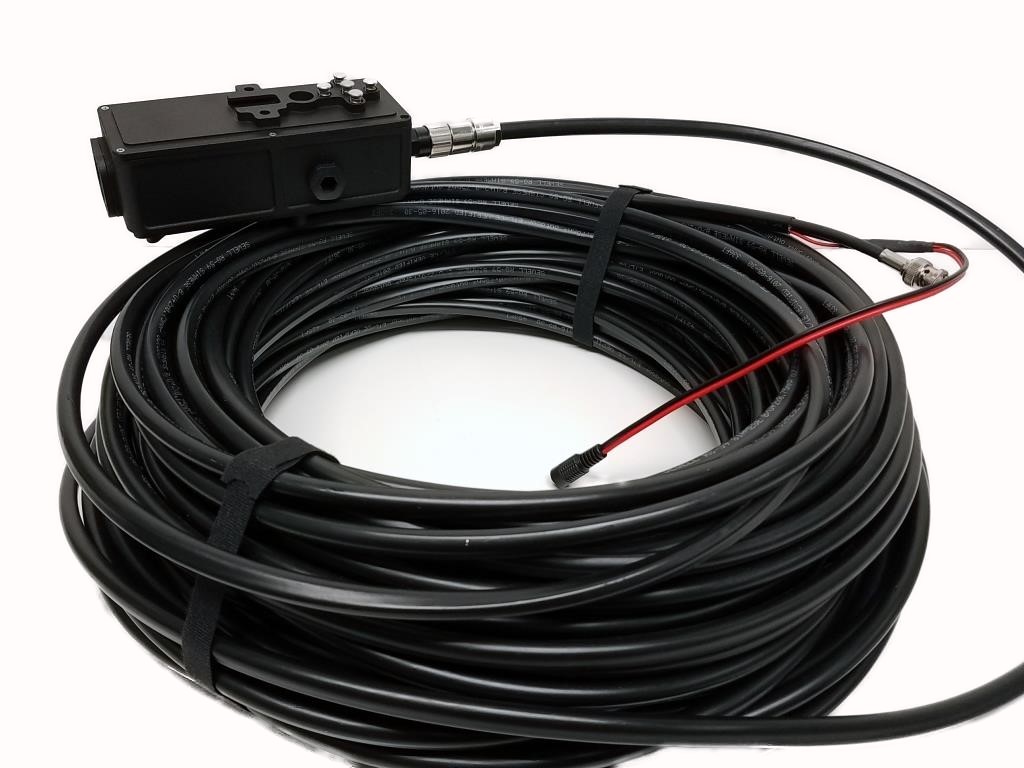

* One combo cable using to the powered camera, and transmit 3G SDI signal
* The housing includes from the bottom and top mounting slots and 1/4″-20 threaded holes.
* Depth Rating of the housing: 330 feet / 100 meters

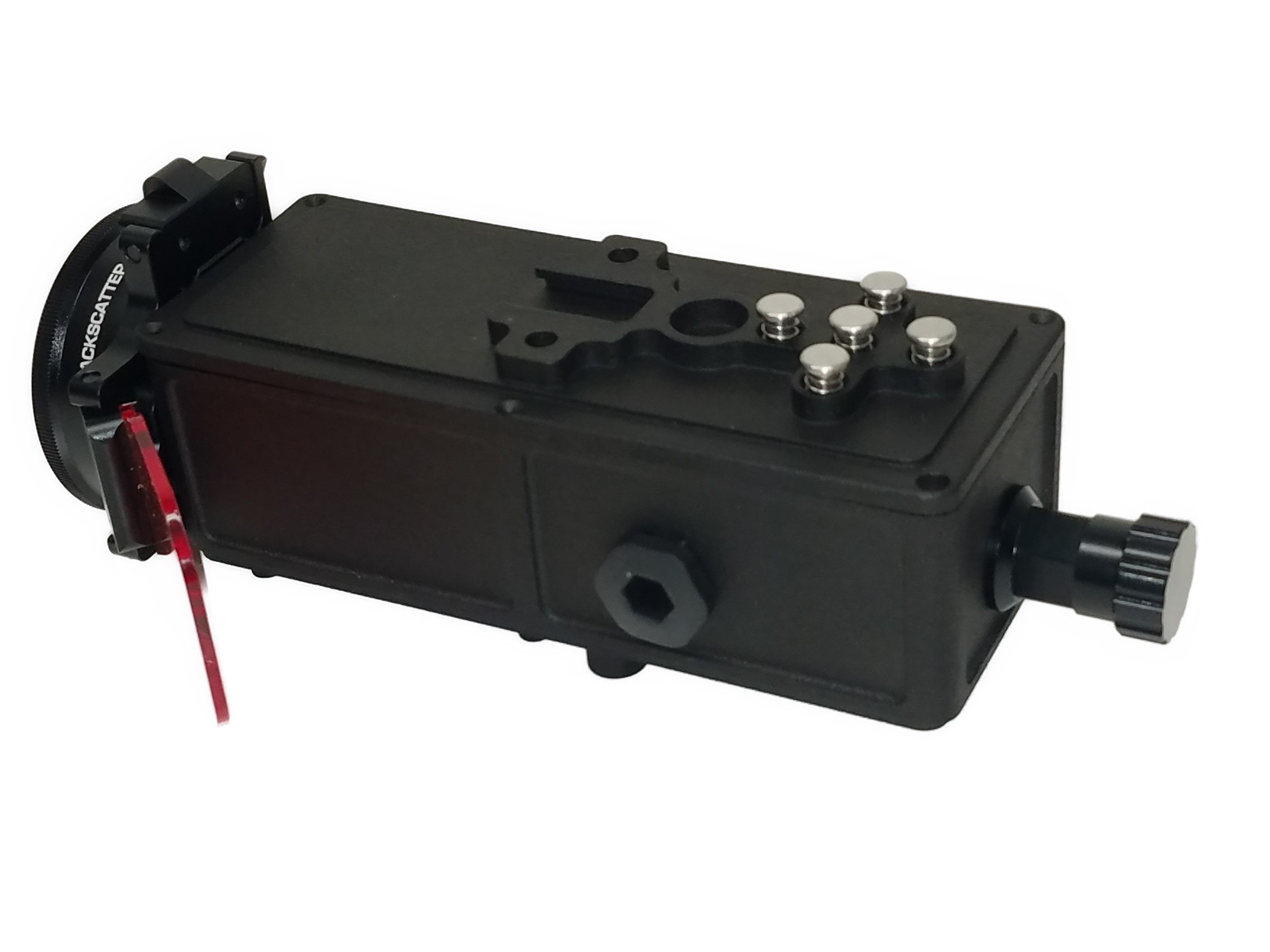

The camera housing is completely sealed and consist SDI Output bulkhead connector. This bulkhead connector allowed to connect a different length of external surface cables. Maximum available length is 100 meters.

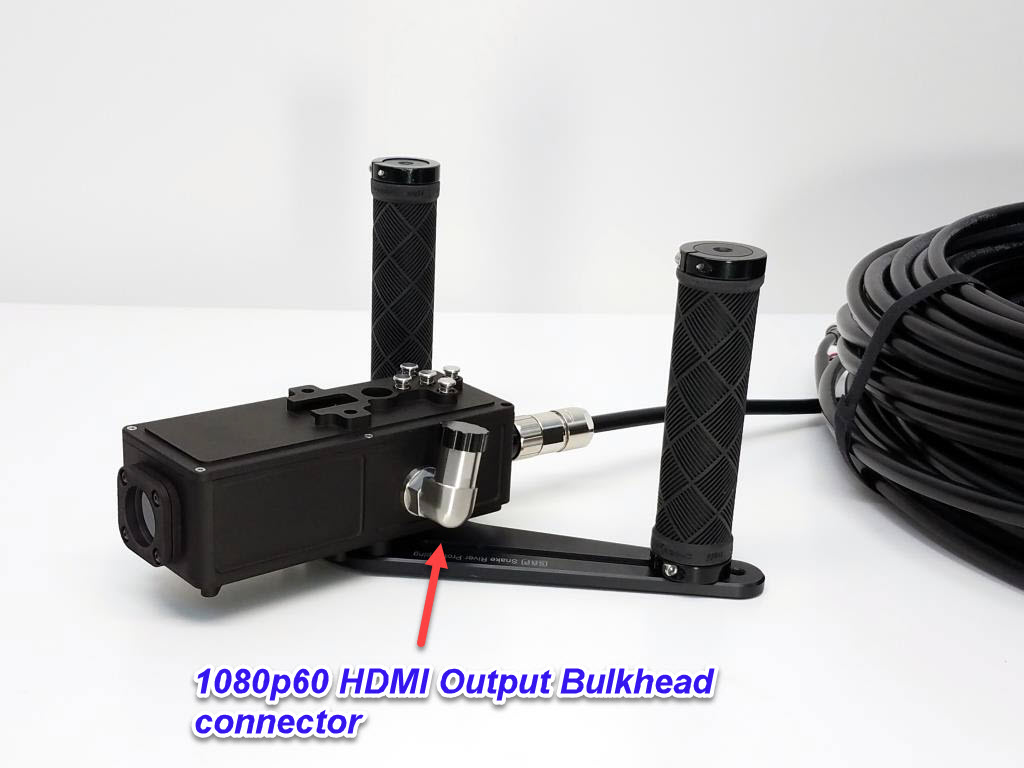

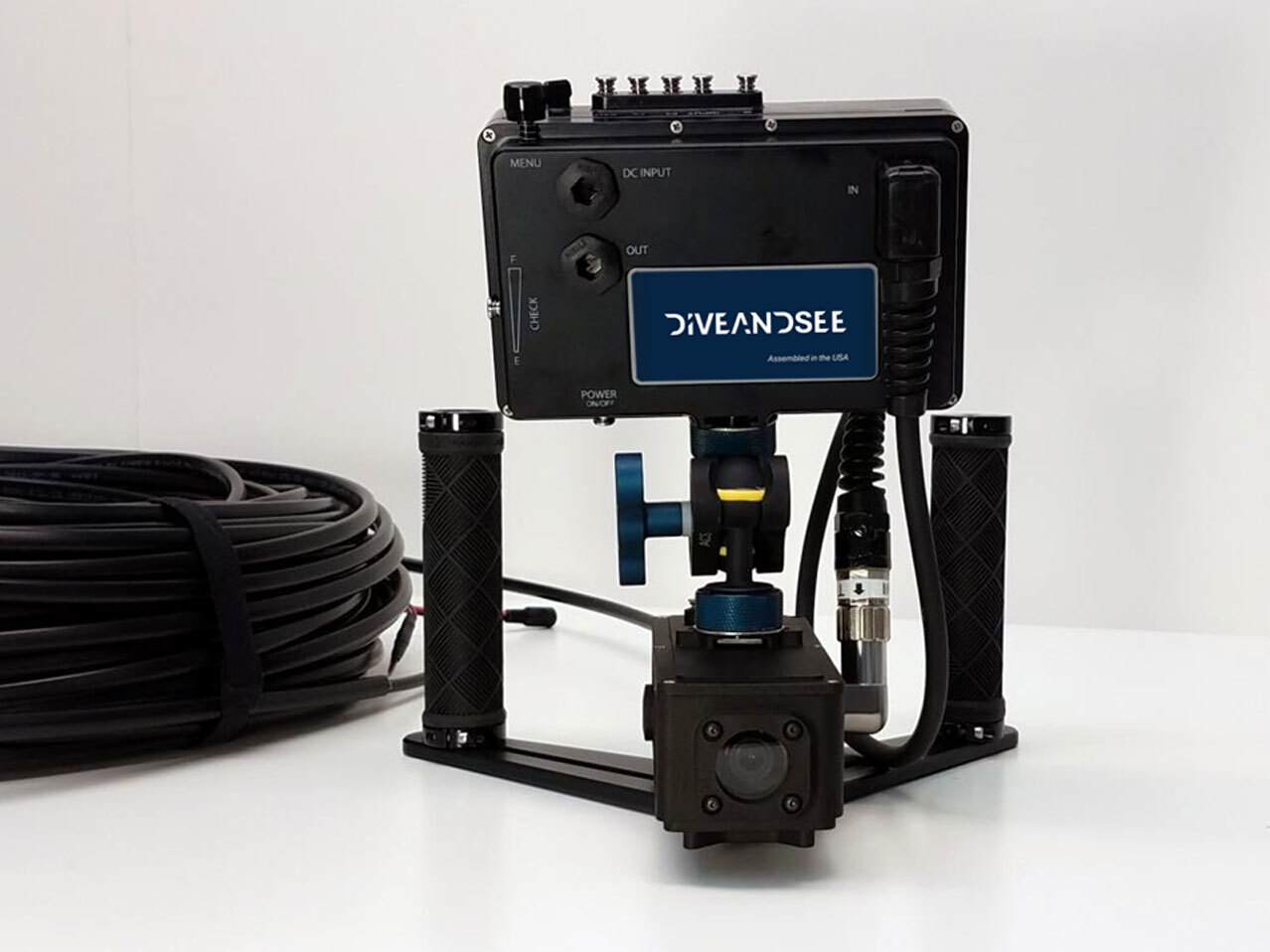

Additional HDMI 1080p60 Output connector allowed to connect any Dive And See HDMI monitors
Detachable LED Video light consist Rechargeable USB Built-in battery, runtime more than 6 hours.
You can charge the battery, using any standard USB charger.
Cable for the charging is included to the set.
A color temperature of the light is 6000K.
No hot spot, wide-angle bim, great coverage.
This light generates Max 400 Lumens light and offers 2 power settings and 1 SOS settings controlled by a reliable push-button. Depth rating - 45 meters.
External push buttons allow you fully control and change settings of the camera Menu.
The set includes a detachable mount adapter, allowing the underwater camera to be tilted and rotated, with 1" ball on the end.
Binding T-slots on the top and bottom allow convenient connection with underwater housings and arms. It is useful for lighting or an external microphone. Also, the housing consists of 2 threaded holes 1/4-20 from the top, and three threaded holes 1/4-20 from the bottom.

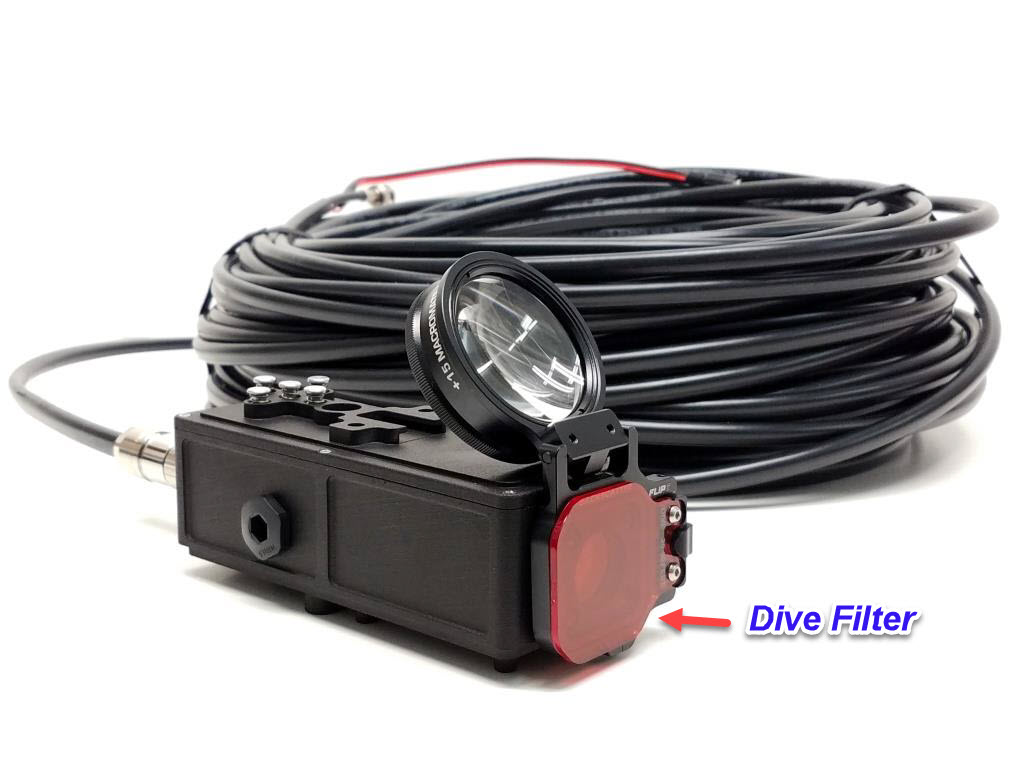

The new Backscatter FLIP7 gives you multiple filters at the flip of one finger. FLIP7 Pro set perfectly works with the camera housing. Optimal color has never been so easy. Filters on the FLIP7 can be flipped out of the way with just one finger and lock into on/off positions with a positive snap. The custom +15 (optical zoom) MacroMate Mini design allows you to get within 3 inches of your subject so you can bring the tiny wonders you find to the big screen. FLIP7 Pro Package with SHALLOW, DIVE & DEEP Filters & +15 MacroMate Mini Lens - $236
The Tray offers stability, comfort, added shot proficiency
SPECIFICATION
|
Image Sensor
|
1/3" Progressive CMOS
|
|
Scanning System
|
16:9 Progressive
|
|
Effective Pixel
|
1920(H) x 1080(V)
|
|
Min. Illumination
|
0.2Lux (Day), 0.1Lux (Night), 0.005Lux(DSS on)
|
|
Lens
|
3.7mm (default)
|
|
3G-SDI / HDMI
|
1920x1080p @ 50/60fps
1920x1080p @ 29.97fps or 25/30fps
1920x1080i @ 59.94fps or 50/60fps 1280x720p @ 59.94/29.97fps |
|
Weight in air
|
0.65 Kg
|
|
Dimensions
|
156 x 64 x 64 mm
|
|
Depth Rating
|
100 meters
|
OUTLINE DIMENSIONS
LENS OPTIONS
Lens (Flat Cover Lens Glass) - 2.8mm, F2.6; Angle of View : 120 degree field of view
DNC-HD2 set includes
* Manufacturing sealed housing with the camera
* The additional HDMI bulkhead connector
* Cold shoe ball mount 1 inch
* Power supply
* External cable DNC-1099 not included to base model
