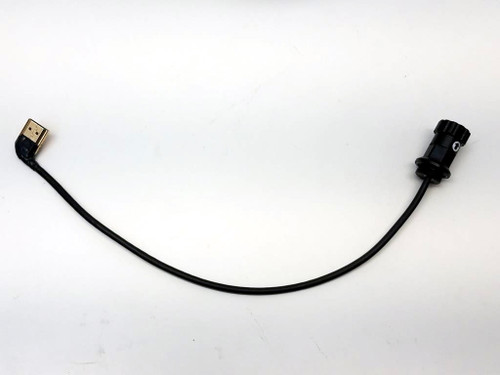

Underwater full size HDMI 2.0 bulkhead connector M16 for Seacam GH5

  • Underwater full-size Type A (90 degrees), HDMI bulkhead connector is designed to transmit 1080p60 signal from the HDMI output of the camera Panasonic GH5.

  • HDMI 2.0 bulkhead connector, Support 4KP60 4:2:0 8-BIT of Atomos Ninja V

  • This DNC-2053 bulkhead connector compatible with SEACAM GH5 underwater housings

  • Bulkhead connector have water block, which is allowing to keep vacuum inside of your underwater housing

  • Depth - 240 PSI (160 meters)

  • Contacts: Gold plated, brass

  • Protective cap is including

  • Material: Marine Aluminum with Hard Anodizing coating

Brief Description

We have developed bulkhead connector for the Seacam GH5 housing, with full size of HDMI connector Panasonic GH5.
Thread of the connector M16x1.
Custom made Low profile Right angle connector fits tight space of the underwater housing.

Water Block

Uwater Bulkhead connector comes with the built-in water block.
The water block keeps the vacuum inside of the housing when using the AirLock Vacuum System.
Also protect the housing against penetration of the water, if something happening with external cable or connection between external cable and bulkhead connector.


Custom length of cable is available.


Seacam Silver GH5 housing with Bulkhead connector DNC-2053 and 30 meters 4K HDMI external waterproof cable DNC-1066

dnc-2053 HDMI waterproof connector on the housing Seacam Silver Panasonic GH5 and 30m HDMI waterproof 4K resolution HDMI cable

Support 4KP60 4:2:2 10-BIT of Atomos Ninja V

Outline Drawing

Outline dimensions drawing for Underwater Power feed bulkhead connector M16 with Short thread.

outline dimensions underwater power bulkhead connector M16 short thread
