Underwater Power Connector M16 for Z CAM E2 camera

Underwater Power Connector M16 for Z CAM E2 camera

$359.00
SKU:
DNC-2062
Availability:
For international shipping please contact us. Lead time 6-8 days after payment

DNC-2062

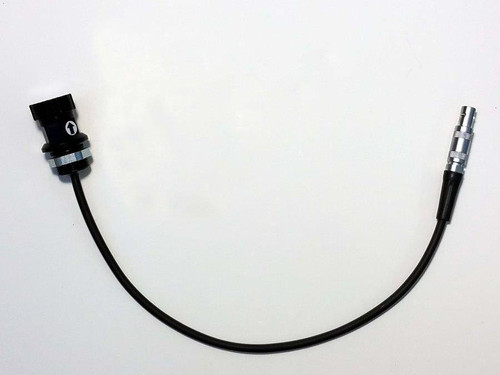

Underwater Power Bulkhead Connector M16 for Z CAM E2 camera

* This underwater bulkhead connector designed to feed Z-Cam E2 camera from the surface.
* The bulkhead connector DNC-2062 comes with Dive And See pinout style from one end (outside the housing), and 4 pin mini Lemo connector on the inside.
*  Protective cap is include
* Material: Marine Aluminum with Hard Anodizing coating
* Contacts of the bulkhead connector, made from Gold plated brass
* Compatible with external Power cable DNC-1106.


Brief Description

We have developed a Power bulkhead connector to feed Z-Cam E2 camera from the surface, using external batteries.
High capacity V-Mount battery produced an extensive amount of run time for the camera, such a ROLUX RL-95S.
Connector DNC-2062 fits the port of the underwater housings, such an Aquatica,  Aquatech.
Thread of the connector M16x1, the length of the thread is 12.7mm (0.5 inches).
If you need for Nauticam M16x1 housings specify "short thread" 6mm (0.25 inches).

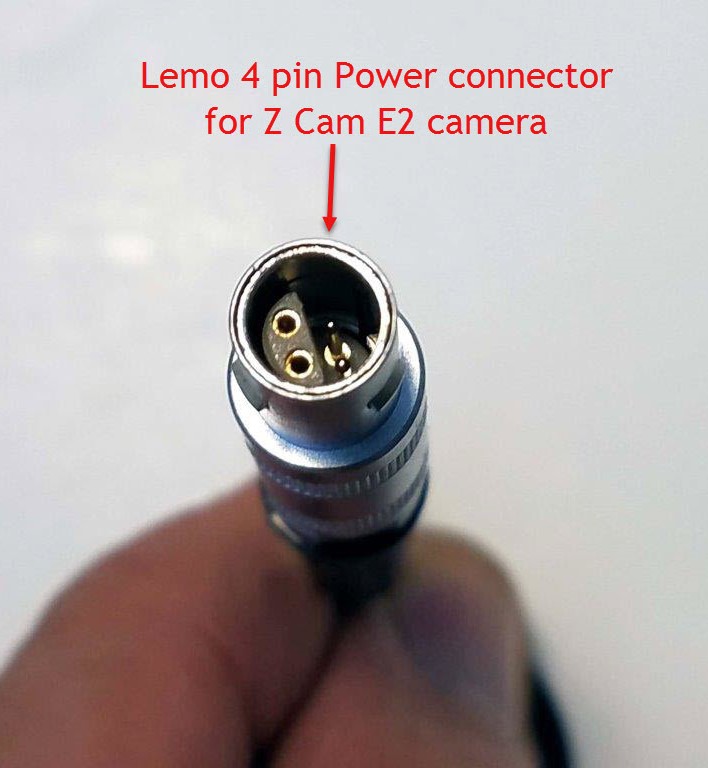

Z-Cam E2 camera with Lemo 4 pin power connector



LEMO 4 pin power connector for Z Cam E2 camera

Water Block

Underwater Bulkhead connector DNC-2062 comes with the built-in water block.
Water block keep the vacuum inside of the housing when using the AirLock Vacuum System.
Also protect the housing against penetration of the water, if something happening with external cable or connection between external Power cable and bulkhead connector.

Options

Maximum available length - 50 cm
Custom length available.

Compatibility

Bulkhead connector DNC-2062 is compatible with cable DNC-1106

Outline Drawing

Outline dimensions drawing for Z CAM E2 camera, Underwater bulkhead connector M16 with Long thread.

outline dimensions underwater bulkhead connector M16 for Z-Cam E2 camera
