DNC-2067: Underwater Power Bulkhead Connector for Nauticam Weapon LT Housing (RED DSMC2)

Key Features:

• Power Supply for RED DSMC2: The DNC-2067 bulkhead connector is specifically designed to power the RED DSMC2 camera from the surface, eliminating the need for an internal battery and providing reliable power for extended underwater shoots.

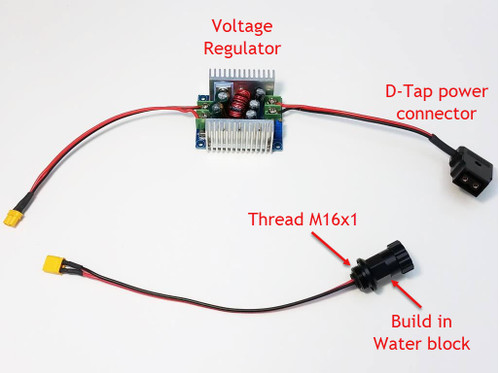

• Adjustable Voltage: The connector supports an adjustable output voltage from 1.2V to 24V DC, with an output current of up to 20A, ensuring the camera receives stable and adequate power for high-performance filming.
• Water Block System: Equipped with a built-in water block, the connector helps maintain the vacuum inside the housing when using the AirLock Vacuum System, protecting against water ingress in case of any cable or connection failures.
• Depth Rating: Designed for deep-sea operations, the bulkhead connector is rated for depths of up to 160 meters (240 PSI), making it ideal for professional underwater cinematography.
• Marine-Grade Durability: Constructed with marine-grade aluminum and coated with hard anodizing, this connector offers excellent corrosion resistance and long-term durability in harsh underwater environments.
• Compatibility: The DNC-2067 bulkhead connector is fully compatible with the DNC-1104 power cable (sold separately), allowing for a seamless power connection from the surface to the underwater camera.

Overview:

The DNC-2067 Underwater Power Bulkhead Connector is engineered to provide stable power for the RED DSMC2 camera in underwater environments using the Nauticam Weapon LT housing. The system allows filmmakers to power the camera from the surface, avoiding the need for internal batteries, which is especially useful for long underwater shoots.

This connector features adjustable voltage capabilities, ranging from 1.2V to 24V, and supports a maximum current of 20A, making it versatile enough to power other high-consumption devices as well. The built-in water block system ensures that the housing stays sealed, even during power cable connections and disconnections.

Applications:

• Underwater Cinematography: Ideal for powering the RED DSMC2 during long filming sessions, enabling extended shooting without the hassle of frequent battery changes.
• High-Current Power Transfer: Provides a high-current power supply via the 3-pin XLR connector, making it suitable for professional camera setups that require significant power input.
• Deep-Sea Exploration: Designed for operations at depths of up to 160 meters, this bulkhead connector is perfect for deep-sea documentary filmmaking and marine research.

Connector Specifications:

• Voltage Range: 1.2V to 24V DC (adjustable)
• Current Output: Up to 20A
• Connector Material: Marine-grade aluminum with hard anodizing for corrosion resistance
• Depth Rating: 160 meters (240 PSI)
• Thread Size: M16x1 with a 6mm thread length (custom thread lengths available for other housing types)
• Contacts: Gold-plated brass for reliable conductivity
• Protective Cap: Included to safeguard the connector when not in use

Water Block System:

The DNC-2067 is designed with a built-in water block, which prevents water from entering the housing even during cable connection or disconnection. This feature is essential for maintaining the vacuum seal within the housing when using the AirLock Vacuum System, ensuring the safety of your camera equipment in underwater environments.

Power Supply Recommendations:

For best performance, pair the DNC-2067 with the Core SWX Cube 24 Industrial Power Supply (200W, 24V), which provides sufficient power for long-distance power transmission to the RED camera.

Customization Options:

• Custom Thread Lengths: Available for specific underwater housings, such as Aquatica/Amphibico housings, with options for a long M16 thread (12.7mm).
• Custom Cable Lengths: The power cable length can be customized to suit your underwater filming needs.

Outline Drawing

Outline dimensions drawing for Underwater Power feed bulkhead connector M16 with Short thread.
