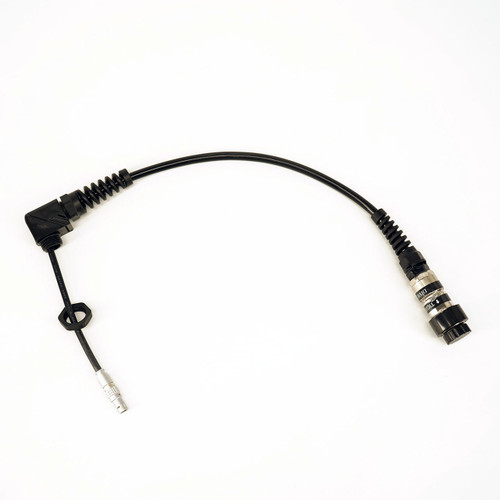

DNC-1179 LBUS Cable Assembly for Waterproof Bulkhead Connectors
The DNC-1179 is a professional assembled LBUS cable designed to connect ARRI LBUS-compatible devices to a Dive And See waterproof LBUS bulkhead connector system. It is built for professional cinema, underwater housing integration, remote lens control, and custom underwater camera systems.
Overview
The DNC-1179 LBUS Cable Assembly is a finished cable assembly for professional ARRI LBUS and lens-control applications. One side connects to an LBUS-compatible device using a 4-pin LEMO connector. The other side connects to a compatible waterproof LBUS bulkhead connector, allowing LBUS communication to pass through an underwater housing or sealed enclosure.
This cable is useful when a camera, lens motor, or control device must be integrated into a waterproof housing while maintaining a clean and reliable LBUS connection. It is not a generic cable; it is a purpose-built assembly for professional underwater cinema and remote lens-control systems.

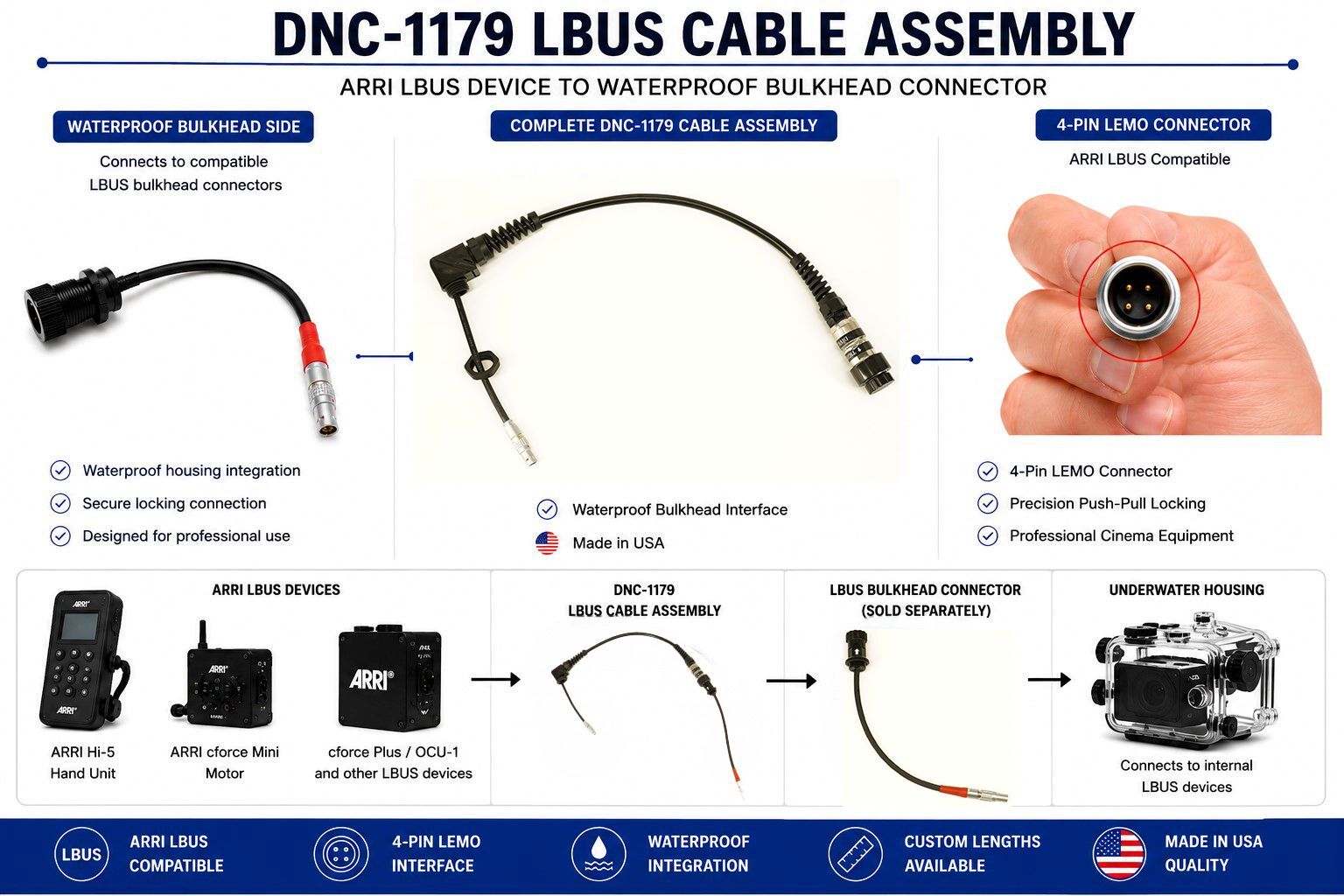

Diagram A — How DNC-1179 Works
The diagram below shows the basic workflow: ARRI LBUS device → DNC-1179 cable assembly → waterproof LBUS bulkhead connector → underwater housing integration.
Key Benefits
- Professional LBUS interface: Designed for ARRI LBUS-compatible devices and lens-control systems.
- 4-pin LEMO connector: Provides a professional locking connection for cinema equipment.
- Waterproof bulkhead integration: Connects to a compatible Dive And See LBUS waterproof bulkhead connector.
- Finished cable assembly: Ready to integrate into a professional housing or control system.
- Compact routing: Short internal and external cable sections help reduce clutter inside camera housings.
- Custom configurations available: Cable length and connector configuration can be adjusted for special projects.
- Assembled in USA: Built for professional Dive And See underwater systems.
Specifications
| Product Model | DNC-1179 |
| Product Type | Assembled LBUS cable for waterproof bulkhead connector systems |
| Interface | ARRI LBUS-compatible interface |
| Device-Side Connector | 4-pin LEMO connector |
| Bulkhead Side | Waterproof connector interface for compatible Dive And See LBUS bulkhead connectors |
| External Length | 12 in / approximately 30 cm |
| Internal Length | 3.5 in / approximately 9 cm |
| Application | ARRI LBUS, remote lens control, underwater housing integration, professional cinema systems |
| Customization | Custom cable lengths and connector configurations available on request |
| Assembly | Assembled in USA |
Applications
The DNC-1179 is designed for professional underwater and sealed-housing systems that require LBUS communication through a waterproof bulkhead connector.
- ARRI LBUS lens-control integration
- ARRI Hi-5 / hand unit support workflows
- ARRI cforce Mini and cforce Plus motor applications
- OCU-1 and other LBUS-compatible device integration
- Underwater cinema camera housings
- Remote focus, iris, and zoom control systems
- Professional camera housing modifications
- Custom underwater film production systems
Compatibility
The DNC-1179 is intended for systems using ARRI LBUS-compatible equipment and compatible Dive And See waterproof LBUS bulkhead connectors.
- DNC-2120 Waterproof LBUS Bulkhead Connector (recommended companion product)
- ARRI LBUS-compatible lens-control devices
- ARRI cforce Mini motor systems
- ARRI cforce Plus / OCU-1 LBUS setups
- ARRI Hi-5 related LBUS workflows
- Custom underwater housings requiring LBUS pass-through integration
Important: Always confirm the exact connector type, pin configuration, and system wiring before ordering. LBUS systems must be configured correctly to avoid communication issues or equipment damage.
What Is Included
- DNC-1179 assembled LBUS cable
- 4-pin LEMO device-side connector
- Waterproof bulkhead-side connector interface
- External 12 in / 30 cm cable section
- Internal 3.5 in / 9 cm cable section
Waterproof bulkhead connector is sold separately unless specified in the order configuration.
Important Notes
System compatibility note: LBUS cable assemblies must match the correct device, connector type, and wiring configuration. Please contact Dive And See before ordering if you are unsure about compatibility with your ARRI LBUS system or underwater housing.
Waterproof connection note: Before underwater use, verify that all waterproof connector coupling nuts are fully tightened by hand. Do not use pliers or tools. Improper tightening may allow water intrusion and cause equipment damage.
FAQ
What is the DNC-1179 used for?
It is used to connect ARRI LBUS-compatible devices to a waterproof LBUS bulkhead connector system, allowing LBUS communication to pass through an underwater housing or sealed enclosure.
Is this a complete cable assembly?
Yes. The DNC-1179 is an assembled cable with a 4-pin LEMO connector on one side and a waterproof bulkhead-side interface on the other side.
Is the waterproof bulkhead connector included?
The waterproof bulkhead connector is normally sold separately unless the order configuration specifically includes it.
Can the cable length be customized?
Yes. Custom lengths and connector configurations may be available for special ARRI LBUS and underwater housing projects.
Can this be used with ARRI cforce motors?
It is designed for ARRI LBUS-compatible systems, including workflows involving cforce motors. Final compatibility depends on the complete system configuration.
Is this cable for consumer cameras?
No. This product is intended for professional cinema, ARRI LBUS, lens-control, and waterproof housing integration applications.
