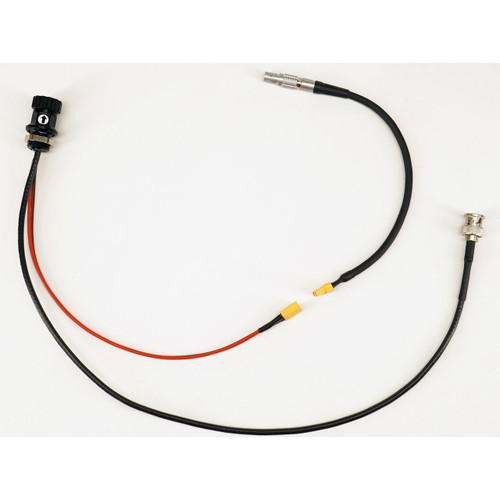

DNC-2190 M16 SDI / Power Bulkhead Connector with Interchangeable 2-Pin LEMO or D-Tap

DNC-2190 M16 SDI / Power Bulkhead Connector with Interchangeable 2-Pin LEMO or D-Tap

The DNC-2190 is a professional panel-mount SDI and power bulkhead connector designed for underwater housings, splash bags, remote camera systems, inspection setups, ROV platforms, marine research systems, broadcast rigs, and custom production builds.

It combines 3G-SDI video transmission with flexible external power routing in one compact M16 panel-mount solution, allowing you to build clean, reliable, and serviceable camera systems in demanding environments.

The connector features an M16x1 extended thread with security nut, making it ideal for thicker walls, splash bag panels, and custom aluminum or composite housings. It is designed for users who need a dependable way to pass both SDI video and power through a housing wall or panel without compromising serviceability.

The power side supports interchangeable configurations, including 2-pin LEMO 0B (ARRI-style) and D-Tap, giving flexibility across different camera systems, batteries, transmitters, monitors, and field workflows.

Key Benefits

• SDI video and power in one compact bulkhead connector
• Interchangeable 2-pin LEMO or D-Tap power options
• Extended M16x1 thread for thick panels and custom builds
• Security nut included for reliable installation
• 3G-SDI support up to 1080p60
• Service-friendly removable power lead design
• Built for underwater, wet, industrial, and mobile production environments

Why This Product Is Different

The DNC-2190 is designed for real-world production and engineering workflows where both video and power must pass through a housing wall cleanly, safely, and reliably.

Unlike a simple SDI feed-through, this solution gives you a more practical system design:

• Run SDI video (BNC) to the surface or external equipment
• Power your camera or device through LEMO or D-Tap
• Switch between different power ecosystems without redesigning the whole setup
• Use one robust connector format across multiple builds and applications

This makes the DNC-2190 ideal for professionals who need equipment that works reliably not just in the workshop, but also in the field, offshore, on location, or far from immediate technical support.

Main Features

• Bulkhead Type: M16x1 panel-mount SDI / power bulkhead
• Thread: Extended M16x1
• Mounting: Security nut included
• Video: 3G-SDI up to 1080p60
• Video Connector: BNC
• Power Options: 2-pin LEMO 0B or D-Tap
• Internal Cable Length: 40cm standard, 50cm available on request
• Optional Adapter Cable: Female 2-pin LEMO 0B to Male D-Tap
• Installation Concept: removable / reconnectable power lead for easier installation through M16 openings
• Assembly: Custom built in USA

Flexible Power Configuration

The DNC-2190 can be configured with a 2-pin LEMO 0B male connector, a power style commonly used in professional camera and accessory workflows. This makes it useful for systems built around cameras, wireless transmitters, monitors, recorders, and other equipment that rely on compact professional power connections.

For additional flexibility, an optional short adapter cable can be supplied with a Female 2-pin LEMO 0B connector on one end and a Male D-Tap on the other. This gives the user the option to power the same system either from a camera-side 2-pin output or from a D-Tap battery source such as a V-Mount or Gold Mount setup.

This interchangeable approach is especially useful for operators who work across multiple cameras or production environments and want one dependable connector system instead of multiple one-off solutions.

Typical Applications

• Underwater camera housings with SDI output and external power feed
• Scubacam splash bags and similar splash-proof camera systems
• Remote broadcast and live production camera setups
• ROV and marine research platforms requiring HD video and continuous power
• Industrial inspection systems for tanks, pipelines, hulls, and submerged structures
• Aquatic sports filming and training analysis
• Custom engineering builds for cameras, transmitters, monitors, and battery systems
• Laboratory, robotics, and technical field systems requiring compact SDI/power panel connections

Compatibility

• M16x1 housing ports and custom M16 panels
• Compatible with custom 3G-SDI / BNC cable systems, such a DNC-1158
• 3G-SDI / BNC cable systems
• 2-pin LEMO 0B power systems
• D-Tap battery systems
• Professional cameras, monitors, recorders, and wireless transmitters

Custom Options

• Custom internal cable length
• Custom adapter cable length
• LEMO or D-Tap termination
• Combined interchangeable configurations
• Custom SDI cable setups
• Special builds for splash bags, housings, and one-off systems

Built for Real-World Reliability

Professional users often travel far from home and work in harsh places where equipment simply must perform. In underwater production, offshore operations, scientific expeditions, remote inspections, and cold-weather deployments, there may be no easy replacement and no second chance once the system is assembled.

That is why the DNC-2190 is positioned not as a generic connector, but as a reliable field-ready component for serious working systems. The goal is simple: when the customer opens the case, connects the cables, and powers up the rig, the system should work with confidence and without unwanted surprises.

Important Tightening Warning

Before submerging or using in wet conditions, verify that the coupling nut is fully tightened by hand. Do not use pliers or tools. After tightening, the connection must feel solid as a single unit. When moving the cable, there should be no movement or play in the connector or connection. Improper tightening may result in flooding or equipment damage.

What Is Included

• DNC-2190 bulkhead connector
• Extended M16 thread body
• Security nut
• SDI BNC lead
• Power lead in selected configuration
• Optional adapter cable depending on selected build

Need a custom version?
Contact us for custom cable lengths, connector options, and application-specific modifications. We build practical SDI and power bulkhead solutions for underwater, industrial, scientific, and broadcast applications.
