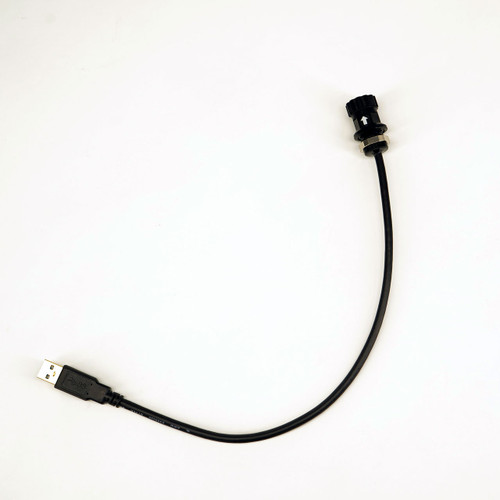

DNC-2029 Underwater USB 3.0 Type-A Bulkhead Connector for Camera Tethering and Data Transfer
Professional underwater USB Type-A bulkhead connector for camera tethering, remote control, Live View operation, and high-speed data transfer through M16 underwater camera housings.
Overview
Underwater USB Connectivity Without Opening Your Housing
The DNC-2029 is a professional underwater USB 2.0 / USB 3.0 Type-A bulkhead connector designed to pass USB communication through a sealed underwater housing while maintaining a reliable waterproof connection. It allows cameras, industrial imaging systems, and other USB devices to remain protected inside the housing while providing external access for tethering, remote control, Live View, image review, and data transfer.
Designed for M16x1 threaded ports and standard 16 mm openings, the DNC-2029 is a practical solution for professional underwater housings used in photography, cinematography, inspection, marine research, aquariums, and OEM imaging systems.
Key Benefits
- USB 2.0 / USB 3.0 Type-A connection for camera control, tethering, and data transfer.
- M16x1 bulkhead design for installation into M16 threaded ports or 16 mm openings.
- 12.7 mm / 0.5 inch thread length for secure mounting in compatible housings.
- Water Block Technology helps maintain vacuum integrity and adds protection against water ingress.
- Gold-plated brass contacts support stable electrical contact and corrosion resistance.
- Marine-grade aluminum body with hard anodizing coating for professional underwater use.
- 24 AWG stranded conductors support dependable USB signal transmission.
- Open-face pressure rated to 100 meters / 160 PSI for demanding underwater environments.
- Protective cap included to protect the connector when not connected to an external cable.
- Custom cable lengths and connector options are available for camera, housing, or OEM requirements.
Why It Is Different
Unlike generic waterproof connectors or simple cable penetrators, the DNC-2029 is built specifically for underwater camera housings and professional imaging systems. The connector is designed to provide a clean USB interface through the housing wall while helping preserve the safety and sealing integrity of the complete underwater system.
The integrated Water Block Technology helps protect the housing side of the system if the external cable or wet connection is damaged. Combined with a marine-grade aluminum body, hard anodizing coating, and gold-plated contacts, the DNC-2029 is made for reliable field use in harsh underwater environments.
Compatibility Ecosystem
The DNC-2029 is part of the Dive And See underwater USB connector and cable ecosystem. It can be used with compatible Dive And See USB cable systems, depending on the required USB version, cable length, and camera or device configuration.
- DNC-1030 USB 3.0 Fiber Optical Tethering Cable
- DNC-1035 USB Extension Cable
- DNC-1031 Underwater USB Cable
Typical system compatibility includes DSLR cameras, mirrorless cameras, industrial USB cameras, scientific imaging systems, USB sensors, underwater laboratory systems, and OEM underwater platforms.
Outline Drawing
Outline dimensions drawing for the DNC-2029 underwater USB bulkhead connector with M16x1 long thread.
Important USB System Note
USB performance depends on cable length, camera model, USB mode, connected device, computer, software, and power requirements. For longer tethering distances, active USB extension, fiber USB, or a custom Dive And See USB cable solution may be required. We recommend confirming the complete system configuration before ordering.
Custom Options
- Custom external cable lengths
- Alternative USB connector configurations
- Internal camera-side cable assemblies
- OEM integration solutions
- Custom housing installations
- Special USB tethering systems for scientific, industrial, and broadcast applications
Tightening Warning Before Submersion
Before placing the housing underwater, always verify that the external cable coupling nut is fully tightened by hand. Do not use pliers or tools. The connector and cable should feel like one solid assembly with no looseness or movement.
An incorrectly tightened underwater connector can cause water ingress, flooding, or permanent equipment damage. Always inspect the connector, O-rings, cable connection, and sealing surfaces before submerging the system.
What Is Included
- DNC-2029 underwater USB 2.0 / USB 3.0 Type-A bulkhead connector
- Protective cap
- Mounting hardware when applicable
- Integrated Water Block protection system
Need a Custom USB Tethering Solution?
Contact Dive And See with your camera model, housing model, USB requirements, and required cable length. We can help build a complete underwater USB tethering, control, or data-transfer system for professional imaging, inspection, research, aquarium, and OEM applications.
Specifications
| Product Model | DNC-2029 |
| Product Type | Underwater USB Bulkhead Connector |
| Connector Type | USB Type-A |
| USB Version | USB 2.0 / USB 3.0 |
| Signal Type | USB data, camera control, tethering, Live View, file transfer |
| Mounting Thread | M16x1 |
| Thread Length | 12.7 mm / 0.5 inch |
| Installation Opening | M16 threaded port or 16 mm opening |
| Housing Material | Marine Grade Aluminum with Hard Anodizing Coating |
| Contact Material | Gold-plated brass |
| Conductor Size | 24 AWG stranded conductors |
| Water Protection | Built-in Water Block Technology |
| Pressure Rating | 100 meters / 160 PSI open-face pressure rating |
| Protective Cap | Included |
| Compatible Cable Systems | DNC-1030, DNC-1035, DNC-1031 and custom Dive And See USB cable systems |
| Custom Options | Custom cable lengths, camera-side connectors, OEM configurations |
Applications
Professional Underwater Camera Tethering
The DNC-2029 allows cameras inside underwater housings to connect to computers or control stations for tethered operation, Live View monitoring, image review, and file transfer when supported by the camera and software.
Remote Camera Control
Use the USB connection for supported camera control workflows, including camera settings adjustment, image review, file access, and control software operation without opening the underwater housing.
Scientific Imaging Systems
Ideal for marine biology, oceanographic research, environmental monitoring, underwater laboratories, and scientific imaging platforms where USB communication must pass through a sealed housing.
Industrial Inspection Systems
Suitable for underwater inspection cameras, pipeline inspection equipment, test tanks, ROV support systems, and custom industrial imaging systems that require USB data or control access.
Aquarium and Educational Installations
Provides reliable USB communication for aquarium camera systems, public display tanks, educational exhibits, and temporary or permanent underwater imaging installations.
OEM Integration
The DNC-2029 can be integrated into custom underwater housings, scientific instruments, industrial systems, and specialized camera platforms. Dive And See can support OEM projects with custom cable lengths, connector configurations, and internal wiring solutions.
FAQ
Is the DNC-2029 compatible with USB 3.0?
Yes. The DNC-2029 supports USB 2.0 and USB 3.0 applications when used with compatible cables, devices, and system configurations.
Can I use the DNC-2029 for camera tethering?
Yes. It is commonly used for underwater camera tethering, remote control, Live View, image review, and data transfer when supported by the camera and control software.
What depth is the DNC-2029 rated for?
The DNC-2029 is open-face pressure rated to 160 meters / 230 PSI.
What housing ports does it fit?
The connector is designed for M16x1 threaded ports and many standard 16 mm housing openings.
Which Dive And See cables are commonly used with it?
Compatible Dive And See USB cable systems may include DNC-1030, DNC-1035, DNC-1031, and custom USB cable configurations depending on the required length and application.
Can custom cable lengths be supplied?
Yes. Dive And See can provide custom cable lengths and connector configurations for specific cameras, housings, and underwater systems.
Can it be used for industrial or scientific USB devices?
Yes. In addition to camera systems, the DNC-2029 can be used for compatible industrial USB cameras, scientific imaging systems, USB sensors, and OEM underwater equipment.
Do I need to tighten the external cable before submersion?
Yes. Always verify that the external cable coupling nut is fully tightened by hand before placing the system underwater. Do not use tools. The cable and connector should feel like a single solid assembly with no looseness.
