Underwater bulkhead connector M16x1 Long thread, LBUS for ARRI Alexa Mini, SDI for Live View

Lemo 4 pins connector M16 Long thread LBUS Surface, SDI Live View

$494.00
SKU:
DNC-2138
Availability:
For international shipping please contact us. Lead time 6-8 days after payment
Shipping:
$42.00 (Fixed Shipping Cost)

DNC-2138

Underwater bulkhead connector M16x1 Long thread, LBUS for ARRI Alexa Mini, SDI for Live View

  • DNC-2138, is a bulkhead connector for Salty, Nauticam LCS surface cable for ALEXA MINI, with Data and 3G SDI coaxial cables
  • Gives you the capability to transmit SDI signal 1080p60 from underwater camera Arri Alexa Mini (BNC connector) and control LBUS over Data cabel (Lemo 4 pins connector) 100 feet from the surface
  • Support SMPTE 424M standard, with 2.970 Gbit/s, and 2.970/1.001 Gbit/s bitrates of 1080p60 video format
  • Bulkhead connectors fit into M16x1 threaded port

Brief Description

LBUS Connector for ARRI Alexa Mini designed for Salty, Nauticam LCS surface cable for ALEXA MINI, with Data and 3G SDI coaxial cables gives you the capability to transmit SDI signal 1080p60 from underwater camera Arri Alexa Mini (BNC connector) and control LBUS over Data cabel (Lemo 4 pins connector) your camera over 100 feet from the surface. Applications: To control camera functions of Arri Alexa Mini, focus, iris, and/or zoom from a distance, such as when shooting handheld or using a stabilizer, gimbal or crane, using ARRI WCU-4 controller, and monitoring SDI video streaming of the Arri camera.
DNC-2124 support SMPTE 424M standard, with 2.970 Gbit/s, and 2.970/1.001 Gbit/s bitrates of 1080p60 video format.
These underwater bulkhead connectors fit into M16x1 threaded port or 0.625" (16mm) hole through, and have built in water block, which is allowing to keep vacuum inside of your underwater housing, depth - 240 PSI (160 meters).
Easy to install over 16mm port on your housing.

Compatibility

Compatible with cables DNC-1147

Compatible with Salty underwater housings

Water Block

Submersible Connector comes with a built-in water block. Think of it as a guardian that keeps your underwater space sealed tight, especially when you're using the AirLock Vacuum System. It also prevents any water accidents if something goes wrong with your cables or connections.

LEMO 4 pin connector

LBUS Lemo 4 pin connector and Live View SDI Connection

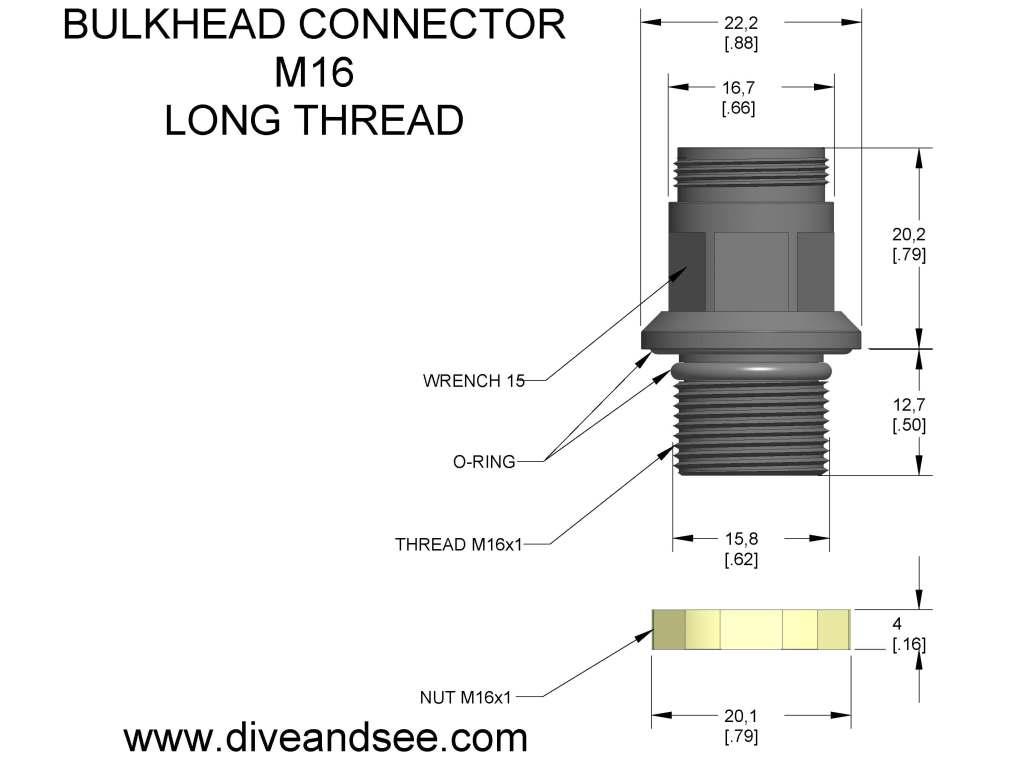

Outline Drawing

If you're into details, we've got an outline drawing for you. It gives you the specifics of the DNC-2138, so you can plan with precision.

Bulkhead connector M16x1 long thread with security nut
