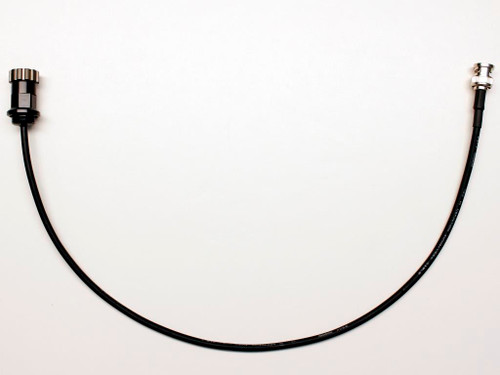

Underwater SDI bulkhead connector M16 for Gates AX700, Z90V housing

* Underwater SDI bulkhead connector is designed to transmit from the SDI output of Sony PXW- Z90V 4K Camcorder
* Compatible with Gates AX700 / Z90 housing
* Bulkhead connector have water block, which is allowing to keep vacuum inside of your underwater housing
* Depth - 240 PSI (160 meters)
* Contacts: Gold plated, brass
* Protective cap is included
* Material: Marine Aluminum with Hard Anodizing coating

Brief Description

We have developed a bulkhead connector to transmit 3G SDI signal for Gates housing.
Connector fits into 16mm port of the underwater housings Gates AX700 / Z90.
Thread of the connector M16x1, the length of the thread is 6mm (0.25 inches).

Sony-PXW-Z90VSony PXW Z90V SDI Output BNC connector

Water Block

Underwater Bulkhead connector comes with the built-in water block.
The water block keeps the vacuum inside of the housing when using the AirLock Vacuum System.
Also protect the housing against penetration of the water, if something happening with external cable or connection between external cable and bulkhead connector.


Custom length of the cable is available.


Bulkhead connector DNC-2070 is compatible with any Dive And See SDI monitors and SDI cables.

Outline Drawing

Available threads for this bulkhead connector:
For Nauticam housings - M16x1 short thread.
For Aquatica/Amphibico housings - M16x1 long thread with security nut.

Outline dimensions
