DNC-2072: Waterproof M16 Bulkhead Connector for GPS, RFID, WLAN, and WiFi Antennas

Key Features:

• High-Frequency Application: The DNC-2072 waterproof bulkhead connector is designed for high-frequency signal transmission in devices like GPS, RFID, WLAN, WiFi, WiMax, and LMR systems.
• Marine-Grade Construction: Made from marine-grade aluminum with a hard anodizing coating, this connector is built to withstand harsh environments and resist corrosion, making it ideal for use in both marine and underwater applications.
• Water Block System: Equipped with a built-in water block, the connector ensures that the vacuum inside underwater housings remains intact, protecting against water ingress even in high-pressure conditions.
• Depth Rating: Capable of operating at depths of up to 160 meters (240 PSI), this connector is suitable for deep-sea and underwater use.
• Gold-Plated Contacts: The connector features gold-plated brass contacts, ensuring excellent conductivity and reliable signal transmission.
• Compatible Cables: Fully compatible with Dive And See cables, including models DNC-1040 and DNC-1144.

Overview:

The DNC-2072 Waterproof Bulkhead Connector is specifically engineered for high-frequency applications, including GPS, RFID, WLAN, and WiFi antennas. Its M16x1 threaded port and dual sealing O-rings ensure a secure and waterproof connection, making it ideal for use in underwater housings. The built-in water block system adds an extra layer of protection, maintaining the vacuum inside the housing even in the event of external cable disconnections.

This bulkhead connector is constructed from marine-grade aluminum and finished with a hard anodizing coating for maximum durability in saltwater and marine environments. Its gold-plated contacts offer superior electrical conductivity, making it the perfect solution for transmitting high-frequency signals in marine antennas, GPS systems, and other RF-based applications.

Applications:

• GPS Systems: Provides reliable signal transmission for GPS antennas in underwater or marine environments.
• RFID and WiFi Networks: Designed for use with RFID systems and WiFi/WLAN antennas, ensuring efficient signal transmission with minimal loss.
• LMR and Mobile Antennas: Ideal for Land Mobile Radio (LMR) systems and mobile antenna setups, ensuring clear communication in high-frequency environments.
• WiMax and WISP Systems: Supports WiMax and Wireless Internet Service Providers (WISP), making it suitable for outdoor wireless networks and broadband access.

Specifications:

• Thread Size: M16x1 with dual O-ring sealing for secure installation
• Depth Rating: Operates at depths of up to 160 meters (240 PSI)
• Contacts Material: Gold-plated brass for enhanced conductivity
• Connector Material: Marine-grade aluminum with hard anodizing for corrosion resistance
• Protective Cap: Included, along with a low-profile security nut for added protection

Water Block System:

The DNC-2072 bulkhead connector features an advanced water block system that prevents water ingress into underwater housings, even during cable connections and disconnections. This system ensures that the housing vacuum is maintained, providing extra security for sensitive equipment in deep-sea environments.

Compatibility:

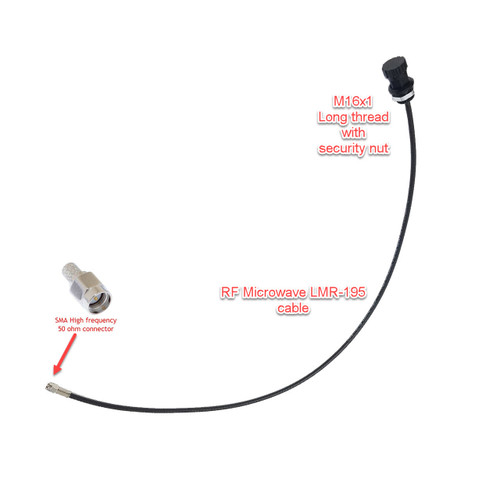

• Compatible Cables: Works with Dive And See cables such as DNC-1040 and DNC-1144 for seamless integration with high-frequency devices.
• Customizable Options: Custom lengths of cables and different types of surface-end connectors are available based on your specific project requirements.

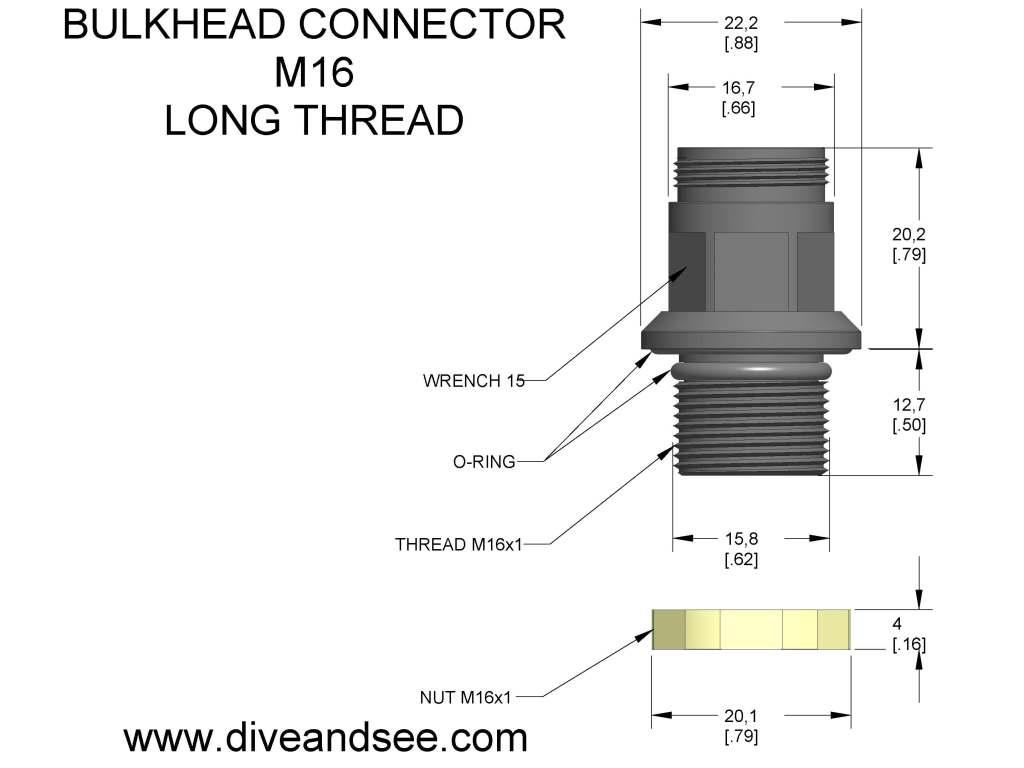

Outline Drawing:

Outline dimensions drawing for Underwater bulkhead connector M16 with Long thread.
