Ethernet/SDI M16  connector for Z CAM, RED, Live View with Remote control

Ethernet/SDI M16 connector for Z CAM, RED, Live View with Remote control

$390.00
SKU:
DNC-2126
Availability:
For international shipping please contact us. Lead time 6-8 days after payment

DNC-2126

Underwater Ethernet/SDI 16mm Bulkhead connector for Z-CAM, RED Comodo or similar cameras

* Underwater Ethernet/SDI bulkhead connector gives you full remote-control over many settings of the camera
* Enables SDI output from your Z CAM for recording or viewing
* Z Cam Ethernet port for live view, control, and file transfer to browser or a computer running Z CAM software
* Live stream via its Gigabit Ethernet por
* Gigabit Ethernet port for camera control, setting & live streaming

Brief Description

Uwater bulkhead connector comes with two cables: One is CAT6, fitted with RJ-45 connector on the end, Second coaxial SDI cable with BNC connector.
This connectors fit into M16 threaded port such a Nauticam, Salty, Aquatica housing or 16mm threaded port.
Full remote-control of camera over many settings, when using The FoolControl App
For installation: BNC and Ethernet connectors pass through 16mm opening of your waterproof housing

Water Block

Underwater Bulkhead connector DNC-2126 comes with the built-in water block.
The water block keeps the vacuum inside of the housing when using the AirLock Vacuum System.
Also protect the housing against penetration of the water, if something happening with external cable or connection between external cable and bulkhead connector.

Options

Custom length of the cable and different type of connectors are available.

Compatibility

Bulkhead connector is compatible with DNC-1038.

SDI/Ethernet cable to control/ Live View Z Cam, RED

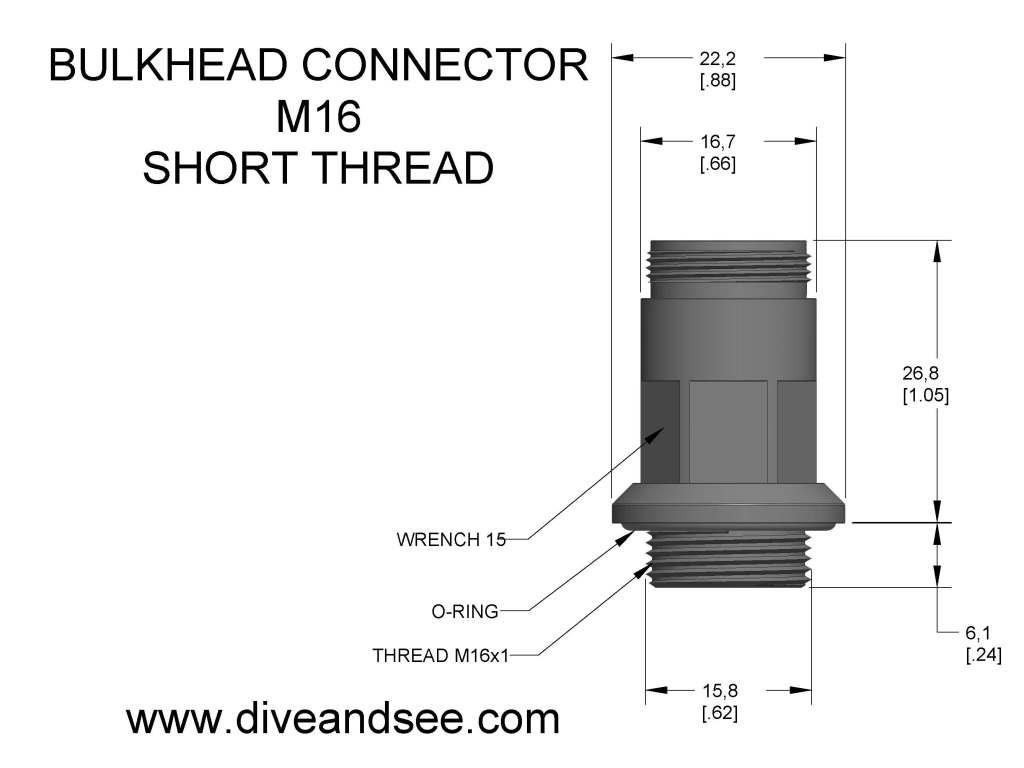

Outline Drawing

Drawing M16 underwater connector
