Underwater connector M16 with 4 Data wires and 2 Power wires

Underwater connector M16 with 4 Data wires and 2 Power wires

$360.00
SKU:
DNC-2075
Availability:
For international shipping please contact us. Lead time 6-8 days after payment

DNC-2075

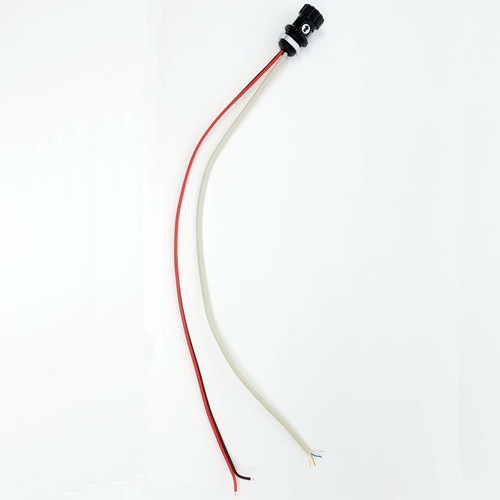

Underwater Bulkhead connector M16x1 with 4 Data wires plus 2 Power wires

  • DNC-2075, is a bulkhead connector with 4 Data wires plus 2 Power wires (two twisted pairs 24 AWG Solid copper)
  • These underwater bulkhead connectors fit into M16x1.0 threaded port or 0.625" (16mm) hole through
  • Material: Marine Aluminum with Hard Anodizing coating
  • Bulkhead connector has a water block, which is allows you to keep a vacuum inside of your underwater housing
  • Contacts: Gold plated, brass
  • Custom length and other connector types are available
  • Depth - 240 PSI (160 meters) Compatible with cable DNC-1111

Brief Description

We have developed a bulkhead connector for custom application.
Maine advantage of this connector:
Send Power to the camera from the surface.
Four Data wires allowed you to use for different applications, such a Trigger for Strobe
Tread of the connector M16x1, thread length is 0.5 inch.

Water Block

Uwater Bulkhead connector comes with the built-in water block.
The water block keeps the vacuum inside of the housing when using the AirLock Vacuum System.
Also protect the housing against penetration of the water, if something happening with external cable or connection between external cable and bulkhead connector.

Options

The custom length of the cable is available.

Compatibility

Bulkhead connector DNC-2075 compatible with cable DNC-1111

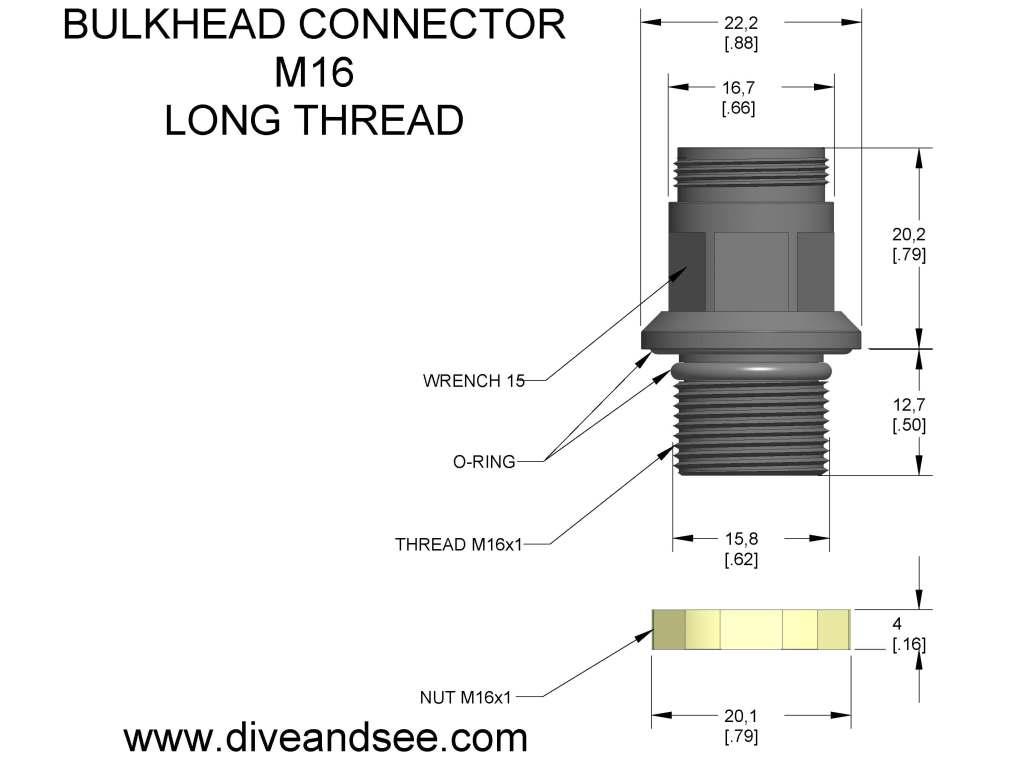

Outline Drawing

Outline dimensions drawing for Underwater bulkhead connector M16 with Long thread.

outline dimensions underwater hdmi bulkhead connector M16
