DNC-2106

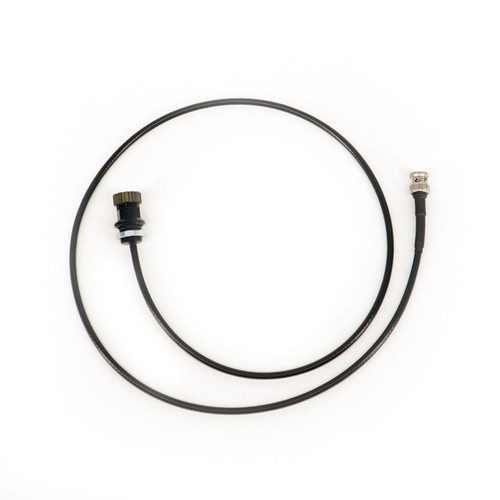

Scubacam splash bag SDI Panel mount M16 connector, waterproof, fully submersible
- SDI underwater bulkhead connector with thread M16x1
- Bulkhead connector have water block, which is allowing to keep vacuum inside of your underwater housing
- Material: Marine Aluminum with Hard Anodizing coating
- The protective cap and security nut are included
- Operation depth - 240 PSI (160 meters)
Brief Description
We developed bulkhead connector for Scubacam splash bag. which is solved current issues with LEMO connectors.
New bulkhead connector fully submersible and waterproof.
LEMO connector is not waterproof, as result if splash bag gets heavy splashes or humidity, overtime - water penetrate into connector ad destroy it.
Our bulkhead connect compatible with Scubacam connector panel.
Simply remove your current SDI Female connector, and install into 16mm port new DNC-2106 bulkhead connector, and secure from inside with provided M16 nut.
Compatibility
Bulkhead connector is compatible with SDI cables DNC-1062 DNC-1061 DNC-1033
Water Block
Uwater Bulkhead connector comes with the built-in water block.
The water block keeps the vacuum inside of the housing when using the AirLock Vacuum System.
Also protect the housing against penetration of the water, if something happening with external cable or connection between external cable and bulkhead connector.
Options
Custom length of cable is available.
Outline Drawing
Outline dimensions drawing for Underwater HDMI bulkhead connector M16 with Long thread.
