DNC-2154
Combo Swivel M16 SDI Bulkhead Connector with Removable D-Tap Power
- Bulkhead Connector: M16 SDI Power
- Cable Length: 300mm
- Power Source: Compatible with D-Tap power
- Design Feature: Removable D-Tap power connection
- Application: Suitable for underwater setups requiring SDI and power connections
- Durability: Designed for reliable operation in underwater environments

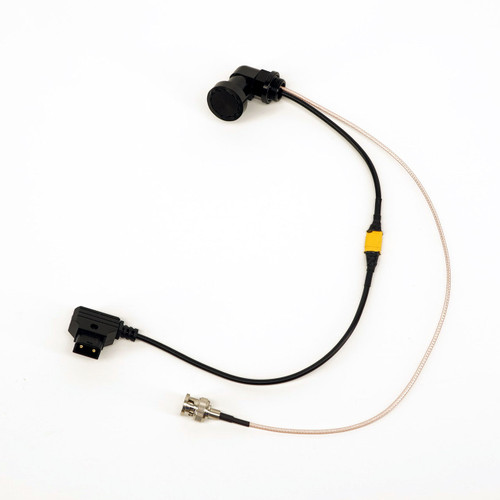

This bulkhead connector is an excellent solution for transmitting SDI (1080p60) signals and supplying power to your underwater device. It features an M16 thread with a BNC connector and a D-tap male connector. To facilitate easy installation through the 16mm port, the D-tap connector can be disconnected and reconnected using a smaller connector. The BNC connector passes through the threaded M16 port, ensuring a secure and efficient setup.
Compatibility
The DNC-2154 Underwater Bulkhead Connector is compatible with DNC-7B-S1 Marine Monitor
Applications
-
Underwater Video Recording:
- SDI Camera Integration: Connects underwater SDI cameras to external recording devices, ensuring high-quality video transmission (1080p60) for professional underwater filming.
- Power Supply: Provides power to underwater cameras or other devices via the D-Tap connector, eliminating the need for internal batteries and allowing extended recording sessions.
-
Marine Research:
- Scientific Equipment: Used to connect underwater scientific instruments and sensors that require both SDI signal transmission and power supply, facilitating data collection in marine research projects.
- Submersible ROVs: Integrates with remotely operated vehicles (ROVs) to transmit live video feeds to the surface for monitoring and analysis.
-
Diving Expeditions:
- Live Streaming: Enables live streaming of underwater explorations by connecting cameras to streaming equipment on the surface, providing real-time video feeds for educational and entertainment purposes.
- Documentation: Assists in documenting underwater discoveries and marine life by supplying continuous power and video signal transmission to the recording equipment.
-
Inspection and Maintenance:
- Infrastructure Inspection: Utilized in underwater inspections of pipelines, ship hulls, and other submerged structures, allowing for detailed video documentation while supplying power to the inspection cameras.
- Maintenance Operations: Supports maintenance activities by providing a reliable connection for video monitoring and power supply to underwater tools and devices.
-
Aquatic Sports Coverage:
- Sports Events: Used to capture high-definition footage of underwater sports events, such as swimming or diving competitions, by connecting cameras to broadcasting equipment.
- Training Analysis: Assists coaches and athletes in analyzing performance by providing high-quality video feeds from underwater cameras during training sessions.
-
Environmental Monitoring:
- Habitat Surveillance: Monitors underwater habitats and ecosystems by connecting cameras to recording and power equipment, aiding in environmental conservation efforts.
- Pollution Control: Helps in detecting and documenting pollution levels in water bodies, supporting efforts to maintain clean and safe aquatic environments.
Outline Drawing
Outline dimensions drawing for Underwater Swivel bulkhead connector M16 with Short Thread.
