DNC-2163
M16 3G-SDI + Power Bulkhead Connector with Removable D-Tap

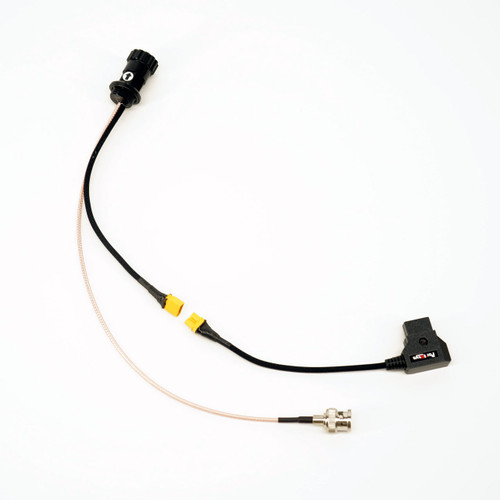

The DNC-2163 is the camera-side M16 underwater bulkhead connector for the Dive And See 3G-SDI + power cable system. It passes SDI video signal and D-Tap power through the housing wall and connects externally to the DNC-1158 underwater cable.
This connector is designed for underwater camera housings that need a reliable 3G-SDI 1080p60 video connection and an internal D-Tap power connection. The removable D-Tap lead makes installation easier because the large D-Tap connector does not need to pass through the M16 port as one complete piece.
Key Features
- Camera-side connector: Designed for the camera housing / D-Tap power side of the system.
- Signal support: Supports 3G-SDI video signal, including 1080p60 workflows.
- Power connection: Includes a removable D-Tap male power connector for internal housing power connection.
- M16 bulkhead thread: Installs through an M16 threaded port on a compatible underwater housing.
- SDI connection: Includes BNC connector for SDI video signal.
- Quick-disconnect design: The internal D-Tap power lead can be disconnected for easier routing through the M16 port.
- System compatibility: Connects externally to the DNC-1158 combo 3G-SDI + power underwater cable.
Why the Removable D-Tap Matters
A D-Tap connector is too large to pass through many M16 housing ports. The DNC-2163 solves this by using an internal quick-disconnect design. The smaller cable section can pass through the M16 port first, and the D-Tap connector can then be reconnected inside the housing without soldering, rewiring, or complicated installation work.
How This Connector Fits the Complete System
- DNC-2163: Installs on the camera housing / D-Tap power side.
- DNC-1158: External underwater cable that connects the camera-side and monitor-side bulkhead connectors.
- DNC-2164: Installs on the Portkeys BM5 III WR monitor housing side.
Compatibility
The DNC-2163 is compatible with the DNC-1158 combo 3G-SDI + power underwater cable.
For a complete underwater SDI + power connection between a camera housing and a Portkeys BM5 III WR monitor housing, use DNC-2163 together with DNC-1158 and DNC-2164. Each component is sold separately, allowing customers to replace or add individual parts as needed.
Best Use
The DNC-2163 is best used in underwater camera housings where both SDI signal and D-Tap power need to pass through an M16 bulkhead port. It is especially useful for professional underwater video systems using an external Portkeys BM5 III WR monitor housing connected through the DNC-1158 underwater cable.
Outline Drawing
Outline dimensions drawing for underwater M16 bulkhead connector with short thread.
