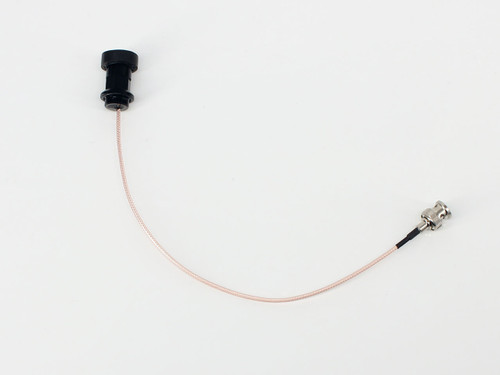

DNC-2030 3G-SDI Bulkhead Connector for Underwater Housings – M16 Port, 160m Depth Rating
Product Description:
The DNC-2030 Underwater 3G-SDI Bulkhead Connector is designed for the transmission of high-definition video signals from underwater camera housings. Featuring an M16x1 thread, this connector is built for reliable HD-SDI and 3G-SDI video transmission in underwater environments. Compatible with housings from Nauticam, Salty, and more, it is ideal for connecting HD-SDI cameras to external monitors or recording equipment.
This bulkhead connector features a built-in water block that ensures a vacuum seal inside the housing, preventing water ingress and protecting your gear in challenging marine environments. With a depth rating of 160 meters (240 PSI), the DNC-2030 is perfect for deep-sea video projects, telemetry systems, and other high-definition video-based underwater equipment.
Purpose & Benefits:
- High-Definition Video Transmission: Transmits HD-SDI 1080p60 video with support for 3G-SDI, ensuring clear, reliable video feeds from underwater camera setups.
- Depth Rating: The connector is rated to operate at depths of up to 160 meters (240 PSI), making it suitable for deep-sea filming and underwater photography.
- Water Block Protection: The integrated water block ensures that your housing remains sealed and dry, even if an issue occurs with the external cable or bulkhead connection.
- Marine-Grade Durability: Constructed from marine-grade aluminum with a hard anodizing coating, the DNC-2030 is highly resistant to saltwater corrosion and built to last in underwater conditions.
How to Use:
- Install the DNC-2030 into the M16x1 port of your underwater housing, ensuring a secure fit.

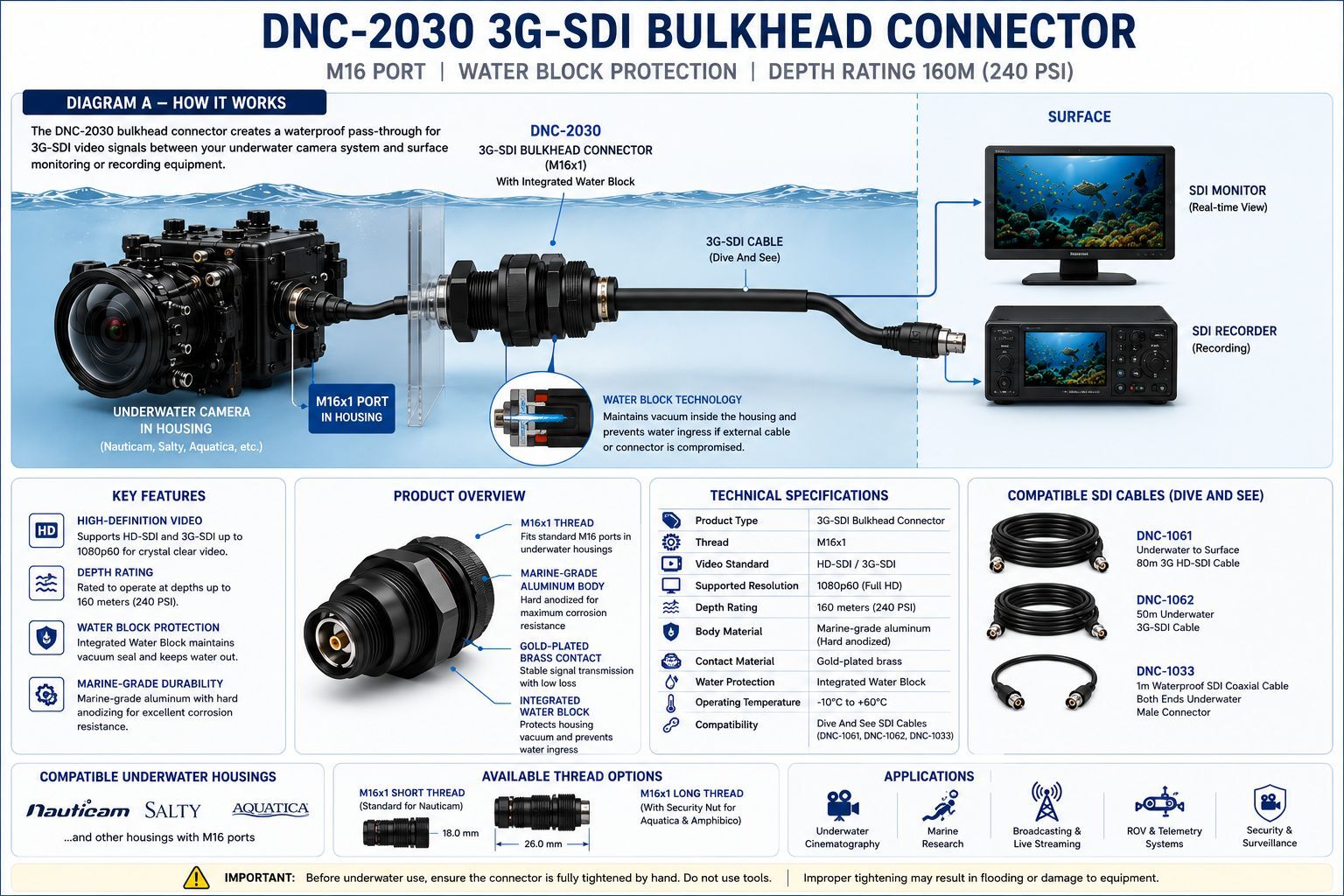

- Connect the 3G-SDI cable from your camera to the bulkhead connector for live video transmission to external equipment.
- Use the built-in water block to maintain a vacuum seal inside the housing, keeping the camera protected and dry.
Key Features:
- M16x1 Thread: Fits standard M16 ports in underwater camera housings like Nauticam, Salty, and more.
- 3G-SDI Compatibility: Supports HD-SDI and 3G-SDI transmission for up to 1080p60 video resolution.
- Water Block Technology: Keeps water out and maintains a vacuum inside the housing.
- Material: Made from marine-grade aluminum with a hard anodizing coating for durability and corrosion resistance.
- Depth Rating: Rated for use at depths of up to 160 meters (240 PSI).
Applications:
- Underwater Cinematography: Use for real-time HD video transmission from underwater cameras to external monitors or recording systems during deep-sea film shoots.
- Marine Research: Ideal for underwater research and surveys where high-definition video transmission is needed.
- Broadcasting: Perfect for live-streaming underwater footage in broadcast-quality video with minimal signal loss.
- Security & Surveillance: Can be used with submersible IP cameras for real-time underwater monitoring.
Compatibility:
- Works with underwater housings from brands like Nauticam, Salty, and Aquatica.

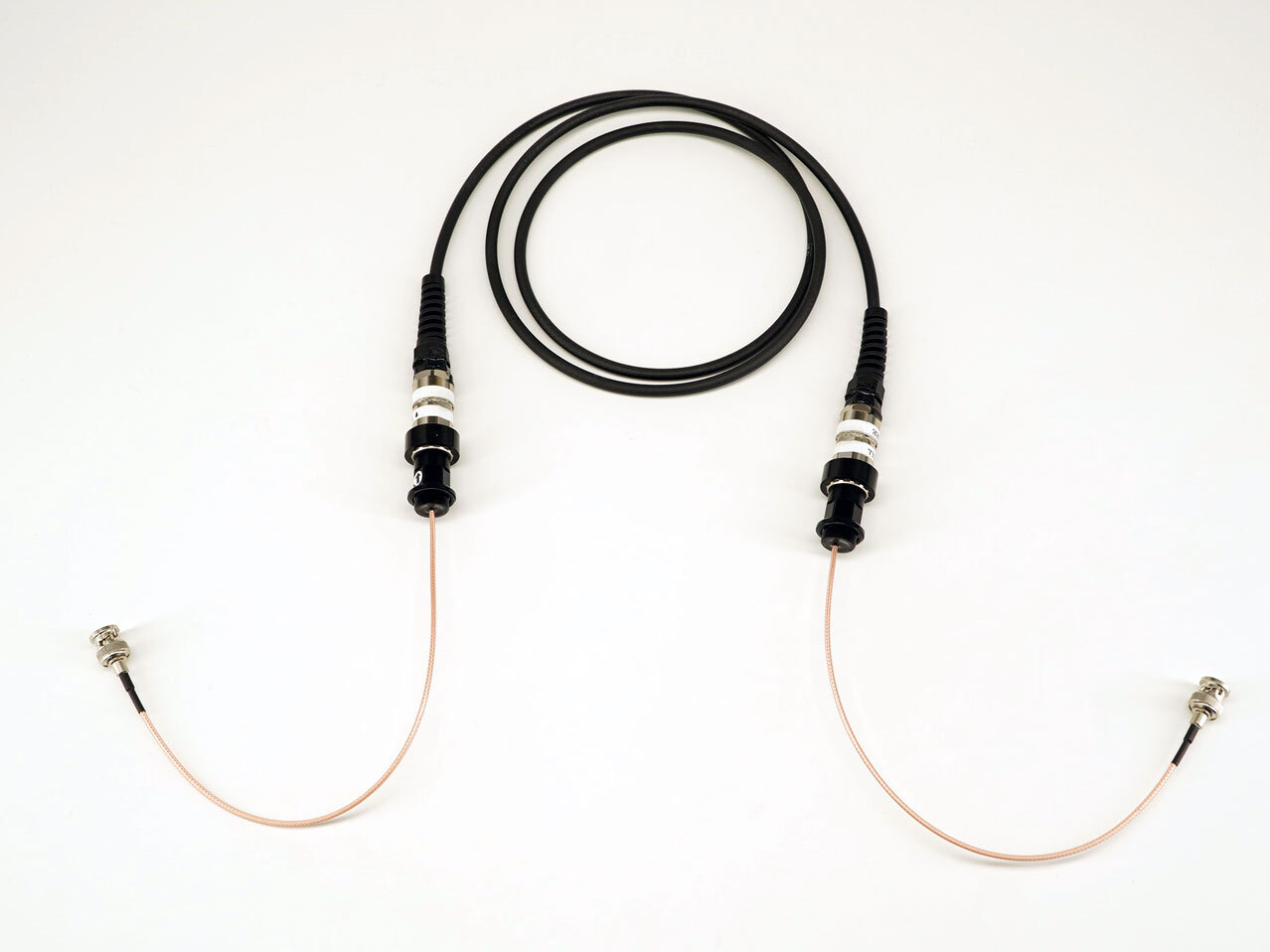

- Compatible with 3G-SDI cables like the DNC-1061, DNC-1062, DNC-1033.
Customization Options:
- Available with custom lengths and different connector types to fit specific project requirements.
- Compatible with various housing ports, offering short thread for Nauticam and long thread for Aquatica/Amphibico.
The DNC-2030 3G-SDI Bulkhead Connector is the perfect solution for professionals who need high-quality video transmission in underwater environments. With its built-in water block, robust construction, and compatibility with a wide range of underwater housings, it ensures reliable and water-tight connections at depths up to 160 meters.

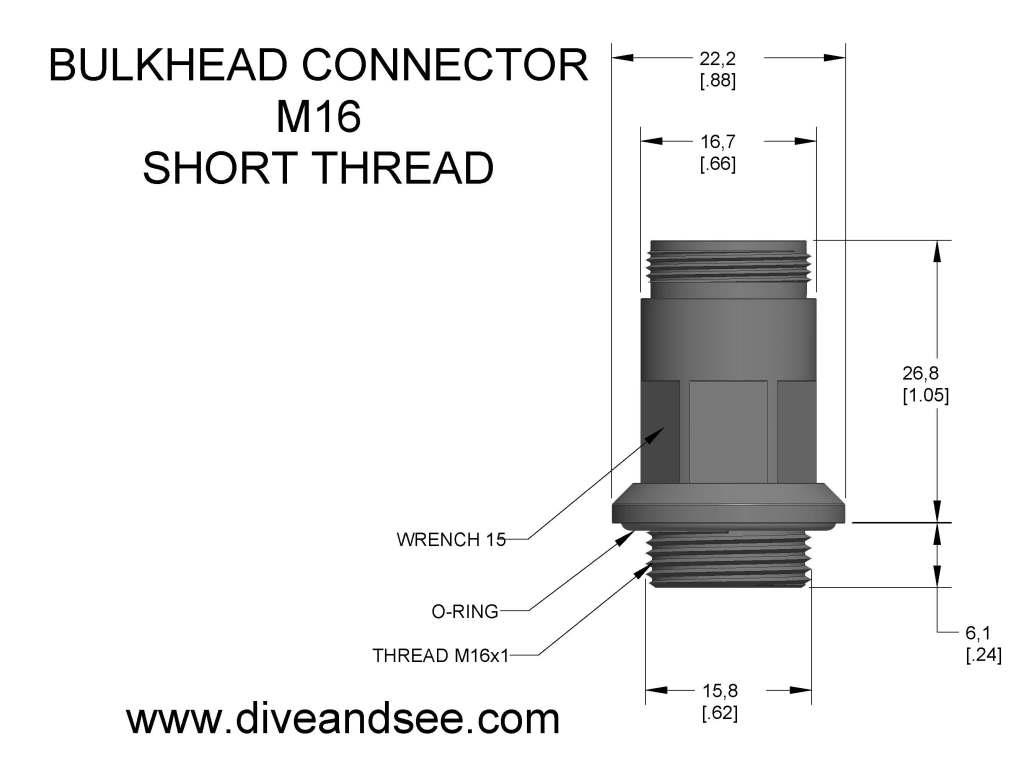

Outline Drawing
Available threads for this bulkhead connector:
For Nauticam housings - M16x1 short thread.
For Aquatica/Amphibico housings - M16x1 long thread with security nut.
