Uwater Power/Ethernet connector M16x1

Uwater Power/Ethernet connector M16x1

$395.00
SKU:
DNC-2099
Availability:
Free Standard Shipping to USA. For international shipping please contact us. Lead time 6-8 days after payment
Shipping:
Free Shipping
Custom Made:
Assembled in USA

DNC-2099

Uwater Bulkhead connector M16x1 with Power and Ethernet

  • DNC-2099, is a bulkhead connector with Ethernet plus Power XLR male (18AWG)
  • These underwater bulkhead connectors fit into M16x1.0 threaded port or 0.625" (16mm) hole through
  • Material: Marine Aluminum with hard anodizing coating
  • Bulkhead connector has a water block, which allows it to keep a vacuum inside of your underwater housing
  • Contacts: Gold plated, brass
  • Custom length and other connector types are available

Depth - 240 PSI (160 meters) Compatible with cable DNC-1121

Brief Description

We have developed a bulkhead connector for custom application.
Maine advantage of this connector: detachable XLR connector
To control over Ethernet and feed Power for the camera from the surface (detachable XLR connector, wires 18AWG).
Ethernet (Cat6)
Thread of the connector M16x1, thread length is 0.5 inch.

Water Block

Underwater Bulkhead connector DNC-2099 comes with the built-in water block.
The water block keeps the vacuum inside of the housing when using the AirLock Vacuum System.
Also protect the housing against penetration of the water, if something happening with external cable or connection between external cable and bulkhead connector.

Options

The custom length of the cable is available.

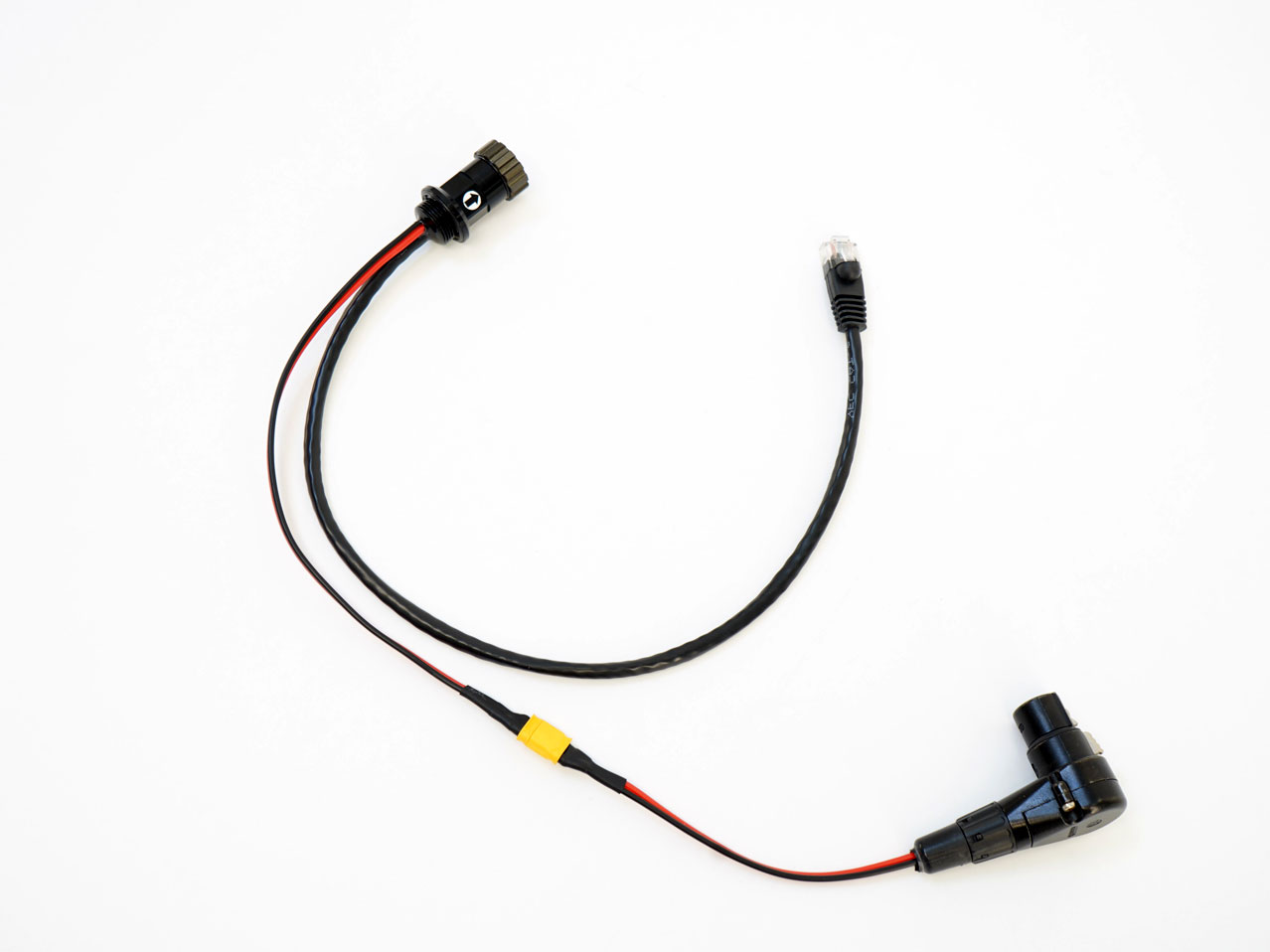

Power connector underwater with Female XLR and Ethernet



Compatibility

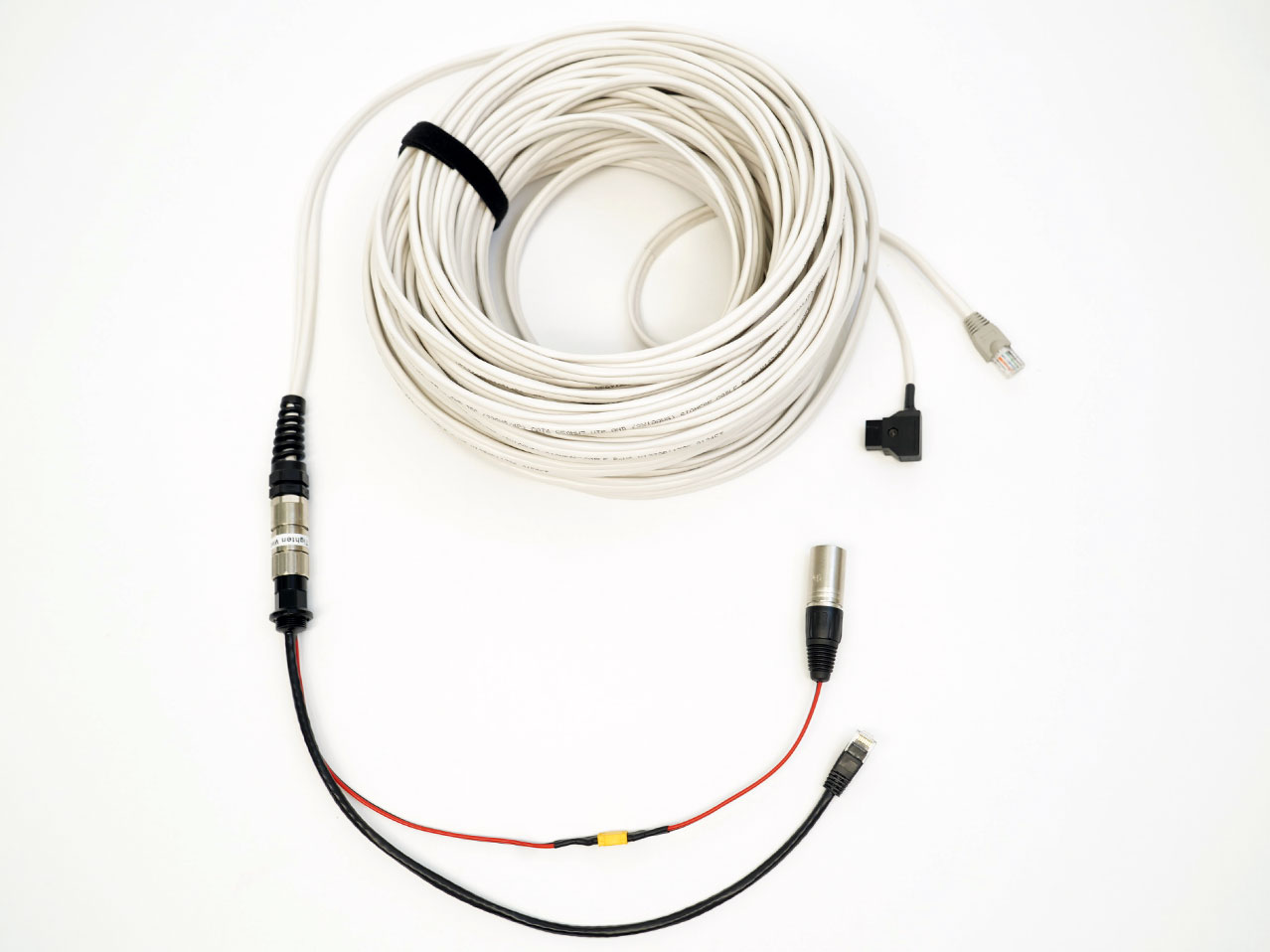

Bulkhead connector compatible with cable DNC-1121

DNC 1121 waterproof Ethernet cat5e plus power D-tap

Outline Drawing

Outline dimensions drawing for Underwater bulkhead connector M16.

outline dimensions underwater bulkhead connector M16
