DNC-4032
Monitor battery charger with D-Tap connector
This battery charger allows the charging of the Dive And See monitor, using external batteries with a D-Tap Output connector.
Multi ways to charge
How to Charge Your Dive And See Monitor
The DNC-4032 charger requires an external power source to charge your Dive And See monitor. The charger itself does not generate power and cannot transfer power from NP-F batteries installed in the charging slots to the monitor.
To charge the monitor:
- Connect an external power source to one of the charger inputs:
- D-Tap battery
- AC wall adapter (110V / 220V)
- 12V vehicle power outlet

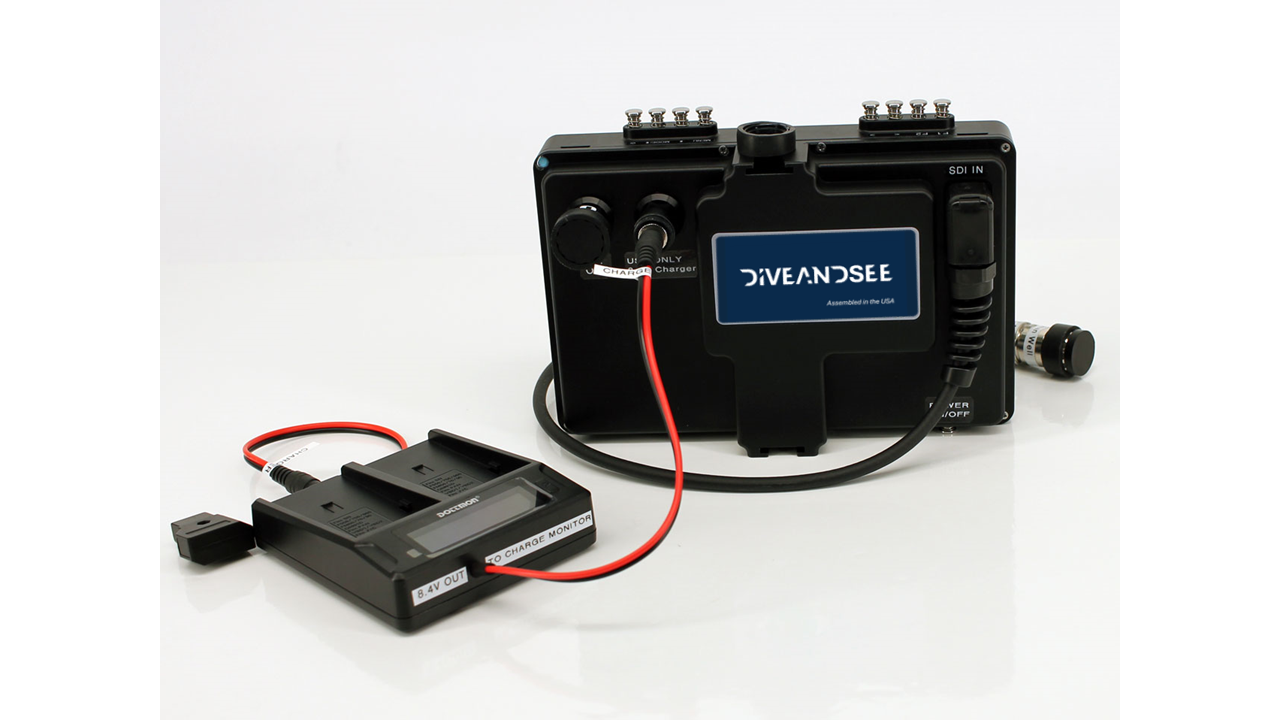

- Connect the charger's Output cable to the monitor charging port.
- The monitor battery will begin charging automatically.
Important: Installing Sony NP-F batteries into the charger slots will NOT charge the monitor. The NP-F slots are only intended for charging compatible Sony NP-F batteries when an external power source is connected to the charger.
This design allows the monitor to be charged from a wide variety of power sources, including professional V-Mount batteries, Gold Mount batteries with D-Tap outputs, AC wall power, or vehicle power systems.
Equipped with a US plug, Car Charger Adapter to meet different needs.

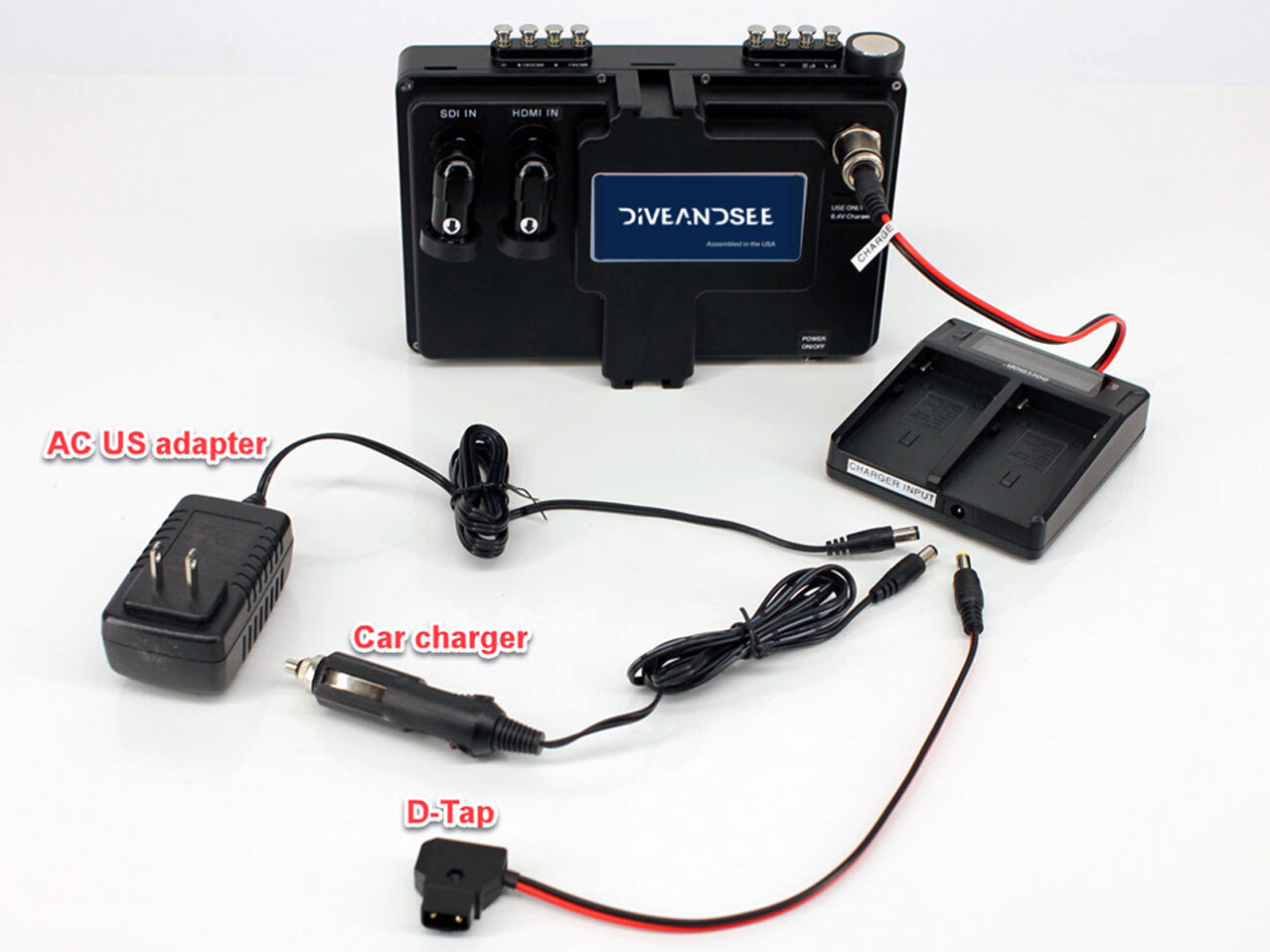

Use any of the three available inputs (D-Tap, AC adapter, or 12V car adapter) to provide power to the charger. The Output cable is used to charge the monitor.
Overcharge protection
Prevents the damaging effects of overheating and overcharging your rechargeable batteries
Three charging modes
Three charging current options are available (1A/1.5A/2A).
Compatible battery:
- Fit for SONY NP-F330 NP-F530 NP-F550 NP-F570 NP-F730 NP-F750 NP-F770 NP-F930 NP-F950 NP-F960 NP-F970 NP-FM50 NP-FM55H NP-FM500H NP-QM71 NP-QM91 NP-QM51D NP-QM71D NP-QM91D battery.
SPECIFICATIONS:
Input: DC12V 2A
Output: 8.4V±0.1V 1A/ 1.5A/ 2A*2
Size:120*91*22mm
