GoPro HERO13 Underwater HDMI Live View System | DNC-GP29

Overview

Long-Range GoPro HDMI Live View with External Power

The DNC-GP29 is a professional underwater GoPro housing system designed for long-distance HDMI live view, continuous external power, underwater inspection, marine research, aquaculture monitoring, pool and aquarium observation, and live streaming applications.

The main advantage of this system is its combination of a detachable underwater HDMI cable and a permanently attached external power cable. The HDMI cable can be disconnected and replaced in the field if it is damaged, while the power cable keeps the GoPro powered from the surface for extended operation.

This system can be configured with different cable lengths depending on the project. Available HDMI and power cable lengths include 10m, 30m, 45m, 60m, and 100m. The 100m configuration is the maximum standard cable length, but shorter versions are available for easier handling, lower cost, and smaller deployment areas.

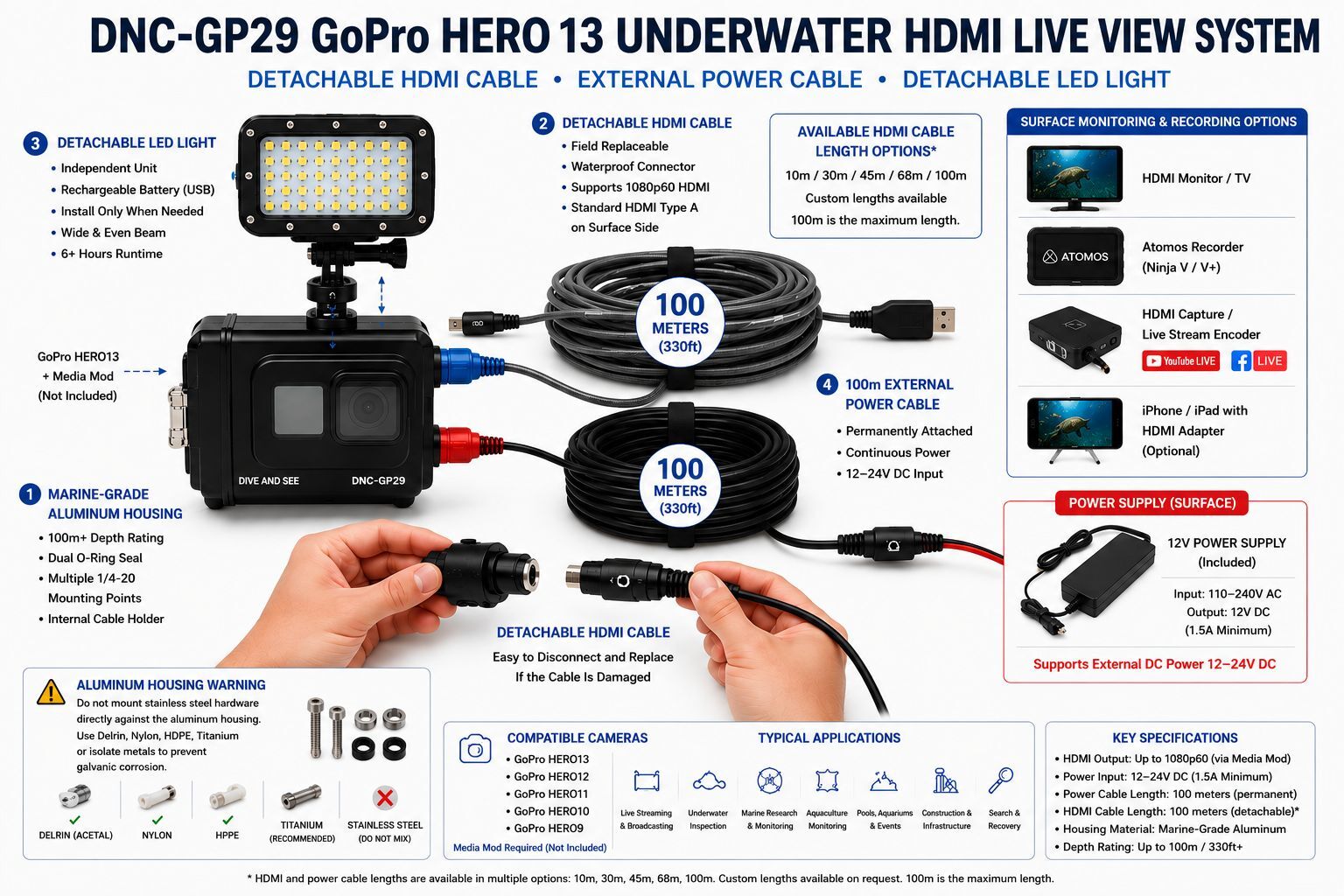

Diagram A — How DNC-GP29 Works

This diagram shows the DNC-GP29 workflow: GoPro HERO camera with Media Mod inside the underwater housing, detachable HDMI cable for live view, external power cable for continuous operation, detachable LED light, and surface connection to monitors, recorders, capture devices, and streaming encoders.

Diagram B — Detachable HDMI Cable Advantage

This diagram explains why the DNC-GP29 detachable HDMI cable is important for professional underwater work. If the HDMI cable is cut, crushed, worn, or damaged during transportation or deployment, the cable can be disconnected and replaced in the field without replacing the entire housing system.

Key Benefits

• Detachable HDMI cable: Field-replaceable cable design helps reduce downtime if the HDMI cable is damaged.
• Long-range HDMI live view: Send GoPro HDMI video to the surface for real-time monitoring, recording, and live streaming.
• External power cable: Power the GoPro from the surface for extended underwater operation.
• Multiple cable length options: Configure HDMI and power cable lengths from 10m to 100m depending on the project.
• Detachable LED light: Use the light when needed, or remove it when ambient light is sufficient.
• GoPro HERO13 compatible: Works with GoPro HERO13 / HERO12 / HERO11 / HERO10 / HERO9 when used with the correct GoPro Media Mod HDMI workflow.
• 1080p60 HDMI live view: HDMI output up to 1080p60 via GoPro Media Mod, depending on camera model, settings, and connected equipment.
• Marine-grade aluminum housing: Hard-anodized aluminum construction with dual O-ring sealing.
• 100m depth rating: Designed for professional underwater use to 100m / 330ft / approximately 145 PSI.

Why DNC-GP29 Is Different

Many GoPro underwater systems are designed only for short-distance use or internal camera recording. The DNC-GP29 is different because it is built for long-range surface monitoring. It allows the GoPro to remain underwater while HDMI video and external power are routed to the surface through dedicated underwater cables.

The most important feature is the field-replaceable HDMI cable. If the HDMI cable is damaged during transportation, deployment, commercial diving, inspection work, research, or live streaming, the cable can be replaced without sending the housing back for repair.

Custom HDMI and Power Cable Lengths

The DNC-GP29 does not have to be ordered only as a 100m system. The system can be configured with different cable lengths to match the real working distance of the project.

• 10 meters
• 30 meters
• 45 meters
• 60 meters
• 100 meters
• Custom lengths available on request

In most configurations, the HDMI cable length and power cable length are matched. Shorter cable versions are easier to handle and may be a better choice for pools, aquariums, tanks, docks, and controlled inspection environments. The 100m version is the maximum standard length for long-distance deployment.

Detachable Rechargeable LED Light

The LED light included with the DNC-GP29 is a fully independent and detachable unit. It can be installed when additional illumination is required or removed completely when ambient light is sufficient.

Many customers working in swimming pools, aquariums, clear shallow water, daylight inspection areas, or well-lit tanks use the housing without the LED light. This keeps the system more compact and lightweight while maintaining full HDMI live view and external power functionality.

• Fully detachable LED light
• Independent rechargeable battery
• USB charging cable included
• Wide and even beam pattern
• No hotspot
• Runtime over 6 hours depending on mode
• Can be installed or removed depending on the application

Important GoPro Media Mod Note

The GoPro Media Mod is required for HDMI output and USB-C power input. The GoPro camera and GoPro Media Mod are not included unless specifically ordered as part of a custom package.

Compatibility Ecosystem

• DNC-GP16 GoPro HERO13 Underwater HDMI Live View System
• DNC-GP23 GoPro HDMI + Power System
• DNC-7B Underwater Monitor
• DNC-7C Underwater Monitor
• DNC-5C Underwater Monitor
• HDMI Capture and Live Streaming Options

Typical Systems Using DNC-GP29

• Long-distance underwater inspection systems
• Boat hull, keel, and propeller inspection systems
• Commercial diving monitoring systems
• Aquaculture and fish farm monitoring systems
• Aquarium exhibits and live display systems
• Pool, swim meet, and sports monitoring systems
• Scientific and environmental research systems
• Underwater live streaming and broadcasting systems
• Search and recovery support systems
• Drop-camera and observation systems

Live View and Monitoring Options

With the GoPro Media Mod installed, the DNC-GP29 sends live HDMI video to the surface. The surface HDMI output can be connected to:

• External HDMI monitors and TVs
• Atomos recorders such as Ninja V / V+
• HDMI capture devices
• Live streaming encoders
• Compatible iPhone / iPad HDMI adapter workflows
• Projectors and video display systems

Specifications

Applications

Inspection and Commercial Diving

• Boat hull, keel, and propeller inspections
• Dock, marina, and piling inspections
• Underwater construction monitoring
• Commercial diving visual support
• Search and recovery visual confirmation

Research, Aquaculture, and Monitoring

• Marine biology observation
• Environmental research
• Aquaculture and fish farm monitoring
• Aquarium exhibits and live displays
• Long-duration underwater observation

Live Streaming and Event Production

• YouTube Live, Facebook Live, and private RTMP streaming
• Pool events and swim meets
• Underwater education and outreach
• Dive shop demonstrations
• Live video displays for visitors or operators

FAQ

What is the main advantage of the DNC-GP29?

The main advantage is the combination of a field-replaceable detachable HDMI cable, external surface power, long cable options up to 100m, and a detachable LED light.

Is the HDMI cable detachable?

Yes. The underwater HDMI cable is detachable and field-replaceable. If the HDMI cable is damaged, it can be replaced without sending the housing back for repair.

Is 100 meters the only cable length?

No. 100 meters is the maximum standard cable length. Shorter lengths such as 10m, 30m, 45m, and 60m are available. Custom lengths may also be available on request.

Does the power cable also change with cable length?

Yes. The power cable length can be matched to the selected system configuration. In the 100m configuration, the power cable is 100 meters and permanently attached to the housing.

Is the LED light permanently attached?

No. The LED light is a detachable independent unit. It can be installed when needed or removed when ambient light is sufficient.

Do I need the GoPro Media Mod?

Yes. GoPro Media Mod is required for HDMI output and USB-C power input.

What HDMI output does it support?

The system supports HDMI live view up to 1080p60 via GoPro Media Mod, depending on GoPro model, settings, and connected equipment.

Is the GoPro camera included?

No. The GoPro camera and GoPro Media Mod are not included unless specifically ordered as part of a custom package.

What depth is the housing rated for?

The housing is depth rated to 100 meters / 330 feet / approximately 145 PSI.

What Is Included

• DNC-GP29 marine-grade aluminum underwater housing
• Detachable underwater HDMI cable in selected length
• Permanently attached underwater power cable in selected length
• Universal 12V power supply, 110–240V AC input
• Detachable rechargeable LED underwater video light
• USB charging cable for LED light
• 1-inch ball mount
• Internal cable holder
• Spare O-ring and silicone lubricant
• Protective caps for connectors

GoPro camera and GoPro Media Mod are not included unless specifically ordered as part of a custom package.

Important Housing Sealing Warning

Before every dive or underwater use, carefully verify that the housing is fully closed and properly sealed. Make sure the O-ring sealing surfaces are clean and free from sand, hair, dust, water drops, cable fragments, or any foreign objects. Before closing the housing, confirm that no internal cable, wire, strap, or accessory is trapped between the two housing halves. Always inspect the O-rings, sealing surfaces, internal cable position, and housing closure before submerging the unit.

Mounting Material Warning

Do not mount stainless steel brackets, clamps, arms, or hardware directly against the anodized aluminum housing. In saltwater and chlorinated environments, stainless steel may accelerate galvanic corrosion of aluminum. For direct mounting contact, use Delrin / acetal, HDPE, nylon, or titanium. If stainless steel hardware must be used, isolate the metals using non-conductive washers, bushings, spacers, or mounting plates.
