DNC-GP31 Waterproof GoPro HERO13–9 External Power System – 164 ft (50 m)
DNC-GP31 is a waterproof external power housing system designed for GoPro HERO13 Black, HERO12 Black, HERO11 Black, HERO10 Black and HERO9 Black. Rated for underwater operation to 164 ft (50 meters), the system enables extended GoPro video recording using an external DC power source instead of relying solely on the camera's internal battery.
The system features a waterproof GoPro housing with an integrated short power pigtail and a specialized detachable underwater connector. The separately available DNC-1182 Submersible Power Cable connects the housing to an external DC power supply. Choose from 10 m, 30 m or 60 m cable lengths.
DNC-GP31 is suitable for underwater filming, marine operations, outdoor recording, research installations, boat-mounted cameras and long-duration video applications where frequent battery replacement is inconvenient or impractical.
Package Information: The base system includes the waterproof housing with integrated power pigtail and waterproof connector. External power cable, DC power supply and GoPro camera are sold separately.
Key Benefits
- GoPro HERO9–HERO13 Compatibility: Designed for five generations of GoPro HERO Black cameras.
- Waterproof to 164 ft (50 m): Suitable for underwater diving, marine filming, rain, splashing water and demanding outdoor environments.
- Extended Recording: External power supports long-duration operation without depending on the internal GoPro battery capacity.
- Detachable Waterproof Connection: Specialized underwater connector on a short housing pigtail allows connection to the separate DNC-1182 power cable.
- Selectable Cable Lengths: Compatible DNC-1182 cables are available in 10 m, 30 m and 60 m lengths, with custom lengths available upon request.
- Flexible Power Options: Supports approved external DC power configurations from 7.4 V to 24 V, depending on cable length and system configuration.
- Wi-Fi Camera Control: Above water, compatible GoPro wireless functions can be used for camera setup, monitoring and control.
- Multi-Camera Applications: Suitable for installations using multiple GoPro cameras to capture different viewing angles.
Why DNC-GP31 Is Different
Unlike conventional weatherproof GoPro power systems intended primarily for exposure to rain or splashing water, the DNC-GP31 is designed for fully submersible operation to 50 meters.
The waterproof housing incorporates an external power connection with a short pigtail and detachable waterproof connector. This allows the underwater power cable to be selected independently according to the required installation distance.
Compared with systems using permanently attached long cables, the detachable design simplifies transportation, installation, storage and cable configuration.
For applications requiring weatherproof external power without a submersible configuration, see the DNC-GP24 Weatherproof GoPro Power System.
GoPro Camera Compatibility
The DNC-GP31 waterproof housing is compatible with the following GoPro cameras:
- GoPro HERO13 Black
- GoPro HERO12 Black
- GoPro HERO11 Black
- GoPro HERO10 Black
- GoPro HERO9 Black
The camera retains its normal recording functions, with power supplied through the external cable. Video is recorded to the GoPro memory card using the camera's supported recording modes.
Technical Specifications
| Model | DNC-GP31 |
| Compatible Cameras | GoPro HERO13 / 12 / 11 / 10 / 9 Black |
| Maximum Operating Depth | 164 ft (50 m) |
| Power Type | Continuous External DC Power |
| External Input Voltage | 7.4–24 V DC, configuration dependent |
| Recommended Power Supply | 12 V DC for standard approved configurations |
| Housing Connection | Integrated Short Pigtail with Waterproof Connector |
| Compatible External Cable | DNC-1182 Submersible Power Cable (Sold Separately) |
| Cable Length Options | 10 m / 30 m / 60 m; Custom Lengths Upon Request |
| Surface Cable Termination | DC Female 5.5 x 2.1 mm / DC Male 5.5 x 2.1 mm / Open Wire Leads |
| Video Recording | Internal GoPro Memory Card |
| Wireless Functions | GoPro Wi-Fi / Bluetooth, Above Water and Subject to Camera Support |
How DNC-GP31 Works
- Install a compatible GoPro HERO camera inside the DNC-GP31 waterproof housing.
- Connect the housing's short waterproof pigtail to the compatible underwater connector on the DNC-1182 Submersible Power Cable.
- Route the cable to the surface or external power location.
- Connect the surface end to a compatible, correctly regulated external DC power source.
- Operate the GoPro using its normal camera functions and supported recording modes.
The DNC-GP31 external cable provides electrical power to the camera. It does not provide HDMI, SDI, Ethernet or wired video transmission.
Power Note: The supported external supply voltage depends on the approved cable length and system configuration. The stated 7.4–24 V range does not represent the voltage applied directly to the GoPro USB input. Confirm the appropriate supply voltage, polarity and power capacity before connecting.
DNC-1182 Submersible Power Cable – Sold Separately
The DNC-1182 Submersible Power Cable is specifically designed to connect the DNC-GP31 waterproof housing to a compatible external DC power source.
The cable features a detachable waterproof mating connector at the camera end and is available in three standard lengths:
- 10 m (32.8 ft): Short-distance underwater installations and nearby external power sources.
- 30 m (98.4 ft): Medium-distance marine observation and underwater recording.
- 60 m (196.9 ft): Long-distance external power routing and specialized camera installations.
Important: Cable length does not determine maximum operating depth. The DNC-GP31 housing is rated to 164 ft (50 m), regardless of the selected cable length.
Surface-End Connector Options
The DNC-1182 cable is available with three selectable surface-end termination options:
- Option 1 – DC Female Connector (5.5 x 2.1 mm): A standard female DC barrel jack for connection to a compatible male DC power plug.
- Option 2 – DC Male Connector (5.5 x 2.1 mm): A standard male DC barrel plug for connection to a compatible female DC output socket on a battery pack or regulated power supply.
- Option 3 – Open Wire Leads (No Connector): Unterminated red and black power wires for custom electrical connections, terminal blocks, OEM installations or customer-specified connectors.
Custom Engineering Applications: Open wire leads are particularly useful for OEM installations, marine electronics, research equipment and custom power distribution systems where a standard DC connector is not required.
Connector Compatibility: Before ordering, verify connector gender, 5.5 x 2.1 mm dimensions, voltage, polarity and power requirements of your external DC power source.
Important: Open wire leads must be properly terminated, insulated and protected by the installer. Standard surface-end DC barrel connectors and open wire leads are not waterproof unless appropriately protected or sealed.
View DNC-1182 Submersible Power Cable – Select Cable Length and Connector Options →
GoPro Wi-Fi Control and Multi-Camera Recording
When the camera operates above water and within supported wireless range, the GoPro's built-in Wi-Fi and Bluetooth capabilities can be used with compatible GoPro applications and devices.
This allows users to access supported camera functions without physically handling the housing, depending on camera model, firmware, wireless conditions and application capabilities.
Multiple DNC-GP31 systems can be positioned at different locations to capture several viewing angles during the same recording session.
Camera synchronization and simultaneous wireless control depend on the capabilities of the selected GoPro cameras and software. The DNC-GP31 external power system itself does not provide a separate camera synchronization or wireless data transmission function.
Wireless Limitation: Standard GoPro Wi-Fi and Bluetooth are not suitable for reliable underwater communication. Wireless operation should be planned for above-water installations.
Applications
- Underwater Diving: Video recording at depths up to 164 ft (50 m).
- Marine Filming: Boat-mounted cameras, coastal filming and splash-zone installations.
- Extended Video Recording: Applications where the internal GoPro battery does not provide sufficient operating time.
- Multi-Camera Recording: Multiple cameras positioned around an object, vehicle or recording area.
- Research and Observation: Marine research, underwater observation and scientific documentation.
- Outdoor and Extreme Activities: Recording in wet, rainy and demanding environments.
- Custom Engineering: Integration into specialized monitoring systems using customer-selected cable lengths and power connections.
Custom Configuration Options
Dive And See offers flexible configuration options for customers with specialized installation requirements.
- DNC-1182 underwater power cable lengths of 10 m, 30 m and 60 m.
- Custom cable lengths upon request.
- DC Female 5.5 x 2.1 mm connector at the surface end.
- DC Male 5.5 x 2.1 mm connector at the surface end.
- Open wire leads for custom electrical termination.
- External power supply selection based on cable length and installation requirements.
- Custom power integration for marine, industrial, research and OEM applications.
Contact Dive And See to discuss special cable lengths or custom electrical connection requirements.
Waterproof Connector Installation and Safety
Important: Before underwater use, inspect all sealing surfaces and ensure the waterproof connectors are fully mated and correctly tightened according to their installation requirements.
- Do not operate the system underwater with disconnected or improperly secured waterproof connectors.
- Keep connector sealing surfaces clean and free of sand, debris and damage.
- Do not connect or disconnect underwater unless the connector is specifically approved for wet mating.
- Do not lift, suspend or pull the camera assembly by the electrical cable or waterproof connector.
- Use appropriate cable strain relief and secure the cable independently when required.
- Keep the external power supply in an environment suitable for its own electrical and environmental ratings.
- Verify correct supply voltage and polarity before applying power.
What's Included – DNC-GP31 Base System
- DNC-GP31 Waterproof GoPro Housing – compatible with GoPro HERO13, HERO12, HERO11, HERO10 and HERO9 Black, rated to 164 ft (50 m).
- Integrated Short Power Pigtail – permanently connected to the housing and equipped with a specialized detachable waterproof connector.
Sold Separately – Not Included in the Base System
- DNC-1182 Submersible Power Cable – available in 10 m, 30 m and 60 m lengths with DC Male, DC Female or Open Wire Leads at the surface end.
- External DC Power Supply – 12 V DC recommended for standard approved configurations.
- GoPro HERO Camera – customer-supplied or purchased separately.
Important: The base system includes only the waterproof housing with its integrated power pigtail and waterproof connector. The DNC-1182 external cable and DC power supply are not included and must be selected separately for a complete external-power installation.

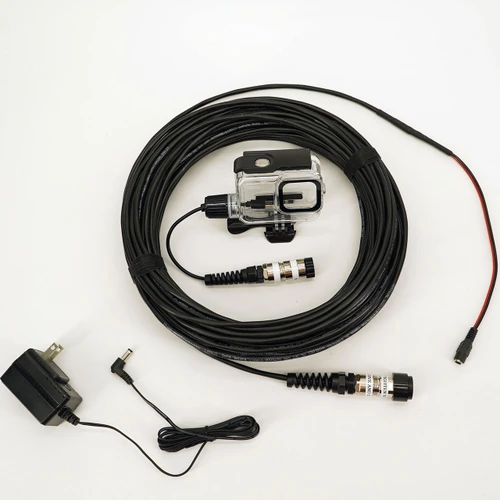

Product photographs may show the DNC-1182 cable, power adapter and GoPro camera for illustration purposes. These items are not included in the base system.
Build Your DNC-GP31 External Power System
Start with the DNC-GP31 waterproof housing, select the appropriate DNC-1182 Submersible Power Cable length and surface-end connector, and choose a compatible external DC power source.
Shop Compatible DNC-1182 Underwater Power Cable →
For custom cable termination, specialized power integration or OEM applications, contact Dive And See to discuss your requirements.
DNC-GP31 – Waterproof GoPro HERO13–9 External Power System, rated to 164 ft (50 m), engineered for extended recording and flexible underwater power connectivity.
